6-10 Troubleshooting Waveforms: Audio SSI
6.3.4 BCLK

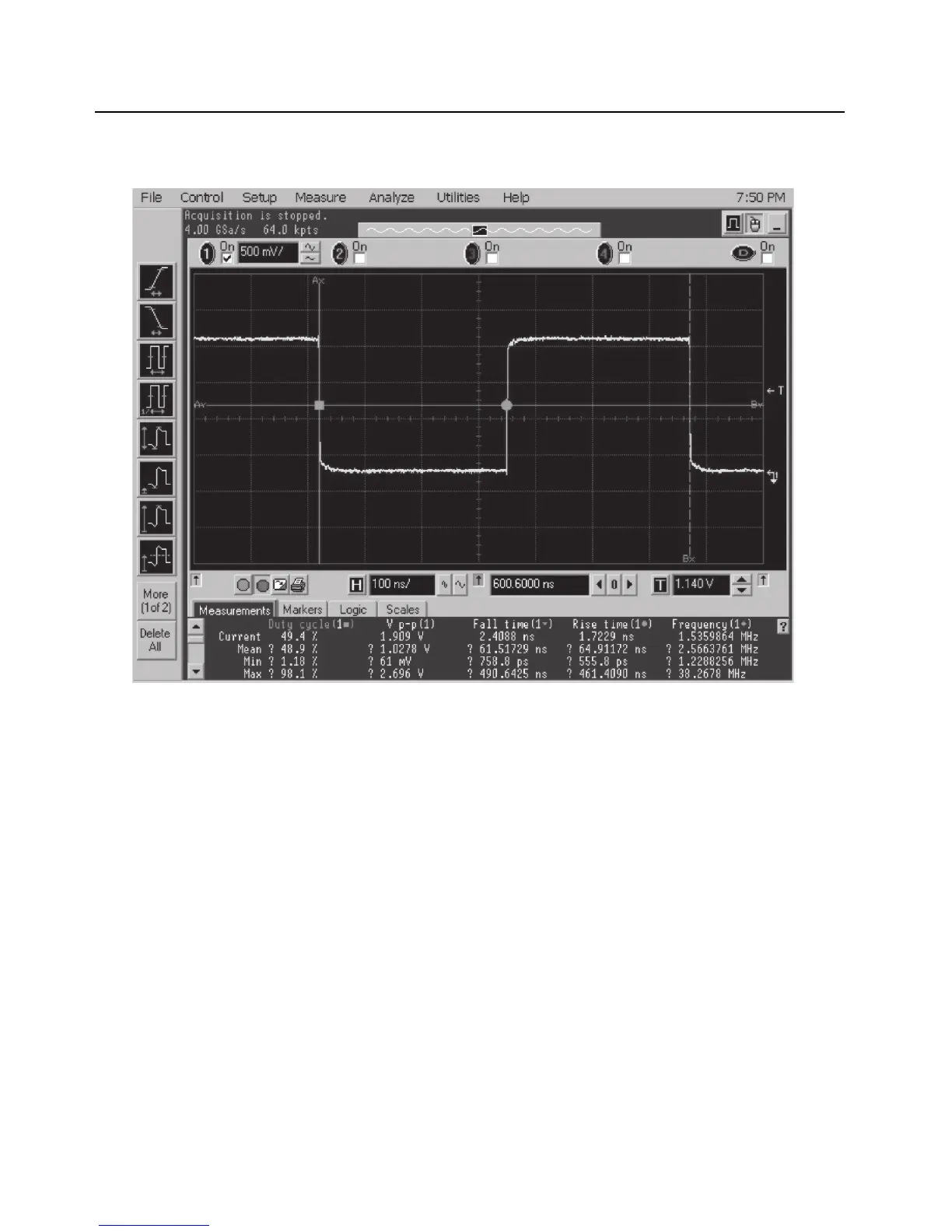

Trace 1: Trace recorded at R6107.
Figure 6-9. Audio SSI – BCLK. Waveform
