Troubleshooting Waveforms: SPI 6-17
6.6 SPI
6.6.1 CLK

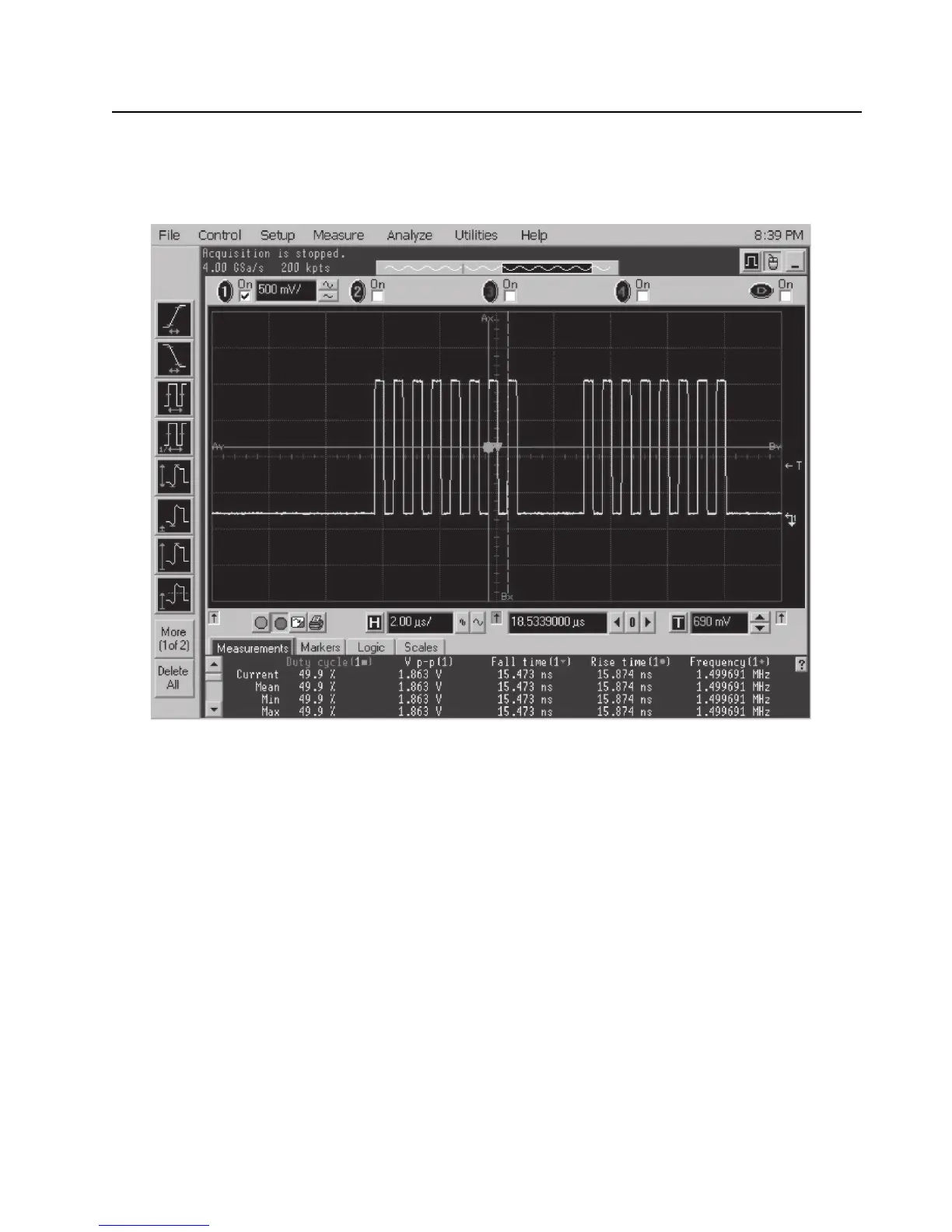

Trace 1: Trace recorded at R2803.
Figure 6-16. SPI – CLK Waveform
