Troubleshooting Waveforms: Audio SSI 6-7
6.3 Audio SSI
6.3.1 Red Tx

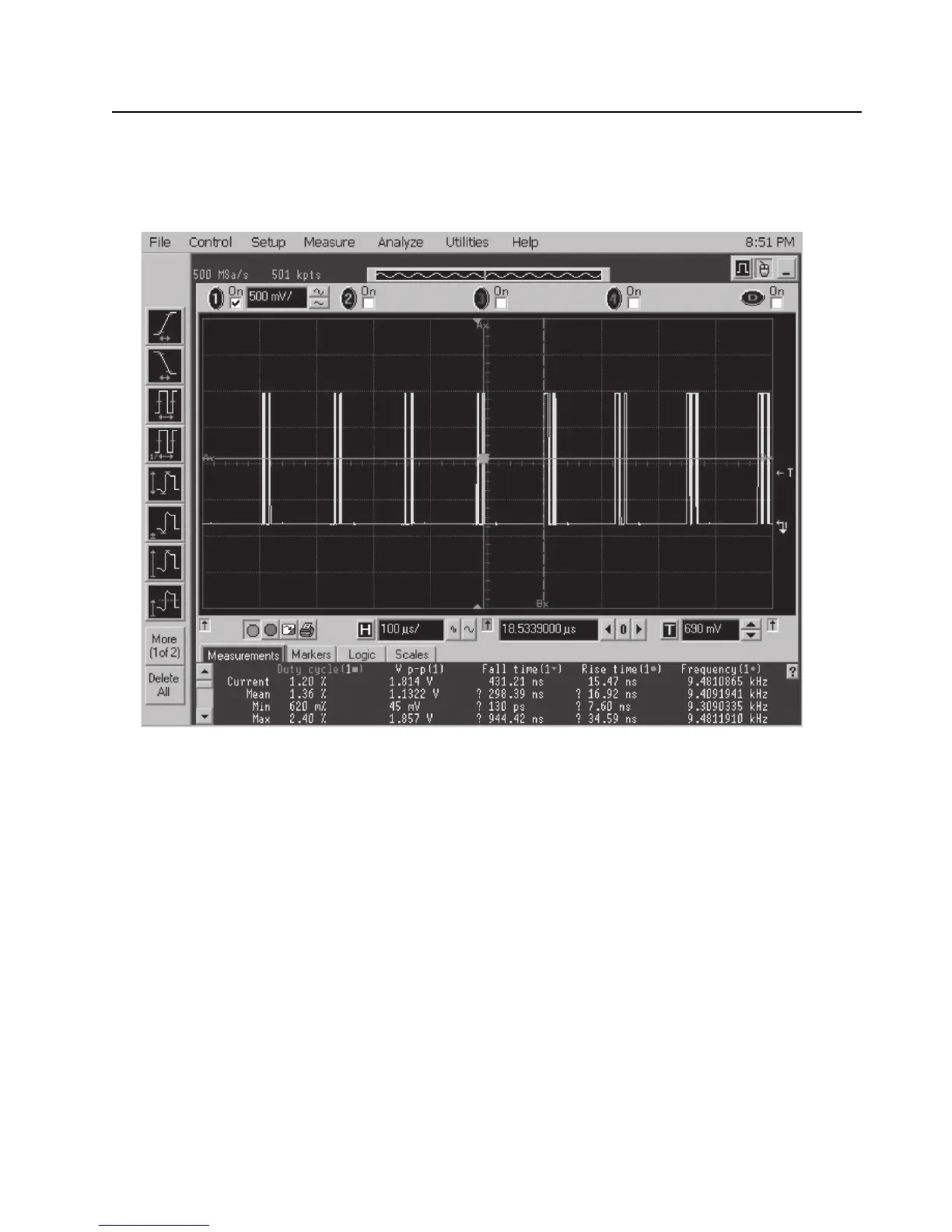

Trace 1: Trace recorded at R6618.
Figure 6-6. Audio SSI – Red Tx Waveform
