6-28 Troubleshooting Waveforms: SDRAM
6.11.2 CLKX

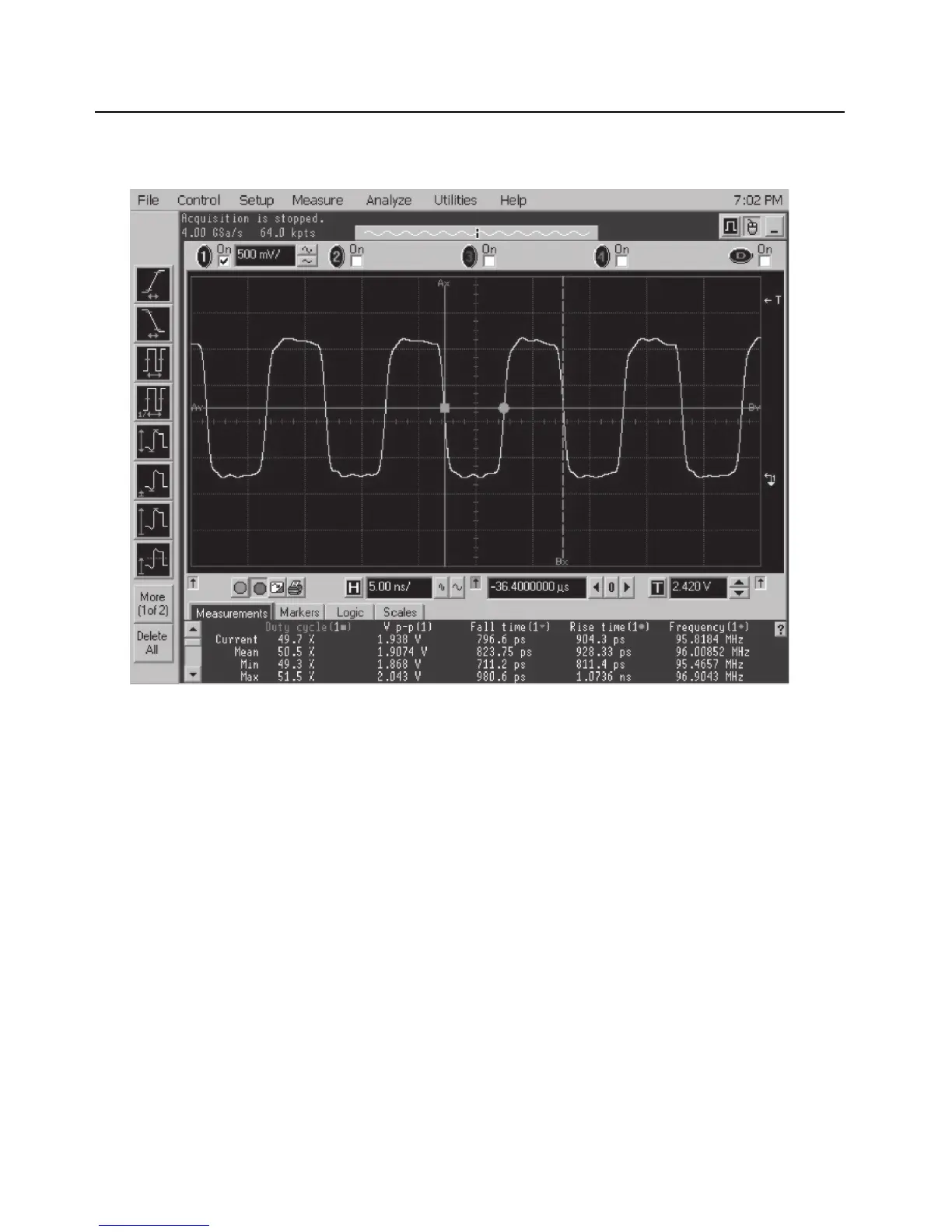

Trace 1: Trace recorded at TP6308.
Figure 6-27. SDRAM – CLKX Waveform
