Motorola APX 2000 Detailed Service Manual

3-62 Theory of Operation: Bluetooth
The host processor operates from a 3.3V LDO regulator (U2402). The 1.85V regulator enables the
3.3V LDO regulator output. The LF receiver IC is powered from a 3.3V LDO regulator (U2402).
Figure 3-50 is a partial current tree showing the flow of current from the battery to the Bluetooth-
related major components sourced by the 3.6V switching regulator on the Main Board.

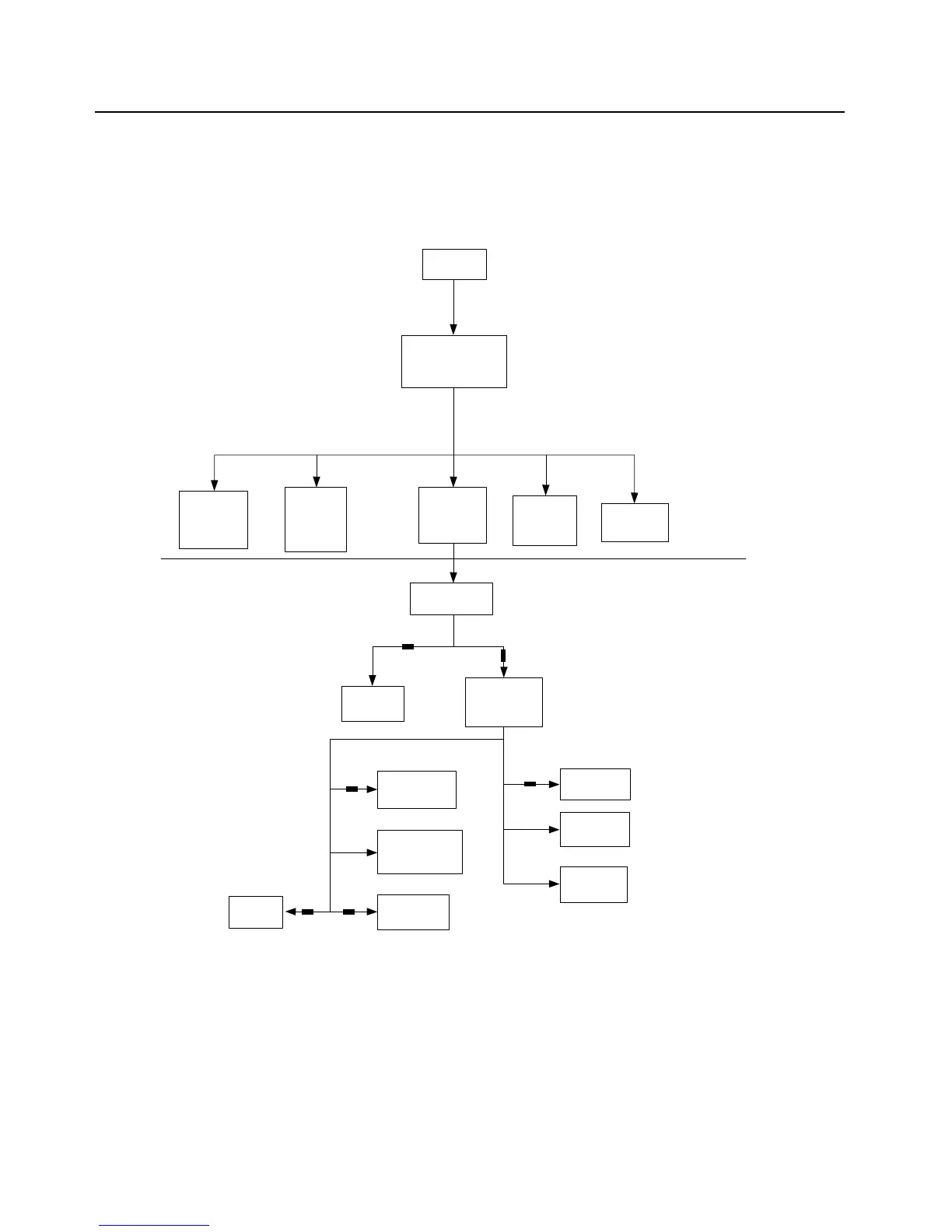

Figure 3-50. Current Distribution Tree for Bluetooth Circuitry
7.5V Batt
3.6V Switcher
800mA TPS 62050
2.23V LDO
TPS 73601
1.85V LDO
LP38693SD
J2301 pin23
J1001 pin 37
VCP_IN
Main Board
Keypad Board
P2001 pin 23
TI NL5500
BT/GPS
3.3V LDO
500mA LP2989
AS3930A
Low Freq.
ST LIS3331DL
Accelerometer
Logic & Level
8 x Level Shifters
1 x Inverter
Logic & Level
1 x NOR
12 MHz OSC
AT32UC3A
AVR32
16MB SDRAM
SW_B+
V_SW_3.60
VSW_3.6
GPS_BT_3.3V

Motorola APX 2000 Specifications

General

IP Rating	IP67
Operating Temperature	-30°C to +60°C
GPS	Optional
Bluetooth	No
Frequency Range	700/800 MHz
Power Output	1-5 W (VHF), 1-3 W (700/800 MHz)
Channels	Up to 1, 000
Battery Life	Up to 10 hours (digital)
Digital Protocol	APCO P25
Frequency	VHF: 136-174 MHz, UHF: 380-470 MHz, 700/800 MHz: 764-870 MHz
Power	1-3W (700/800 MHz), 1-5W (VHF)
