Motorola DP2600 User Manual

Identifying Radio Controls

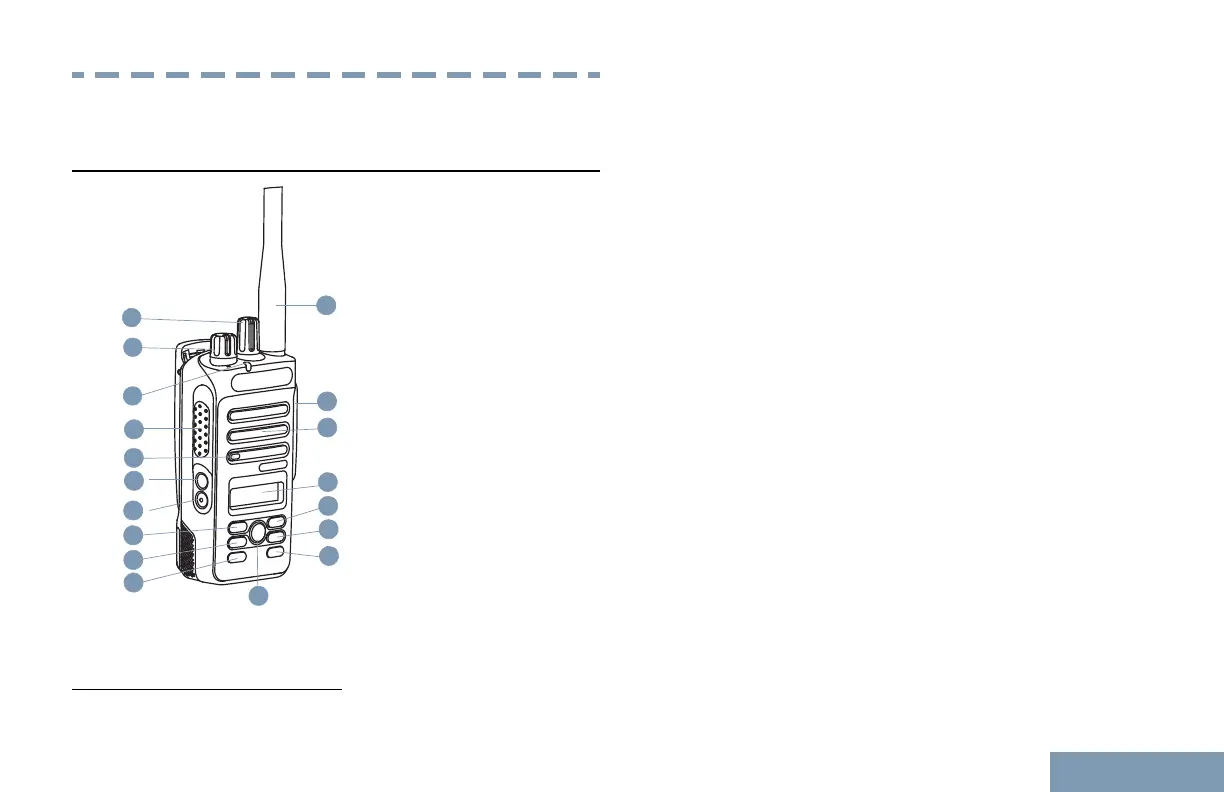

Radio Controls
11
3
14
13
12
8
7
6
5
2
1
9
4
10
15
16
17
18
1 Channel Selector Knob
2 On/Off/Volume Control Knob
3 LED Indicator
4 Push-to-Talk (PTT) Button
5 Microphone
6 Side Button 1
[1]
7 Side Button 2
[1]
8 Left Navigation Button
9 Menu Button
10 Front Button P1
[1]
11 OK Button
12 Front Button P2
[1]
13 Back/Home Button
14 Right Navigation Button
15 Display
16 Speaker
17 Universal Connector for Accessories
18 Antenna
1
These buttons are programmable.
Identifying Radio Controls
17
English

Motorola DP2600 Specifications

General

Channels	128
Operating Temperature	-30°C to +60°C
Frequency	VHF: 136-174 MHz, UHF: 403-527 MHz
Power Output	VHF: 1-5W; UHF: 1-4W
Dimensions	122 x 56 x 36 mm (with standard battery)
Digital Protocol	DMR
