Motorola DS4208 Product Reference Guide

Getting Started 1 - 3
Setting Up the Digital Scanner
Installing the Interface Cable
1. Insert the interface cable modular connector into the interface cable port on the rear of the digital scanner until
an audible click sounds. Low/medium/high beeps sound, indicating the scanner is operational.

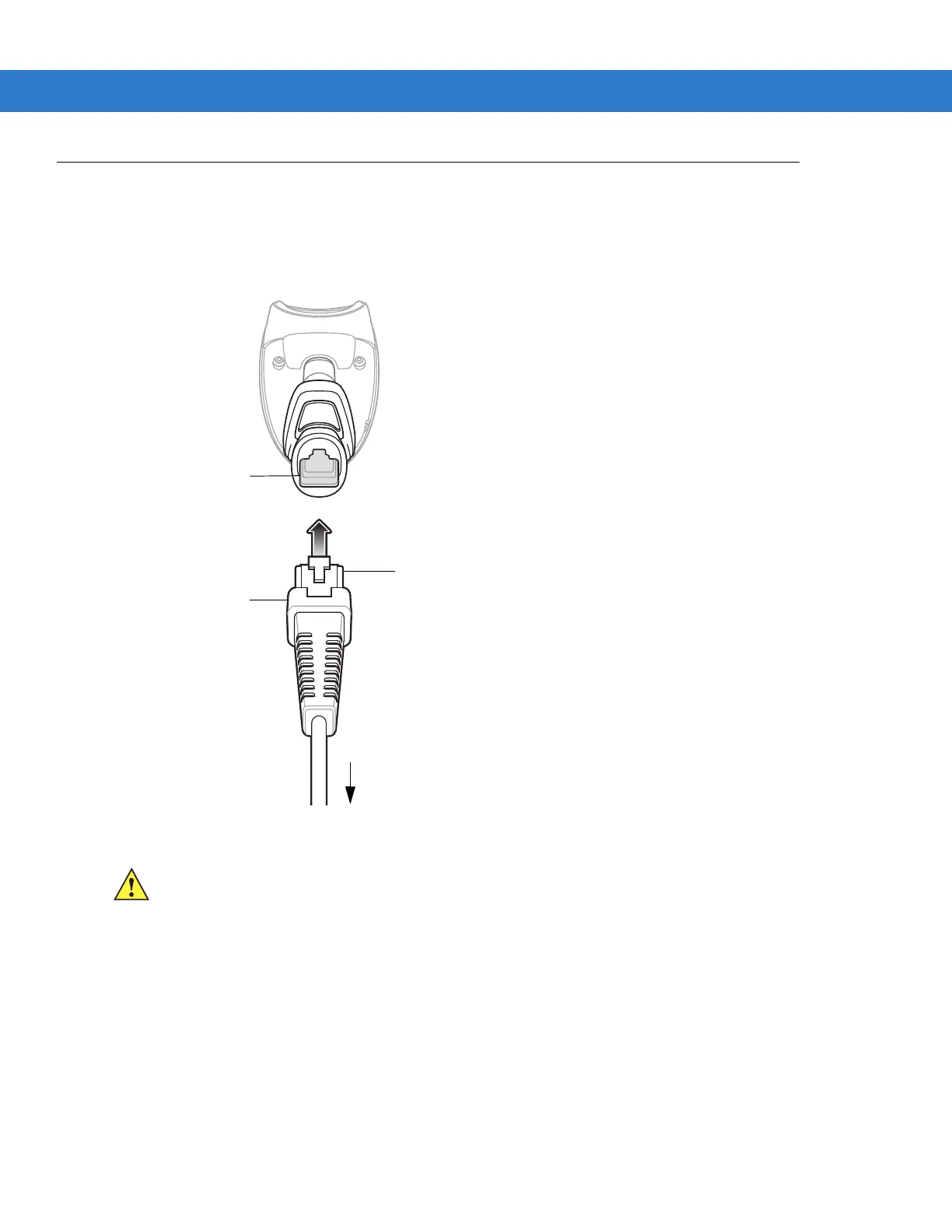

Figure 1-2 Installing the Cable
2. Gently tug the cable to ensure the connector is secure.
3. Connect the other end of the interface cable to the host (see the specific host chapter for information on host
connections).
Interface cable
modular connector
To host
Cable interface
port
Interface cable modular
connector clip
IMPORTANT Insert the cable into the cable interface port until an audible click sounds.
When connecting the DS4208 using a USB cable, a shielded connector cable is required (e.g., p/n
CBA-U21-S07ZAR). If upgrading an LS2208 or LS4208 to a DS4208, use the shielded connector
cable.

Motorola DS4208 Specifications

General

Connectivity	Wired
Sealing	IP43
Voltage	5 VDC ± 10%
Scan Pattern	Omnidirectional
Interface	USB, RS232, Keyboard Wedge
Decode Capability	1D
Drop Specification	Withstands multiple 6 ft. (1.8 m) drops to concrete
Operating Temperature	32° to 104° F (0° to 40° C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 95% (non-condensing)
Lighting	Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions
Power Consumption	2.5 W (typical)
Current	500 mA
Cable Length	6 ft (1.8 m)
