Decode Ranges

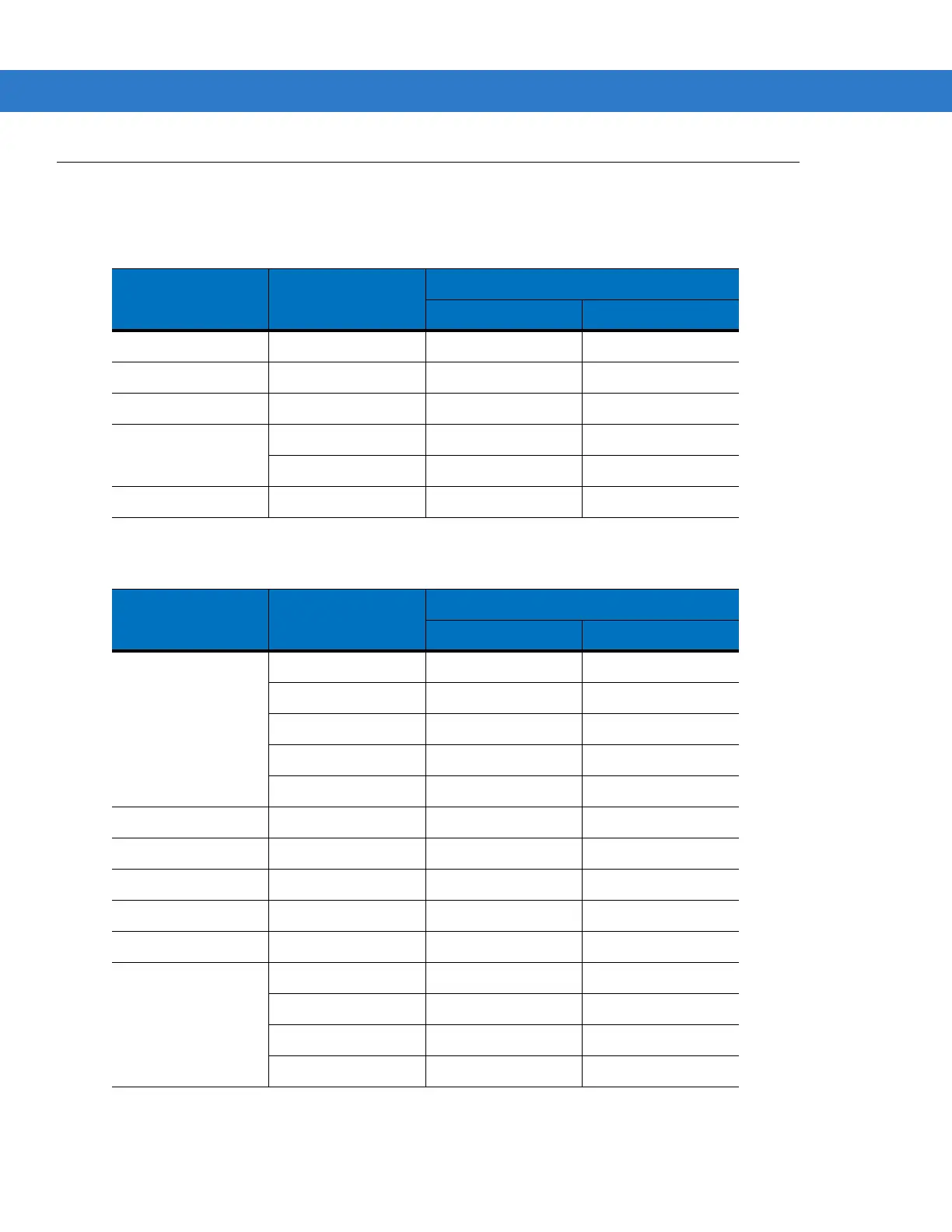

Table 2-3 DS4208-SR (Standard Range)/DS4208-DL (Driver’s License)/DS4208-HC (Healthcare) Decode Ranges
Bar Code Type Symbol Density
Typical Working Ranges
Near Far
Code 39 5.0 mil 0.2 in / 0.5 cm 6.8 in / 17.3 cm
80% UPCA 10.0 mil 0 in / 0 cm 12.7 in / 32.3 cm
100% UPCA 13.0 mil 0.3 in / 0.8 cm 15.2 in / 38.6 cm
PDF 417 5.0 mil 1.5 in / 3.8 cm 4.3 in / 10.9 cm
6.6 mil 0.8 in / 2.0 cm 6.0 in / 15.2 cm
Data Matrix 10.0 mil 0.4 in / 1.0 cm 7.2 in / 18.3 cm
Table 2-4 DS4208-HD (High Definition) Decode Ranges
Bar Code Type Symbol Density
Typical Working Ranges
Near Far
Code 39 3.0 mil 0.2 in / 0.5 cm 3.7 in / 9.4 cm
4.0 mil 0.1 in / 0.3 cm 4.6 in / 11.7 cm
5.0 mil 0.1 in / 0.3 cm 5.1 in / 13.0 cm
7.5 mil 0.1 in / 0.3 cm 6.4 in / 16.3 cm
10.0 mil 0.2 in / 0.5 cm 7.7 in / 19.6 cm
60% UPC 7.8 mil 0.2 in / 0.5 cm 5.4 in / 13.7 cm
80% UPC 10.4 mil 0.3 in / 0.8 cm 6.5 in / 16.5 cm
100% UPC 13.0 mil 0.7 in / 1.8 cm 7.6 in / 19.3 cm
Code 128 5.0 mil 0.3 in / 0.8 cm 4.0 in / 10.2 cm
I2of5 10.0 mil 0.8 in / 2.0 cm 7.2 in / 18.3 cm
PDF 417 4.0 mil 0.7 in / 1.8 cm 2.7 in / 6.9 cm
5.0 mil 0.3 in / 0.8 cm 3.0 in / 7.6 cm
6.67 mil 0.4 in / 1.0 cm 3.6 in / 9.1 cm
10.0 mil 0.8 in / 2.0 cm 4.7 in / 11.9 cm

Motorola DS4208 Specifications

General

Connectivity	Wired
Sealing	IP43
Voltage	5 VDC ± 10%
Scan Pattern	Omnidirectional
Interface	USB, RS232, Keyboard Wedge
Decode Capability	1D
Drop Specification	Withstands multiple 6 ft. (1.8 m) drops to concrete
Operating Temperature	32° to 104° F (0° to 40° C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 95% (non-condensing)
Lighting	Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions
Power Consumption	2.5 W (typical)
Current	500 mA
Cable Length	6 ft (1.8 m)
