Motorola DS4208 Product Reference Guide

User Preferences & Miscellaneous Digital Scanner Options 4 - 37
FN1 Substitution Values
Key Category Parameter # 67h
Decimal Value Parameter # 6Dh
The wedge and USB HID keyboard hosts support a FN1 Substitution feature. Enabling this substitutes any FN1
character (0x1b) in an EAN128 bar code with a value. This value defaults to 7013 (Enter key).
When using host commands to set the FN1 substitution value, set the key category parameter to 1, then set the
3-digit keystroke value. See the ASCII character set table for the current host interface for the desired value.
To select a FN1 substitution value via bar code menus:
1. Scan the bar code below.
2. Locate the keystroke desired for FN1 substitution in the ASCII character set table in the appropriate host
interface chapter. Enter the 4-digit ASCII value by scanning each digit in Appendix D, Numeric Bar Codes.
To correct an error or change the selection, scan Cancel on page D-2.
See USB Keyboard FN 1 Substitution on page 5-14 to enable FN1 substitution for the USB HID keyboard.

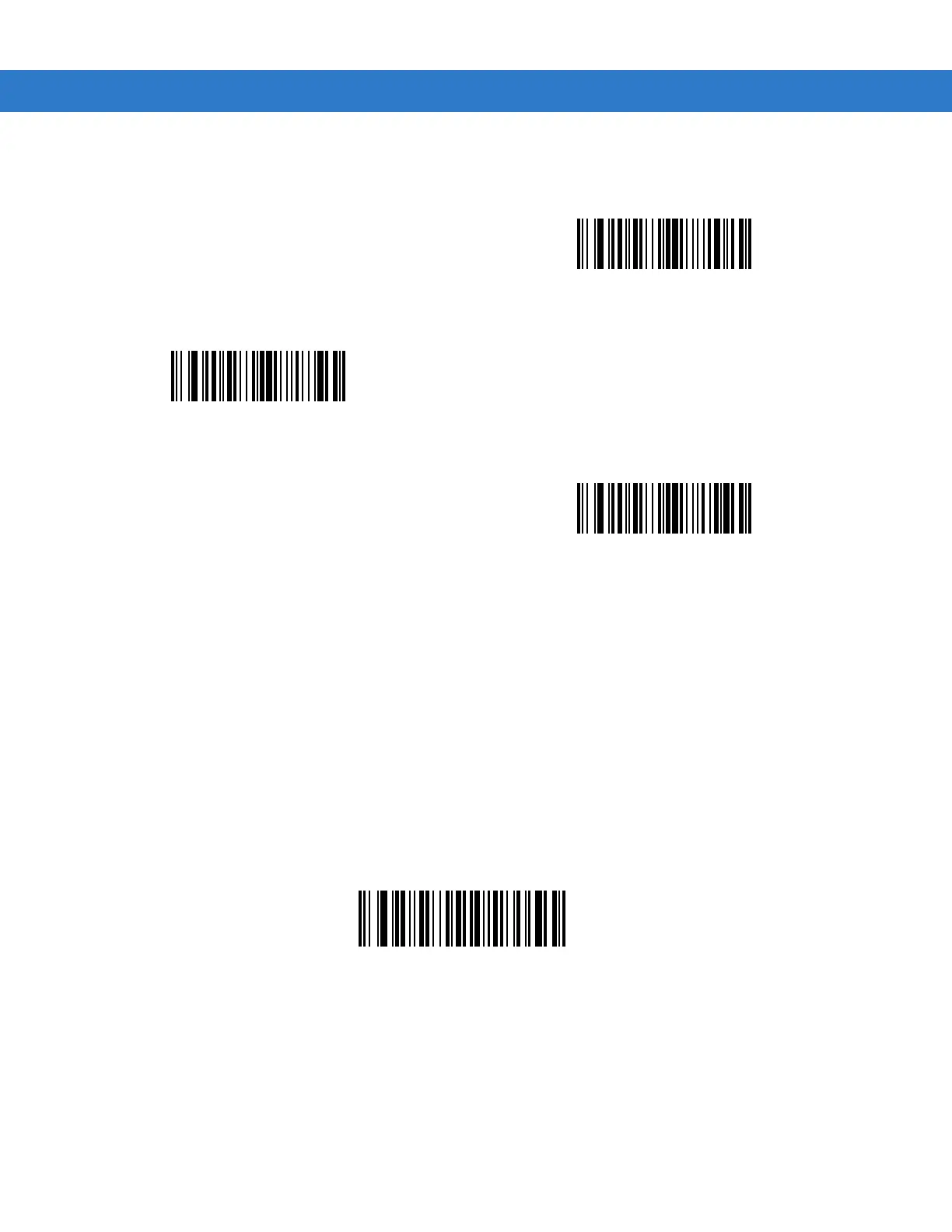

Scan Data Transmission Format (continued)
<PREFIX> <DATA> <SUFFIX 1>
(05h)
<PREFIX> <DATA> <SUFFIX 2>
(06h)
<PREFIX> <DATA> <SUFFIX 1> <SUFFIX 2>
(07h)
Set FN1 Substitution Value

Motorola DS4208 Specifications

General

Connectivity	Wired
Sealing	IP43
Voltage	5 VDC ± 10%
Scan Pattern	Omnidirectional
Interface	USB, RS232, Keyboard Wedge
Decode Capability	1D
Drop Specification	Withstands multiple 6 ft. (1.8 m) drops to concrete
Operating Temperature	32° to 104° F (0° to 40° C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 95% (non-condensing)
Lighting	Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions
Power Consumption	2.5 W (typical)
Current	500 mA
Cable Length	6 ft (1.8 m)
