Motorola DS4208 Product Reference Guide

Scanning 2 - 7
Scanning with the Stand
When the digital scanner is placed in the gooseneck Intellistand it operates in continuous (constant-on) mode,
where it automatically decodes a bar code presented in its field of view.
To operate the scanner in the stand:
1. Ensure the scanner is properly connected to the host (see the appropriate host chapter for information on host
connections).
2. Insert the scanner in the gooseneck Intellistand by placing the front of the scanner into the stand’s “cup.”

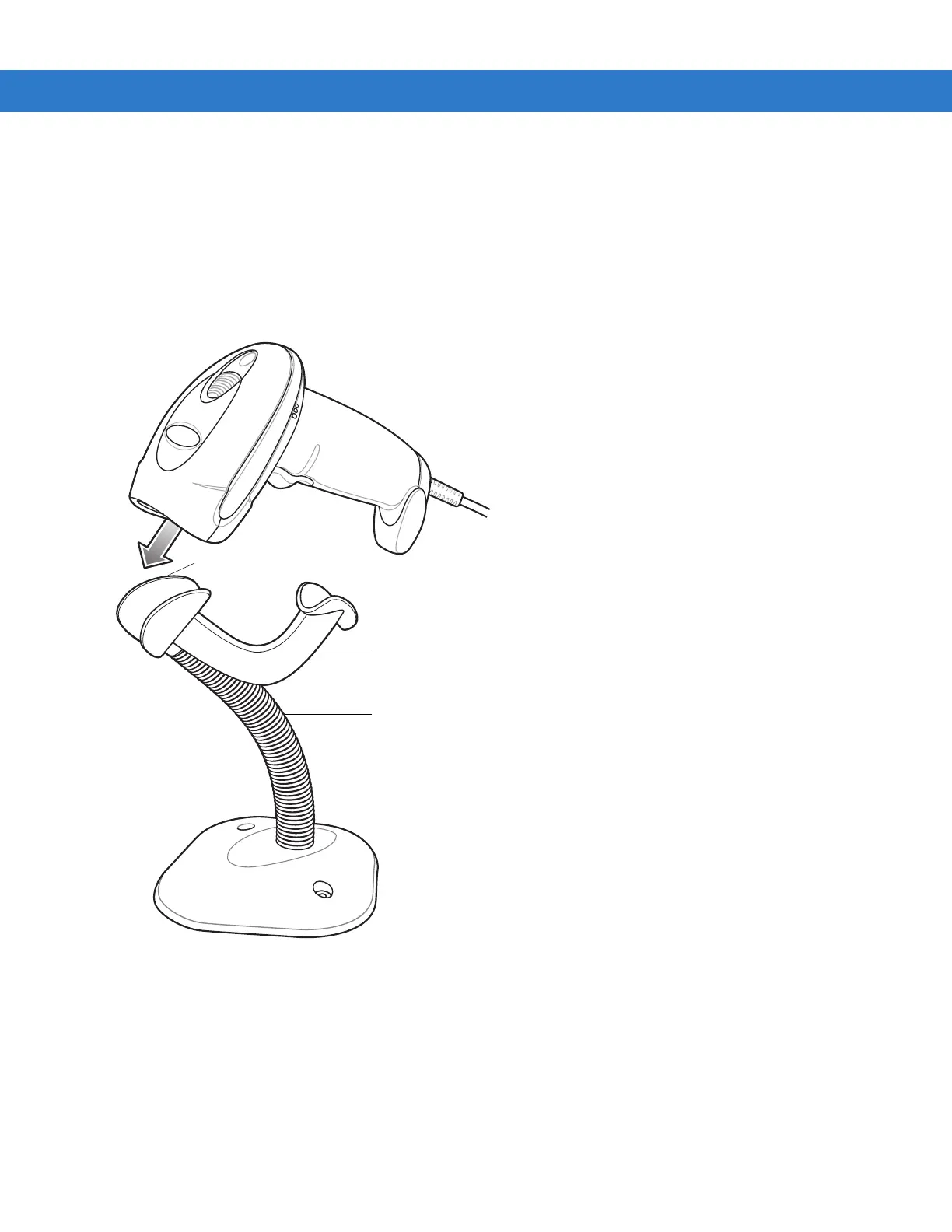

Figure 2-4 Inserting the Scanner in the Gooseneck Intellistand
3. Adjust the scan angle by bending the stand’s flexible “gooseneck” body.
4. Present the bar code.
5. Upon successful decode, the scanner beeps and the LED turns green. For more information about beeper and
LED definitions, see Table 2-1 and Table 2-2.
Scanner holder
Flexible “gooseneck”
Cup

Motorola DS4208 Specifications

General

Connectivity	Wired
Sealing	IP43
Voltage	5 VDC ± 10%
Scan Pattern	Omnidirectional
Interface	USB, RS232, Keyboard Wedge
Decode Capability	1D
Drop Specification	Withstands multiple 6 ft. (1.8 m) drops to concrete
Operating Temperature	32° to 104° F (0° to 40° C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 95% (non-condensing)
Lighting	Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions
Power Consumption	2.5 W (typical)
Current	500 mA
Cable Length	6 ft (1.8 m)
