3 - 10 DS4208 Digital Scanner Product Reference Guide

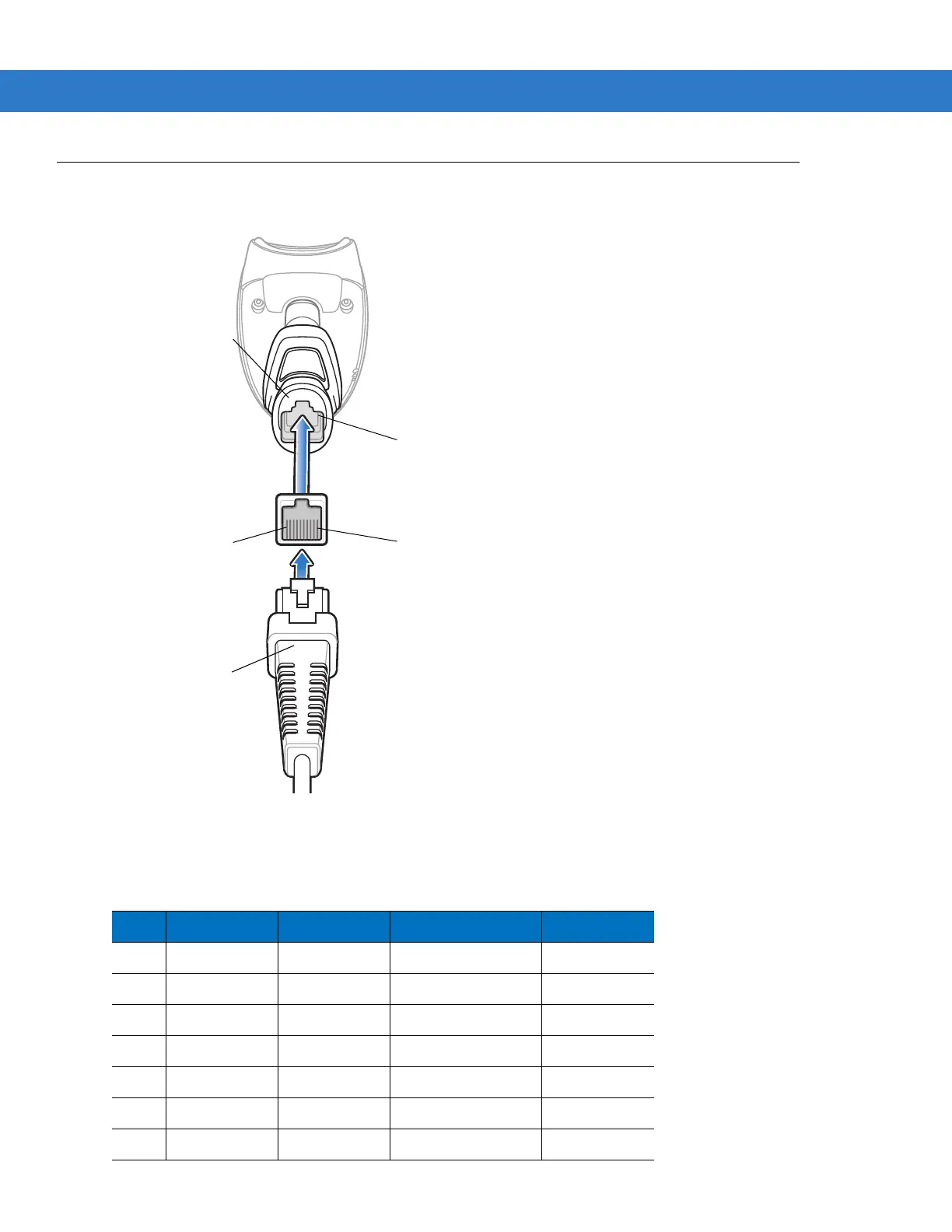

Digital Scanner Signal Descriptions
Figure 3-1
Digital Scanner Cable Pinouts
The signal descriptions in Table 3-3 apply to the connectors on the DS4208 digital scanner and are for reference
only.
Table 3-3
DS4208 Digital Scanner Signal Pin-outs
Pin IBM RS-232 Keyboard Wedge USB
1
Reserved Reserved Reserved Jump to Pin 6
2
Power Power Power Power
3
Ground Ground Ground Ground
4
IBM_A(+) TxD KbdClock Reserved
5
Reserved RxD TermData D +
6
IBM_B(-) RTS KbdData Jump to Pin 1
7
Reserved CTS TermClock D -
Cable interface port
Interface cable
modular connector
Bottom of
scanner
PIN 1
PIN 10
