Moxa Managed Ethernet Switch (UI_2.0_FW_5.x) User Manual
94
Access Control List Configuration and Setup
Access Control Profile Settings

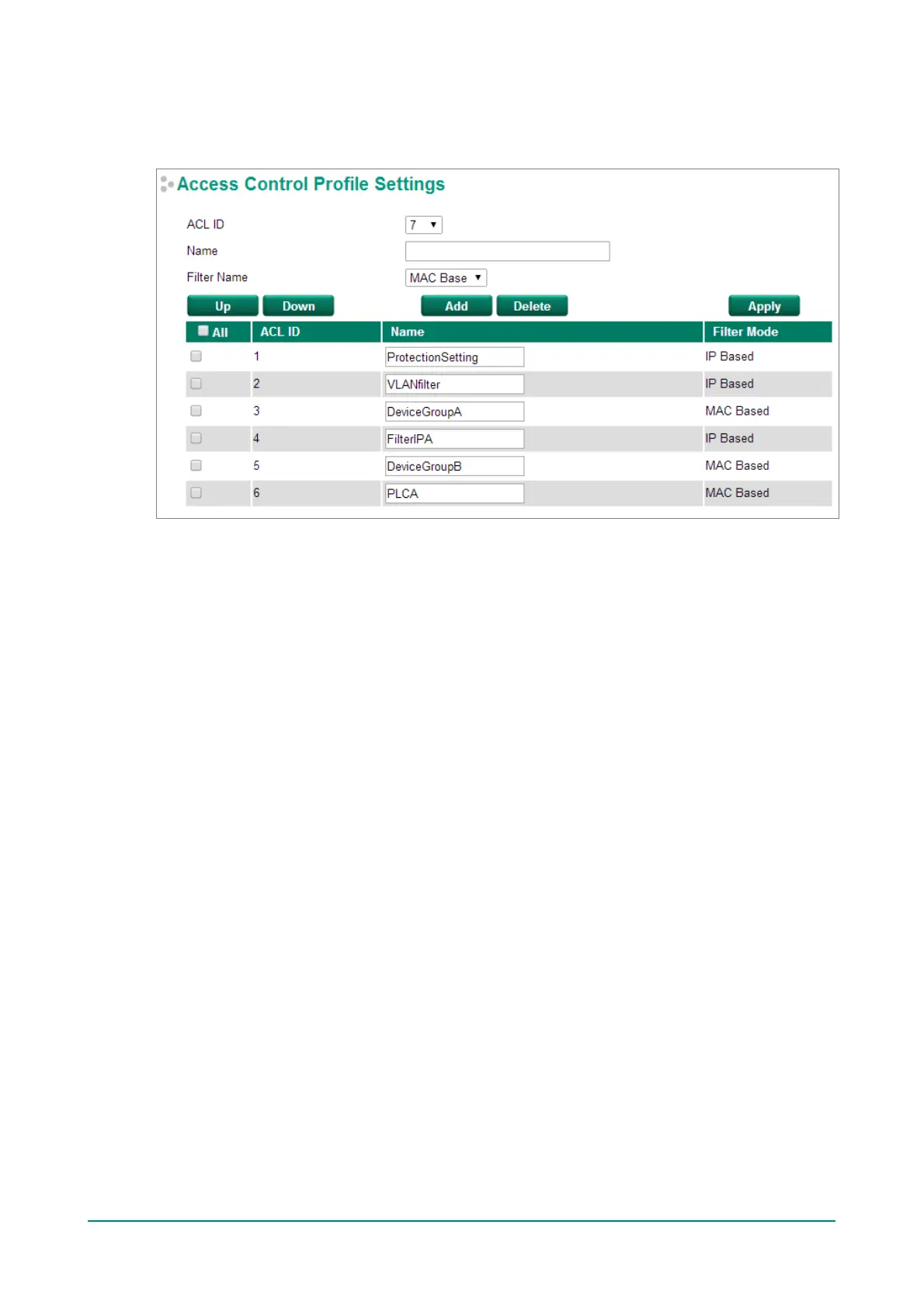

On this page, you can configure two settings: (1) Add/Modify Access Control list, and (2) Adjust ACL ID.
Add/Modify Access Control List
This function lets you add a new access control profile or modif y an existing access control prof ile. The
operation depends on the ACL ID you select. If the selected ACL ID is still empty, you can start by creating
a new access control profile. Parameters for editing are as follows:
ACL ID: The ACL checking sequence is based on these IDs. Smaller ID numbers have a higher priority
f or packet f iltering. If a packet is f iltered by an access control prof ile with a higher priority, those access
control prof iles with a lower priority will not be executed.
Note that the ACL ID is not unique with respect to the prof ile name. The ID changes when swapping the
priority of dif f erent access control prof iles.
The maximum Priority Index number is 16.
Name: You can name the access control prof ile in this f ield.
Filter Name: Select filtering by either IP or MAC address. Detailed settings can be configured in the
Access Control Rule Settings page.
If a selected ACL ID is already in the access control list, then you can modify the parameters listed above.
Af ter the conf iguration is complete, click Apply to conf irm the settings. A new list will appear in the Access
Control List Table.
Adjust ACL ID
Changing an established access control prof iles priority is easy. Moxa provides a simple interf ace to let you
easily adjust the priority. Follow the three steps below to adjust the priority:
Step 1: Select the prof ile
Step 2: Click the Up/Down button to adjust the sequence. The ACL ID will change with the prof iles
position.
Step 3: Click the Apply button to confirm the settings.
