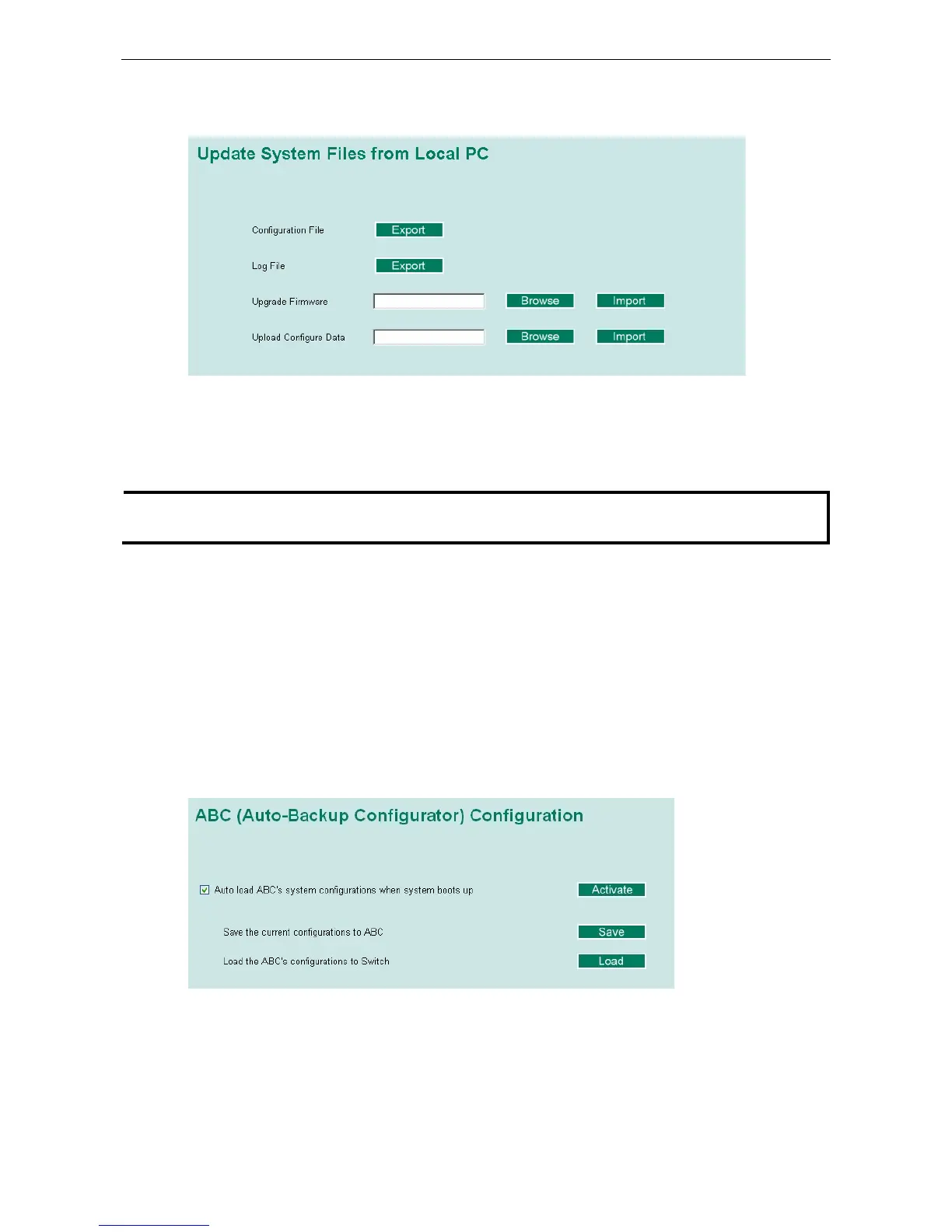

Update System Files from Local PC
Configuration File
Click Export to save the Moxa switch’s configuration file to the local host.
Log File
Click Export to save the Moxa switch’s log file to the local host.
Some operating systems will open the configuration file and log file directly in the web page. In such cases,
right click the Export button to save the file.
Upgrade Firmware
To import a new firmware file into the Moxa switch, click Browse to select the firmware file that is saved on
your computer. The upgrade procedure will proceed automatically after clicking Import.
Upload Configure Data
To import a configuration file into the Moxa switch, click Browse to select the configuration file already saved
on your computer. The upgrade procedure will proceed automatically after clicking Import.
ABC (Auto-Backup Configurator) Configuration
You can use Moxa’s Automatic Backup Configurator to save and load the Moxa switch’s configurations through
the switch’s RS-232 console port.
