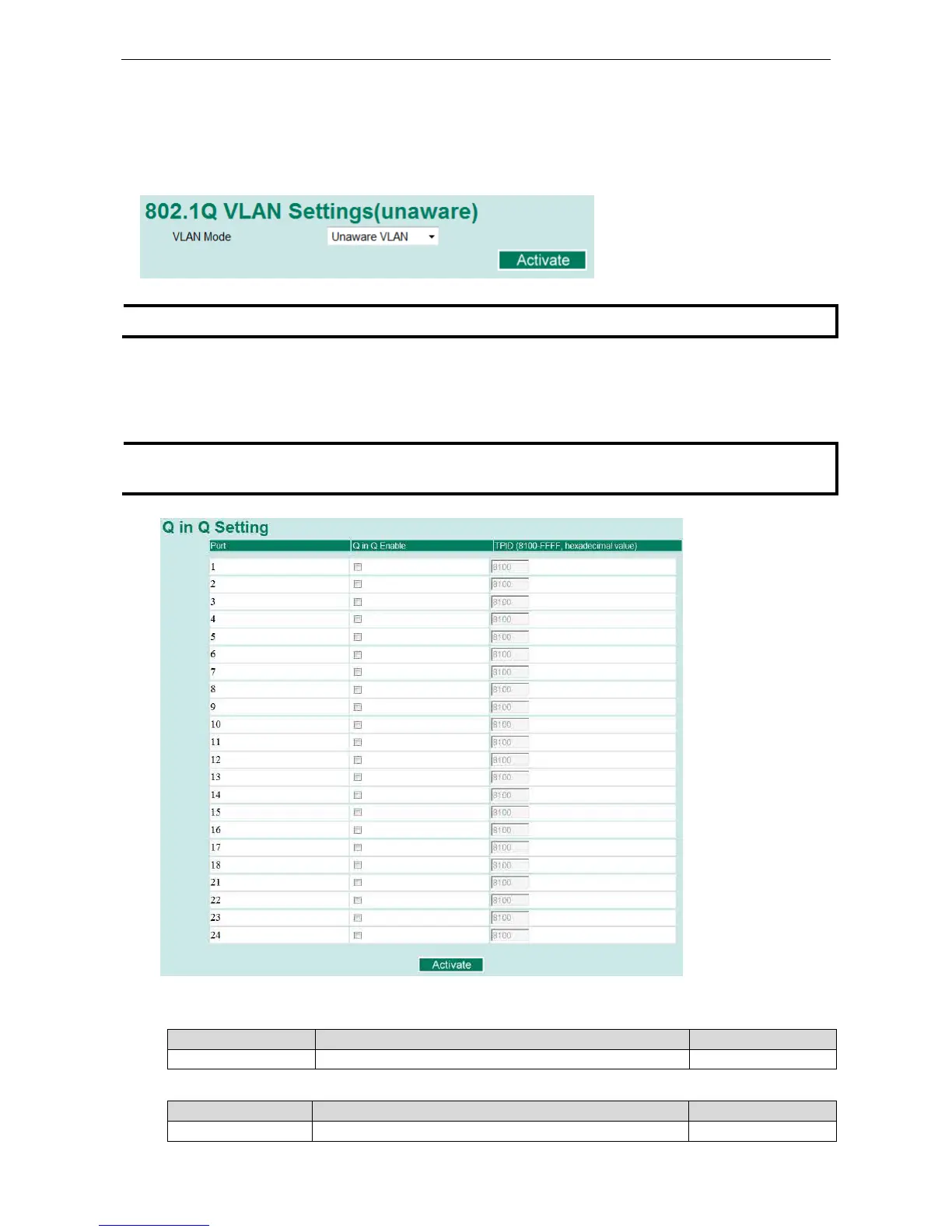

Unaware VLAN Settings
The Unaware VLAN function provides users a flexible operation in a VLAN network. Switches which are set on
Unaware VLAN mode do not check the VLAN tags of input Ethernet frame. All of VLAN tags can always in and out of
the Unaware VLAN switch, and the switch won’t affect the VLAN tags of Ethernet frames.
NOTE
When users enable
Unaware VLAN function, all of ports are set as unaware VLAN ports.
QinQ Setting
NOTE
Moxa layer 3
switches provide the IEEE 802.1ad QinQ function. T
his function allows users to tag double VLAN
headers into one single Ethernet frame
QinQ Enable
Setting Description Factory Default
Enable/Disable Enable VLAN QinQ function Disable
TPID
Setting Description Factory Default
8100 to FFFF Assign the TPID of the second VLAN tag 8100
