Using Diagnosis
The Moxa switch provides three important tools for administrators to diagnose network systems.
Mirror Port
The Mirror Port function can be used to monitor data being transmitted through a specific port. This is done by
setting up another port (the mirror port) to receive the same data being transmitted from, or both to and from, the
port under observation. Using a mirror port allows the network administrator to sniff the observed port to keep tabs
on network activity.
Please note that two types of mirror port settings are available, depending on the specific model of switch. In Type
1, the switches support multi-to-one and one-to-one mirror function. In Type 2, the switches support only
one-to-one mirror function.
Type Models Supported
Type 1 EDS-728/828, IKS-6726/6726-8PoE/6728/G6524/G6824, ICS-G7000 Series
Type 2 EDS 400A/500A/600 Series, EDS-P506A-4PoE/P510/P510A-8PoE/G509
Type 1

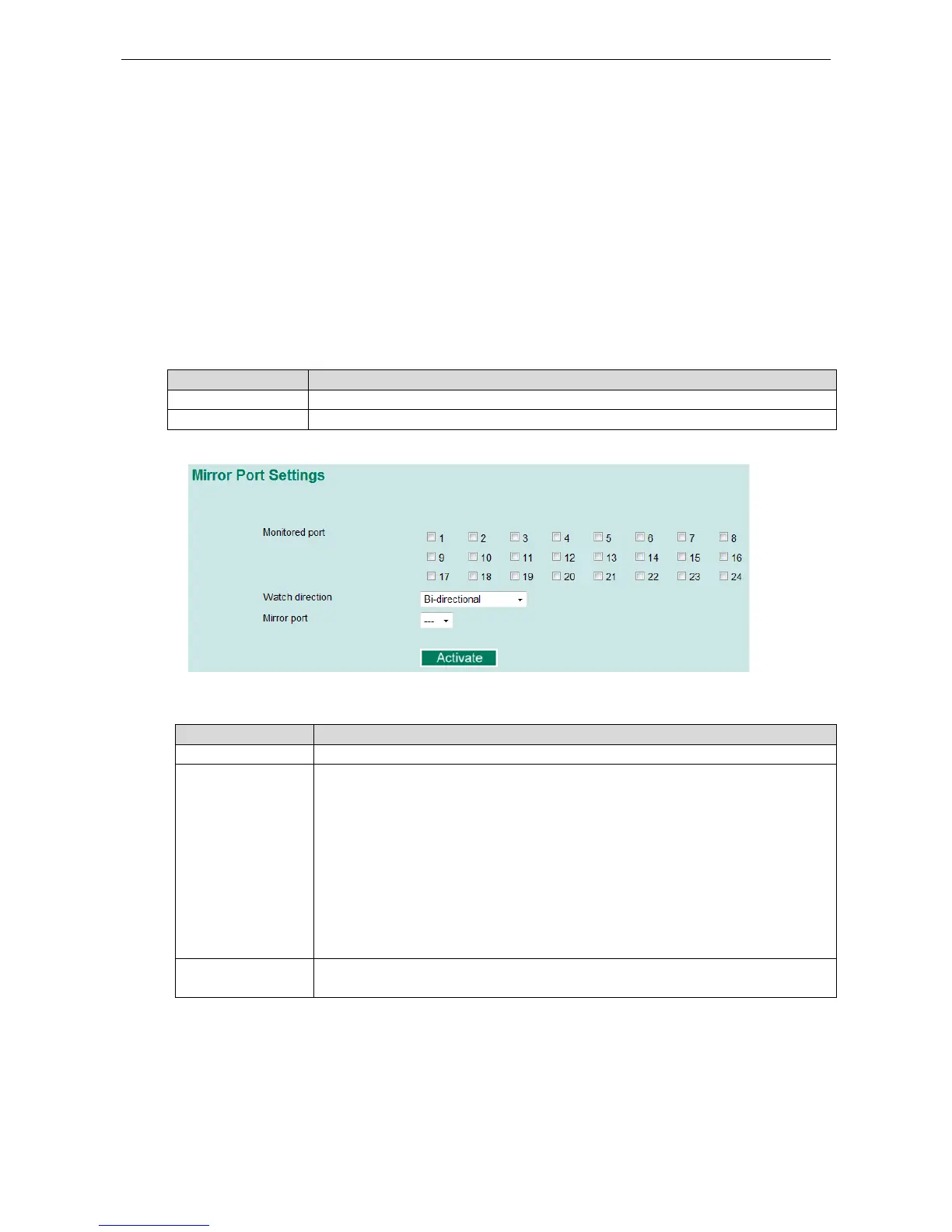

Mirror Port Settings
Setting Description
Monitored Port Select the number of the ports whose network activity will be monitored.
Watch Direction Select one of the following two watch direction options:
Input data stream:
Select this option to monitor only those data packets coming into the Moxa switch’s
port.
Output data stream:
Select this option to monitor only those data packets being sent out through the
Moxa switch’s port.
Bi-directional:
Select this option to monitor data packets both coming into, and being sent out
through, the Moxa switch’s port.
Mirror Port Select the number of the port that will be used to monitor the activity of the monitored
port.
NOTE: In Type 1 settings, users can select multiple monitored ports for port mirror function.
To Next Page
