LinkCom 5 User Manual
Page 22

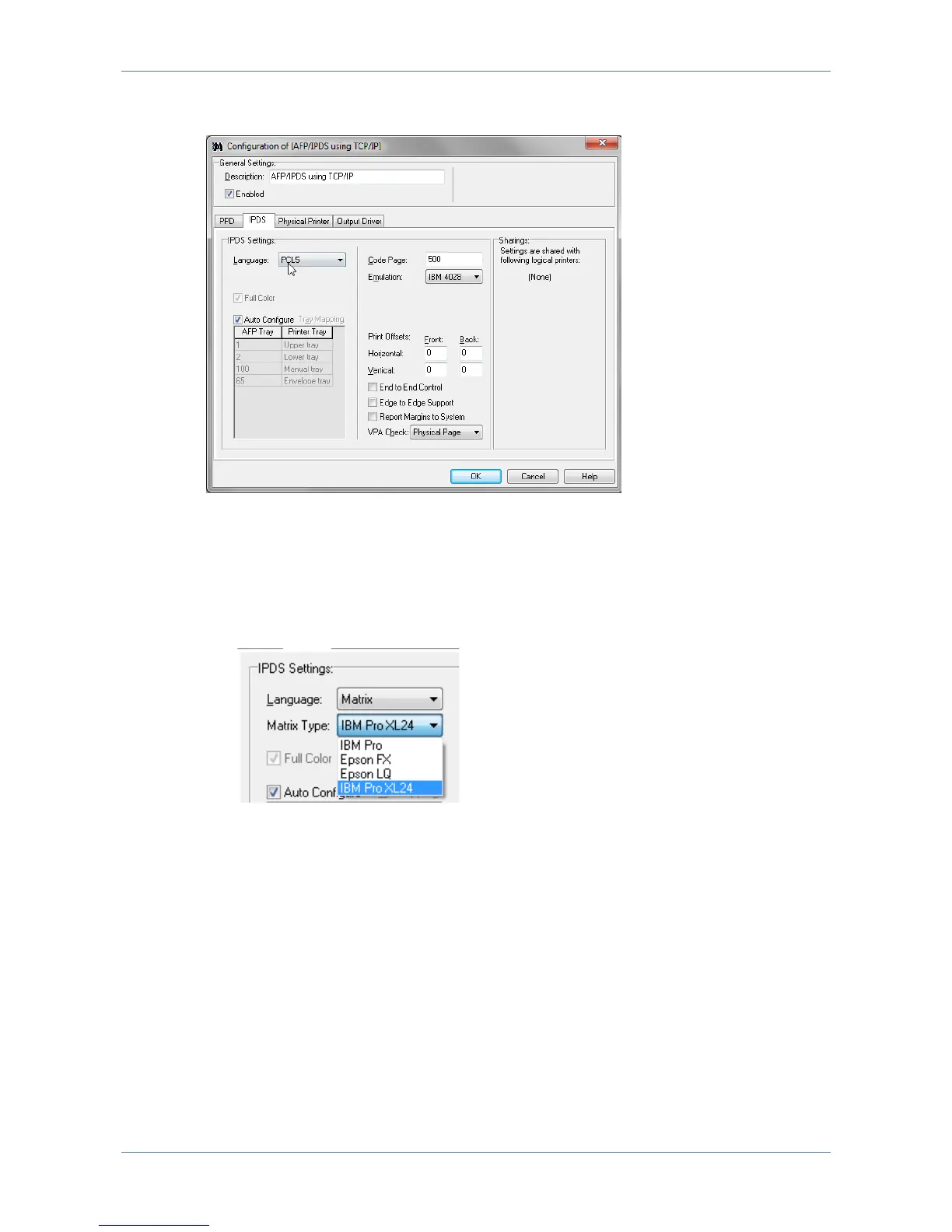

7.4.2 IPDS
Language (Output data stream)
Select PCL5 ,PostScript or Matrix*
*) Matrix will only appear as an option, if the logical printer was created based
on a Generic Matrix printer template. (See section 2.1 regarding loading Printer
definition files.)
If Matrix is selected a list of matrix options becomes selectable:
Select between Matrix printer type: IBM Pro, IBM Pro XL 24, Epson FX, Epson
LQ.
Remember to alter your Matrix printer accordingly in case it supports multiple
matrix printer languages.
Code Page
Select the value as required. Default is 500 (Multinational). Value has to match
corresponding value on the host system.
Emulation
Define the IBM emulation which is reported to the IBM host system.
Select the value as required: IBM 3812, IBM 3816, IBM 4028, IBM IP40, IBM 4247*
(IBM 4247 will only appear in the list if the logical printer was created based on a
