LinkCom 5 User Manual
Page 40
Device Name / LUNAME
Fill in the Device name you would like to use. This name will automatically be
created as a printer name on your IBM 3270 Mainframe host.
Host IP address:
This is the IP address of the IBM mainframe host system.
Host Port number is 23 and is a predefined host port.

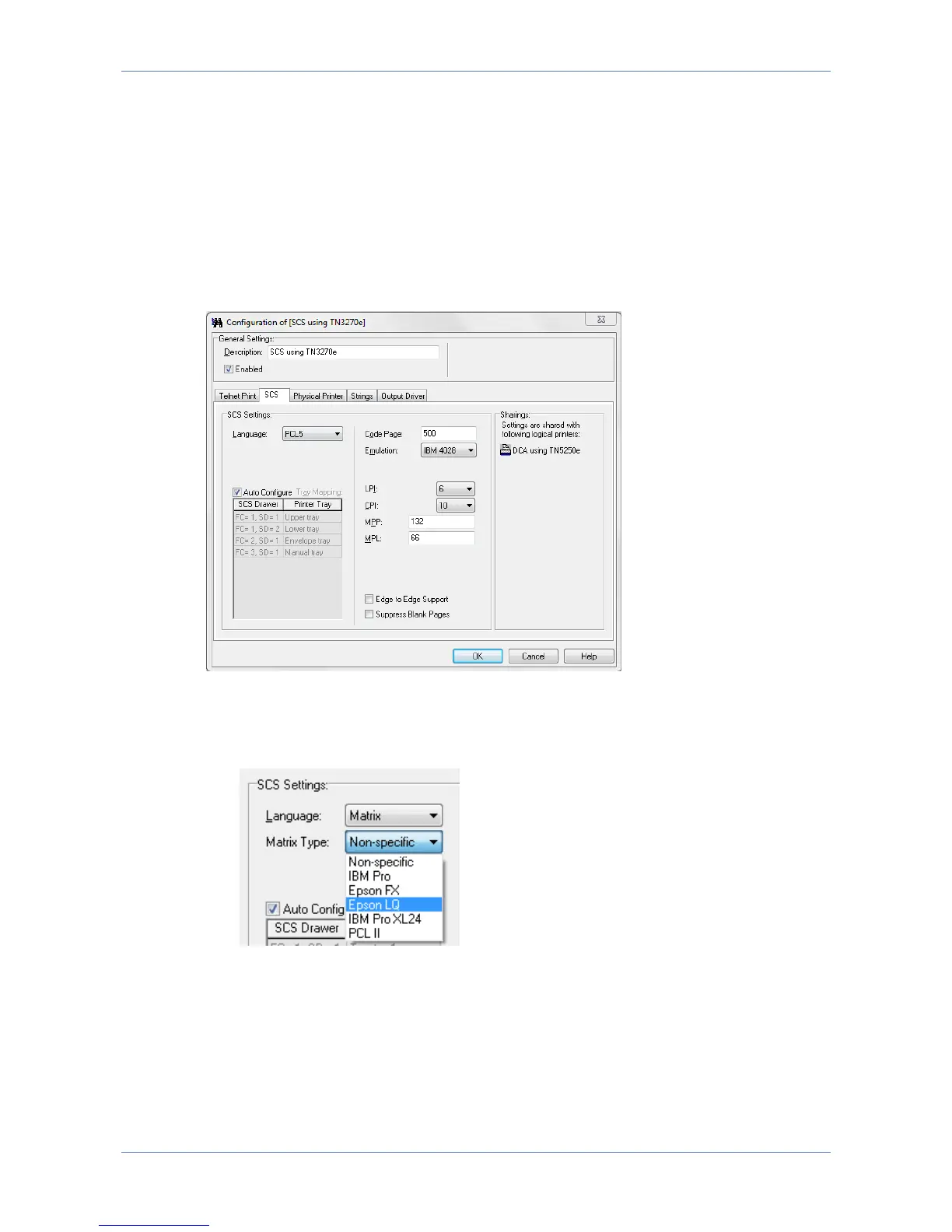

7.7.2 SCS
Language (Output data stream)
Select: PCL5, PostScript or Matrix
When Matrix is selected a list of sub matrix options become selectable:
Select between Matrix printer type: IBM Pro, IBM Pro XL 24, Epson FX, Epson
LQ, PCL II or Non-specific.
Remember to alter your Matrix printer accordingly in case it supports multiple
matrix printer languages.
