Temposonics
®
R-Series SSI
Operation Manual
Temposonics
®
R-Series SSI
Operation Manual

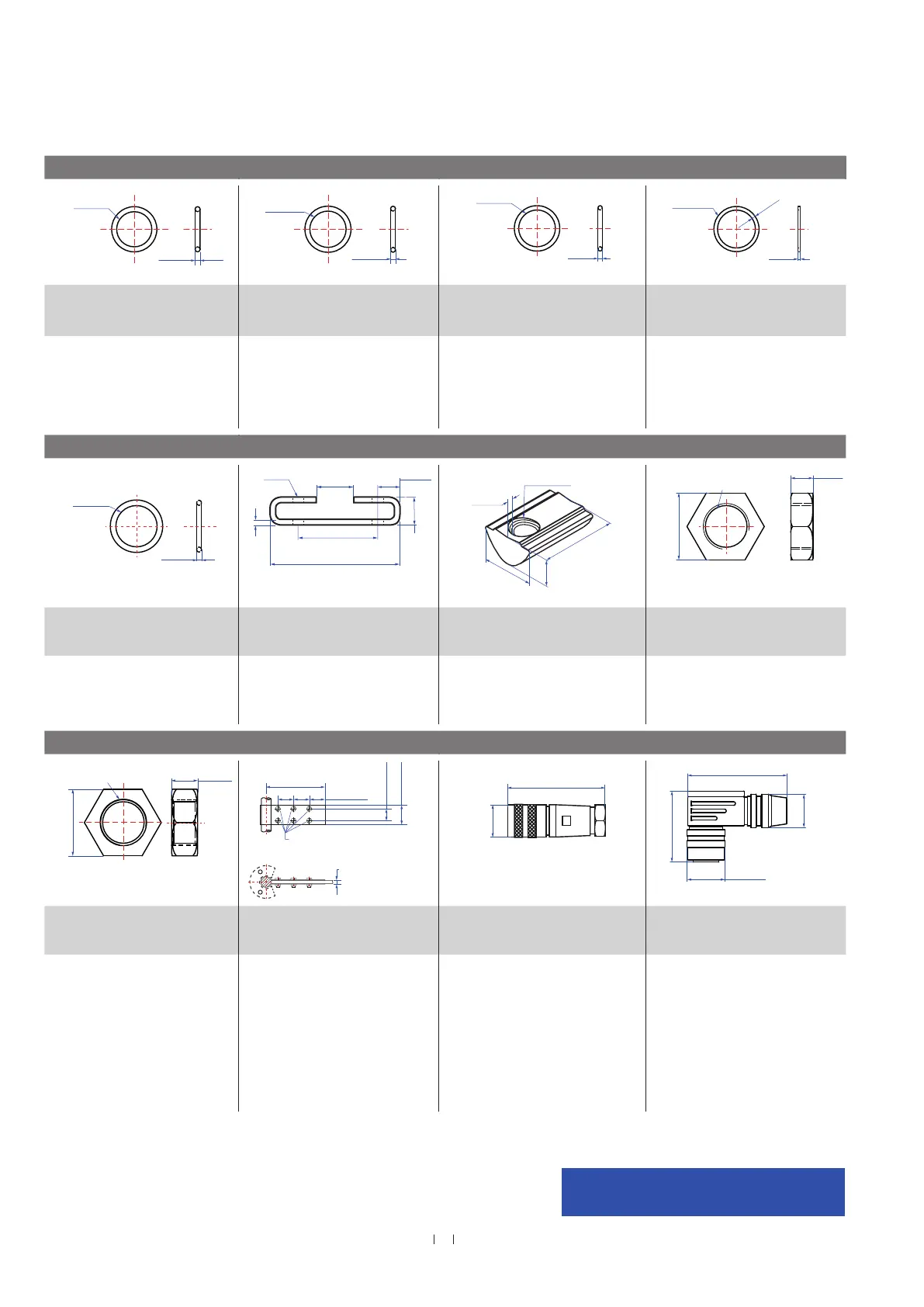

Optional installation hardware
Ø 15.3
(Ø 0.6)
Ø 2.2
(Ø 0.09)
Ø 16.4
(Ø 0.65)
Ø 2.2
(Ø 0.09)
Ø 21.9
(Ø 0.86)
Ø 2.6
(Ø 0.1)
Ø 27
(Ø 1.06)
1.4
(0.05)
2.2
(0.09)
O-ring for fl ange M18×1.5-6g
Part no. 401 133
O-ring for fl ange ¾"-16 UNF-3A
Part no. 560 315
O-ring for pressure fi t fl ange
Part no. 560 705
Back-up ring for pressure fi t fl ange
Part no. 560 629
For: RH, RF, RD4, RT4 For: RH, RF, RD4, RT4 For: RD4 For: RD4
Application: Flange M18×1.5
Material: Fluoroelastomer
75 ± 5 durometer
Application: Flange ¾"-16 UNF
Material: Fluoroelastomer
75 ± 5 durometer
Application: Pressure fi t fl ange
Material: Nitrile rubber
Application: Pressure fi t fl ange
Material: Polymyte
90 durometer
Optional installation hardware Mounting clamp T-slot nut Optional installation hardware
Ø 19.2
(Ø 0.76)
Ø 2.2
(Ø 0.09)
5.3
(0.21)
28
(1.1)
9
(0.35)
50
(1.97)
2
(0.08)
68
(2.68)
9
(0.35)
Mounting clamp width: 14.6 (0.57)
4
(0.16)
11.5
(0.45)
4.5
(1.8)
8
(0.31)
M5 thread
M18×1.5-6g
A/F 27
8.7
(0.34)
O-ring for fl ange M22×1.5-6g
Part no. 561 337
Mounting clamp
Part no. 400 802
T-slot nut
Part no. 401 602
Hex-jam nut M18
Part no. 500 018
For: RH For: RP For: RP For: RH, RD4
Application: Flange M22×1.5
Material: FPM
Material: Stainless steel (AISI 304) Fastening torque for M5 screw: 4.5 Nm Application: M18×1.5 thread
Material: Steel, 2 zinc, plated
Optional installation hardware Cable connectors
13
¾"-16 UNF-3A
A/F 28
11
(0.43)
20 (0.79)
60 (2.36)
16 (0.63)
12 (0.47)
3.2 (0.13)
Ø 3.2 (Ø 0.13)
M3 fastening screws (6×)
54
(2.13)
Ø 18
(
Ø 0.71)
~ 54
(~2.13)
~ 38
(~ 1.5)
Ø 20.5
(Ø 0.81)
Ø 18
(Ø 0.71)
Hex-jam nut ¾"
Part no. 500 015
Fixing clip
Part no. 561 481
M16 connector (7 pin) female, straight
Part no. 370 624
M16 connector (7 pin) female, angled
Part no. 560 779
For: RH, RD4 For: RH, RD4, RT4 For: RP, RH, RD4, RT4, RF For: RP, RH, RD4, RT4, RF
Application: ¾"-16 UNF thread
Material: Zinc plated with nylon insert
Application: Used to secure sensor
rods (Ø 10 mm (Ø 0.39 in.) when
using an U-magnet
Material: Brass, non-magnetic
Material: Zinc nickel plated
Termination: Solder
Contact insert: Silver plated
Cable Ø: 6…8 mm (0.24…0.31 in.)
Operating temperature:
−40…+100 °C (−40…+212 °F)
Cable clamp: PG9
Ingress protection: IP65, IP67
Material: Zinc nickel plated
Termination: Solder
Contact insert: Silver plated
Cable Ø: 6…8 mm (0.24…0.31 in.)
Operating temperature:
−40…+95 °C (−40…+203 °F)
Ingress protection: IP67
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
13/ Follow the manufacturer‘s mounting instructions
