Temposonics
®
R-Series SSI
Operation Manual
Temposonics
®
R-Series SSI
Operation Manual

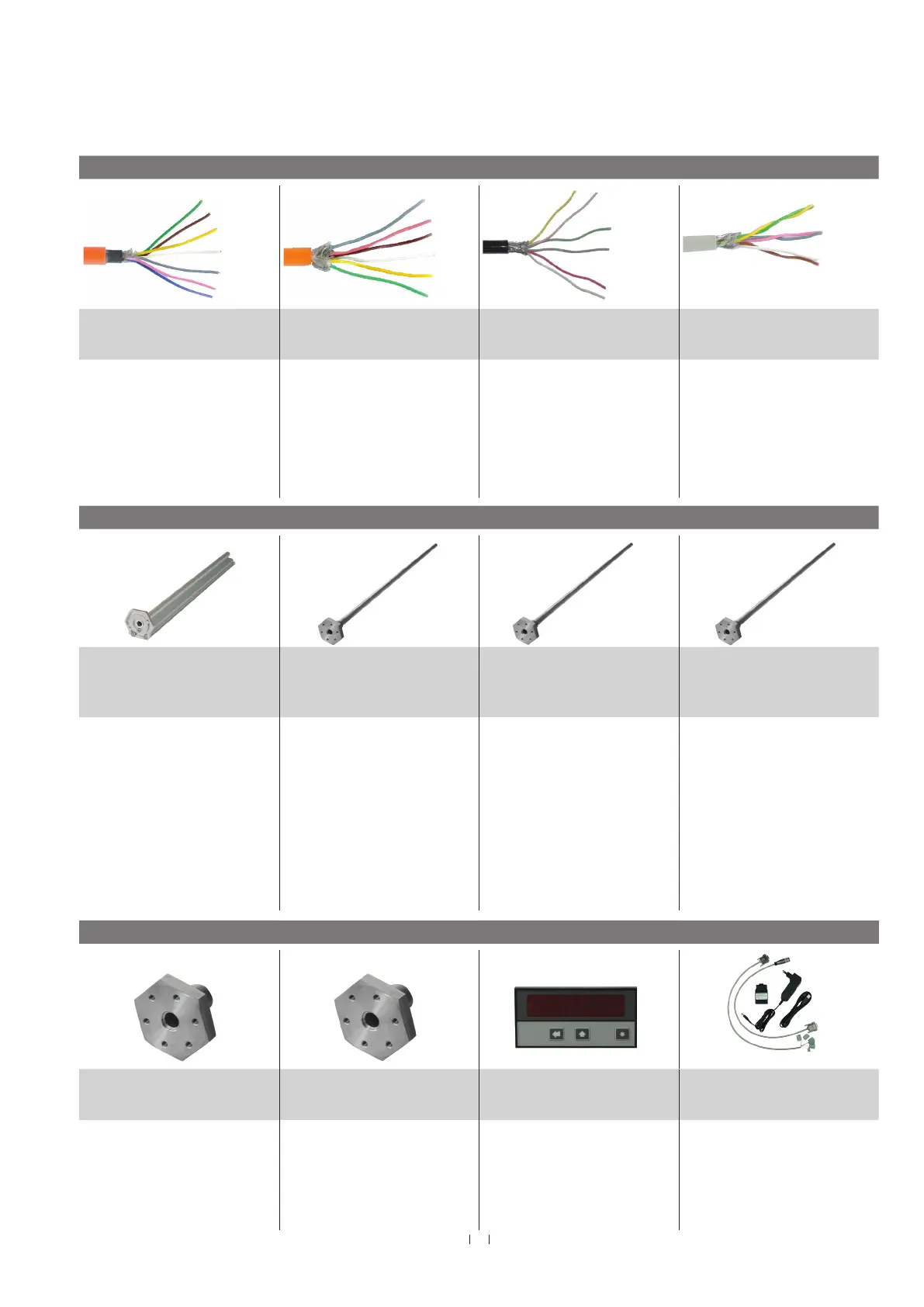

Cables
TMPU cable
Part no. 530 029
PUR cable
Part no. 530 052
PUR cable
Part no. 530 045
PVC cable
Part no. 530 032
For: RP, RH, RD4, RT4, RF For: RP, RH, RD4, RF For: RP, RH, RD4, RT4, RF For: RP, RH, RD4, RT4, RF
Name of cable in order code: P
Name of cable in order code: H
Name of cable in order code: F
Name of cable in order code: R
Material: TMPU jacket; orange
Cable Ø: 6.5 mm (0.26 in.)
Cross section: 7 × 0.14 mm
2
Operating temperature:
−20…+70 °C (−4…+158 °F)
Material: PUR jacket; orange
Features: Twisted pair shielded
Cable Ø: 6.4 mm (0.25 in.)
Cross section: 3 × 2 × 0.25 mm
2
Operating temperature:
−30…+80 °C (−22…+176 °F)
Material: PUR jacket; black
Cable Ø: 7.2 mm (0.28 in.)
Cross section: 3 × 2 × 0.2 mm
2
Operating temperature:
−30…+80 °C (−22…+176 °F)
Material: PVC jacket; gray
Features: Twisted pair shielded
Cable Ø: 6 mm (0.24 in.)
Dimensions: 3 × 2 × 0.14 mm
2
Operating temperature:
−10…+80 °C (−14…+176 °F)
Profile (RF) Pressure rods (RF)
Profile with flange
HFP [length mm: XXXXX] M
HFP [length in.: XXXX.X] U
Pressure rod with flange
M18×1.5-6g (flat-faced flange)
HD [length mm: XXXX] M
HD [length in.: XXX.X] U
Pressure rod with flange
¾"-16 UNF-3A (flat-faced flange)
HL [length mm: XXXX] M
HL [length in.: XXX.X] U
Pressure rod with flange
¾"-16 UNF-3A (raised-faced flange)
HP [length mm: XXXX] M
HP [length in.: XXX.X] U
For: RF-C For: RF-C For: RF-C For: RF-C
Length: Max. 20,000 mm (787 in.)
Ingress protection: IP30
Material: Aluminum
See “Product Flash RF Profile”
(document part number: 551442)
for further information
Pressure rod Ø: 12.7 mm (0.5 in.)
Length: 255…7500 mm (10…295 in.)
Operating pressure: 350 bar (5076 psi)
Material flange:
Stainless steel 1.4305 (AISI 303)
Material rod:
Stainless steel 1.4301 (AISI 304)
See technical bulletin “RF pressure
housing pipe”
(document part number: 551770)
for further information
Pressure rod Ø: 12.7 mm (0.5 in.)
Length: 255…7500 mm (10…295 in.)
Operating pressure: 350 bar (5076 psi)
Material flange:
Stainless steel 1.4305 (AISI 303)
Material rod:
Stainless steel 1.4301 (AISI 304)
See technical bulletin “RF pressure
housing pipe”
(document part number: 551770)
for further information
Pressure rod Ø: 12.7 mm (0.5 in.)
Length: 255…7500 mm (10…295 in.)
Operating pressure: 350 bar (5076 psi)
Material flange:
Stainless steel 1.4305 (AISI 303)
Material rod:
Stainless steel 1.4301 (AISI 304)
See technical bulletin “RF pressure
housing pipe”
(document part number: 551770)
for further information
Flanges (RF) Programming tools
Flange M18×1.5-6g
Part no. 402 704
Flange ¾"-16 UNF-3A
Part no. 402 641
SSI display 6 digits
Part no. IX 345 – IX 348
Programming kit
Part no. 253 135-1 (EU)
Part no. 253 310-1 (US)
For: RF-C For: RF-C For: RP, RH, RD4, RT4, RF For: RP, RH, RD4, RT4, RF
For: RF-C
Material:
Stainless steel 1.4305 (AISI 303)
For: RF-C
Material:
Stainless steel 1.4305 (AISI 303)
Housing: 96 × 48 × 141 mm
(3.78 × 1.89 × 5.55 in.)
Cutout: 91 × 44 mm
(3.58 × 1.73 in.)
Kit includes: interface converter box,
power supply and cables
Software is available at:
www.mtssensors.com
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
