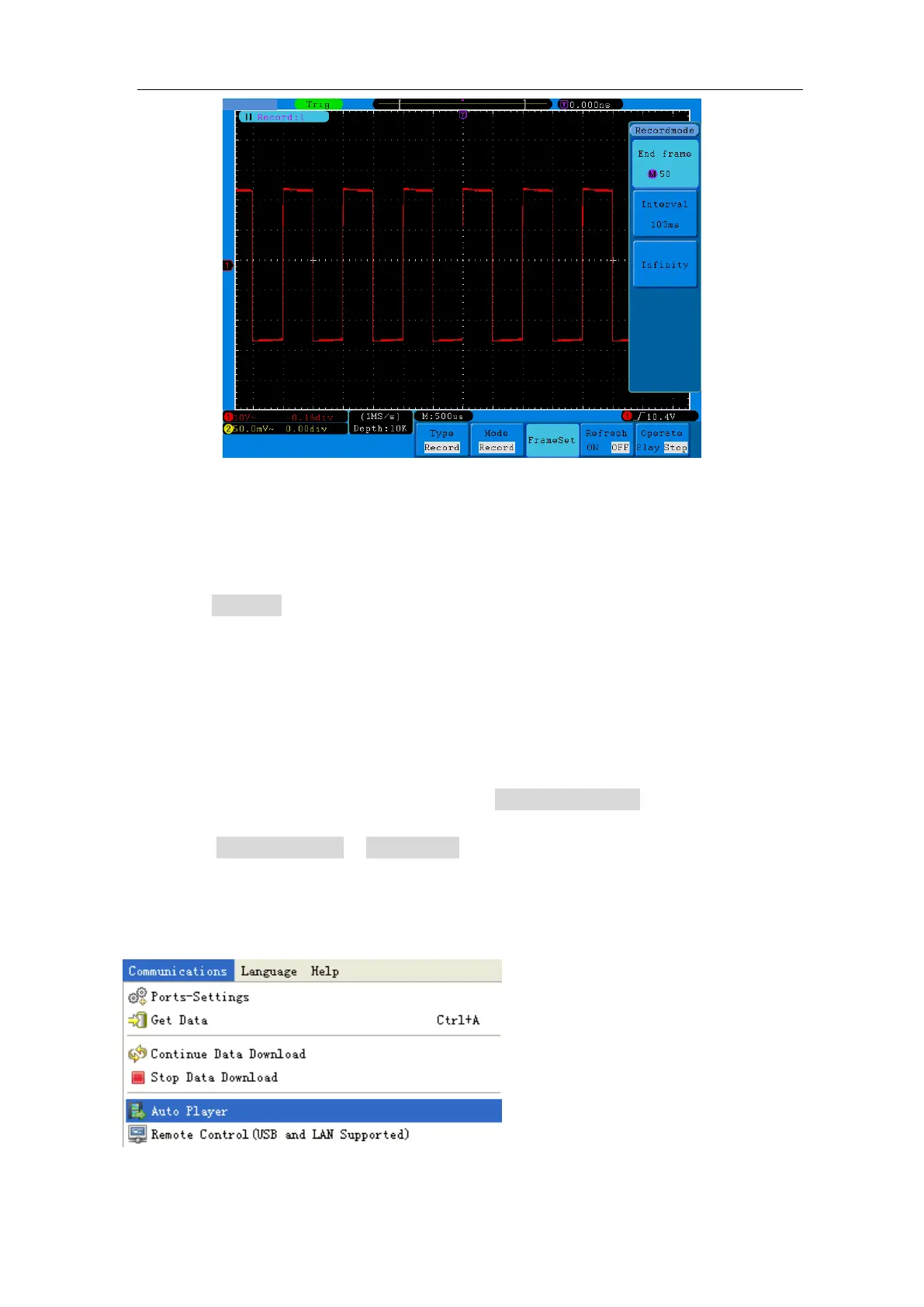

Figure 5-56: Frame setting (External Storage)
To use wave record to external, do as follows:
1. Press Save button.
2. Press H1 button, turn the M rotary control to choose Record.
3. Press H2 button. In the Mode menu, press F2 button to choose Record. Press H3 to
choose External as the storage medium.
4. Press H3 button. In the Frame Set menu, press F1 button and turn the M rotary
control to set End frame; press F2 button and turn the M rotary control to select the
interval between recorded frames. Press F3 to wave record to external infinitely if
necessary, and end frame will display “-”.
5. Press H4 button, choose whether to refresh the wave when recording.
6. Press H5 button to start recording.
Connect external device to the computer, and wave_record_0.bin is the recorded file.
Open the software, and do as follows to play back the waveform.
1. Choose Communications Auto Player.
2. Transform recording waveform from machine.
3. Add the well transformed files.
4. Set play mode and time delay.
5. Click the green button on the left corner to begin playing back the waveform.
