Figure 5-62：Probe Checking
● Pass/Fail
The Pass/Fail function monitors changes of signals and output pass or fail signals by
comparing the input signal that is within the pre-defined mask.
Press the Utility button and turn the M rotary control to select the Pass/fail to go to the
following menu.

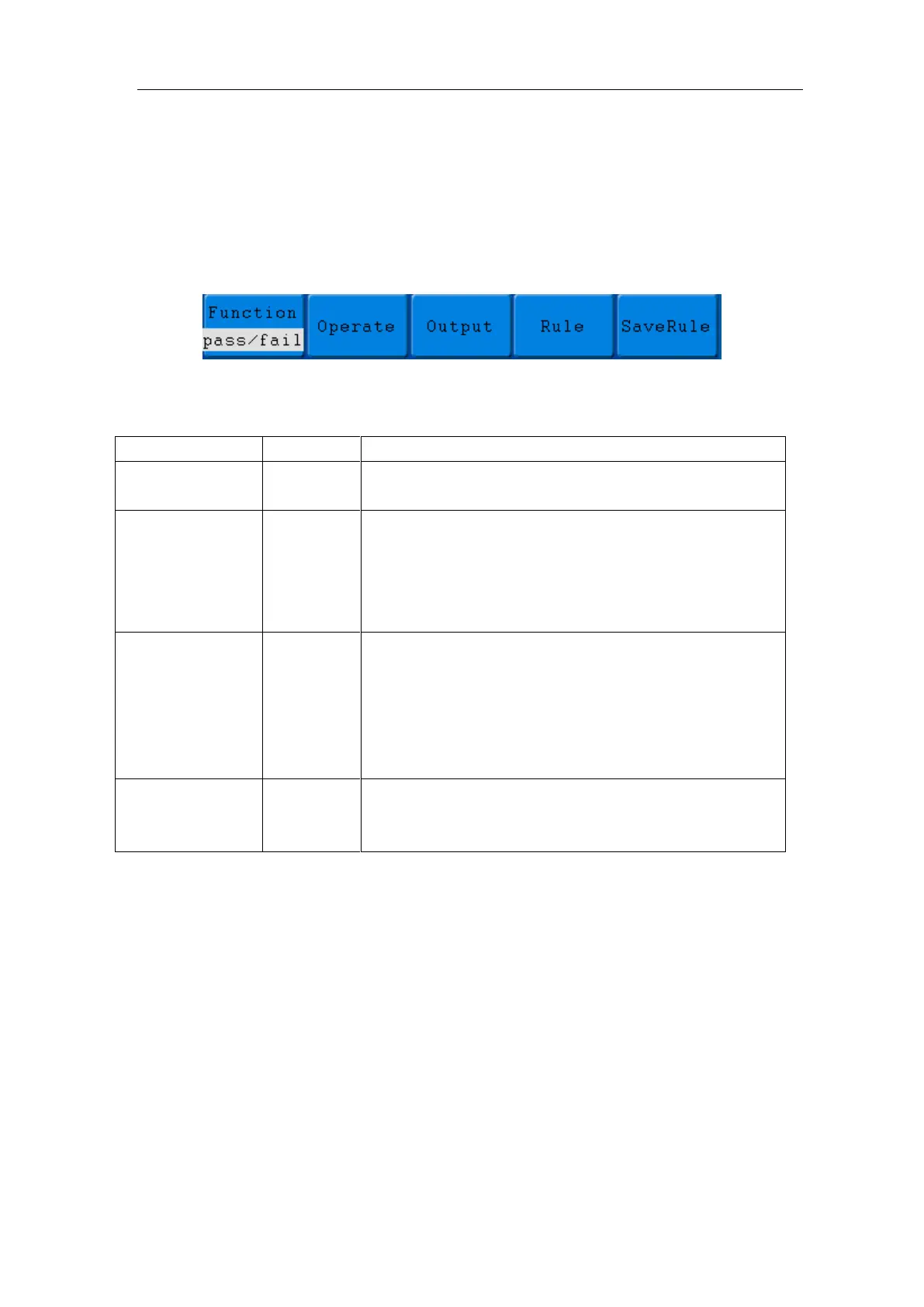

Figure 5-63 Pass/Fail menu
The description of Pass/Fail Menu is shown as the follows:
Pass/Fail test:
Detect whether the input signal is within the limits of the rule, if it exceeds limits of the
rule, it is "Fail"; otherwise it is "Pass". Also it can output fail or pass signal by built-in and
configurable output port. To run the test, read the following steps:
1. Press Utility button, then H1 button, turn the M rotary control to choose Pass/fail
menu option, Pass/Fail menu will be displayed in the bottom.
2. Enable switch on: Press H2 button to show Operate menu, then, press F1 button to
set Enable as ON.
3. Create rule: Press H4 button to enter Rule setting menu. Press F1 button to choose
the source; Press F2 button, turn the M rotary control to set Horizontal tolerance; Press
F3 button, turn the M rotary control to set Vertical tolerance; Press F4 button to create
the rule.
4. Set output type: Press H3 button to enter Output option setting. Choose any one or
two of the options "Pass", "Fail" or "Beep". "Pass" and "Fail" are mutually exclusive
Control enable switch
Control operate switch
Signal tested corresponds with the rule
Signal tested not correspond with the rule
Beep when it satisfies the rule
Stop once satisfying the rule
Control the display status of info frame
Source
Horizontal
Vertical
Create
Select source CH1, CH2 or Math
Change the Horizontal tolerance value by turning the
M rotary control
Change the Vertical tolerance value by turning the
M rotary control
Use the rule set as testing rule
Choose any one from Rule1 - Rule8 as your rule name
Click Save to save the rule
Load some rule as the testing rule
