multivac C 500 - Putting the Filler Plates and Filled Pouches in the Chamber

Operation
Betriebsanleitung 07.06.2005 20/43
ba_c500_50s2GB06.fm ega

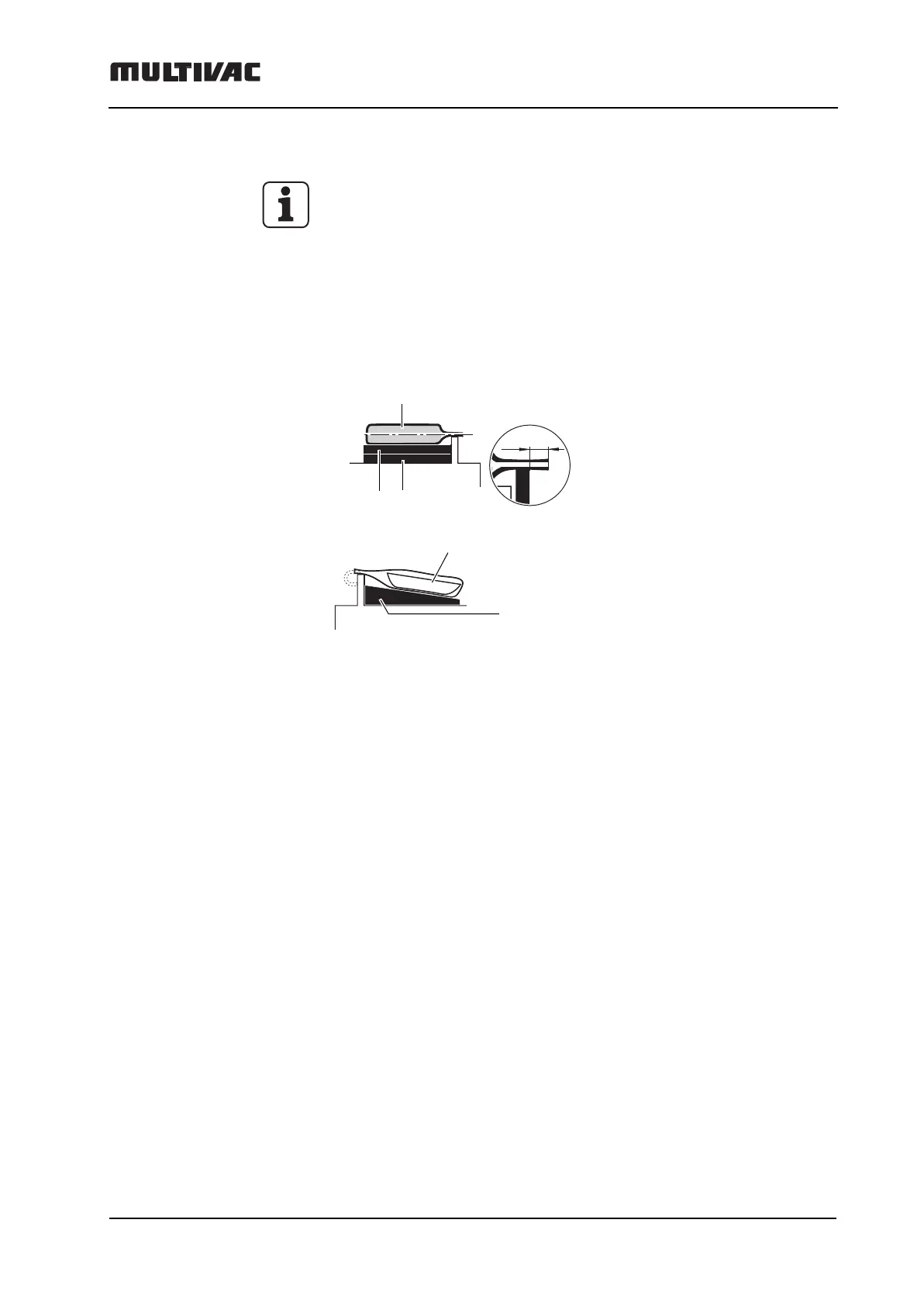

Putting the Filler Plates and Filled Pouches in the Chamber
The filler plates should reduce the volume of the chamber which is to be
evacuated and correctly position the pouch on the sealing bar.
The pouch collar should lie at about mid-height of the pouch level. Thus
folds in the sealing seam can be avoided.
– Establish the correct support height using the filler plates.
– Lay the pouch collar fold-free over the sealing bar.
Pouch collar must project over the sealing bar by approx. 2–3 cm.
Pouch collar must not protrude from the chamber, otherwise the
pouch will not be evacuated.
Filler plates
Pouch with product
2 –3 cm
Use the diagonal insert for packing
soups, sauces
Pouch with product
Diagonal insert
