(Revised 2011-07-21) Page 11 of 158
DIN RAIL MOUNTING
Install the unit on a standard 35mm Din-Rail. Recess the 7506GX2 unit to allow at least 3‖ of horizontal
clearance for copper cable bend radius. Recess the 7506GX2 unit to allow at least 5‖ of horizontal
clearance for fiber cable bend radius. There should be at least 3‖ of clearance on both the top and bottom of
the unit to allow proper ventilation.

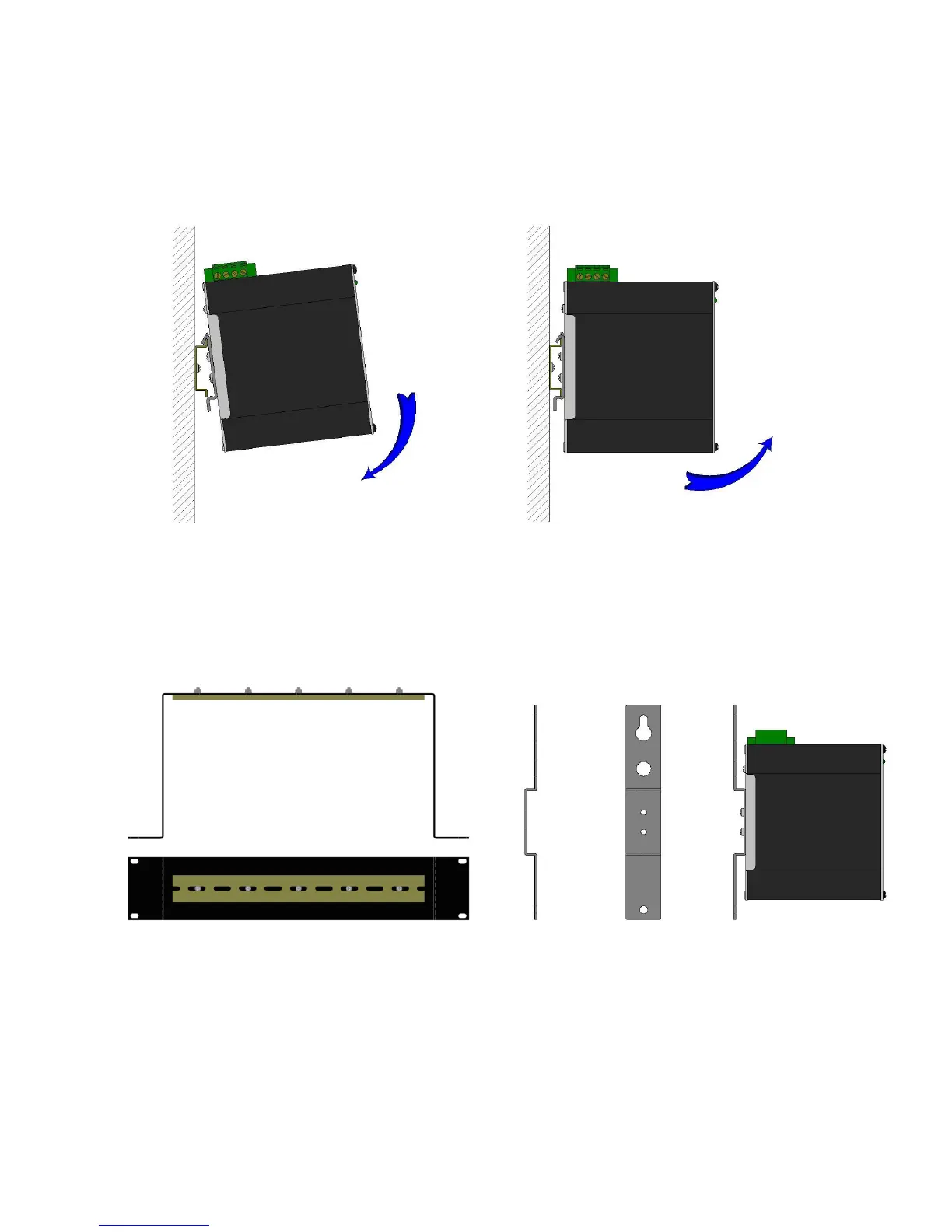

To install the unit to 35mm industrial DIN rail,
place the top edge of the included mounting
bracket on the back of the unit against the DIN rail
at a 15° angle as shown. Rotate the bottom of the
unit to the back (away from you) until it snaps into
place.
To remove the unit from the 35mm industrial
DIN rail, pull forward on the unit until it disengages
from the bottom of the DIN rail. Rotate the bottom
of the unit towards you and up at an approximate
15° upward angle to completely remove the unit.
URMK 1000-PM
Most N-Tron™ products are designed to be mounted on industry standard 35mm DIN rail. However, DIN
rail mounting may not be suitable for all applications. Our Universal Rack Mount Kit (P/N: URMK) may be
used to mount the 7506GX2 enclosure to standard 19" racks, and our Panel Mount Assembly (P/N: 1000-
PM) may be used to mount the 7506GX2 enclosure to a panel or any other flat surface.
