Nailor 35SW - Page 6

SCHEDULE TYPE:
PROJECT:
ENGINEER:
CONTRACTOR:
Nailor Industries Inc. reserves the right to change any information concerning product or pricing without notice.
DATE B SERIES SUPERSEDES DRAWING NO.
3 - 25 - 17 3500 2 - 8 - 16 35S-CVP-1
Page 2 of 2.
Dimensions are in inches (mm).

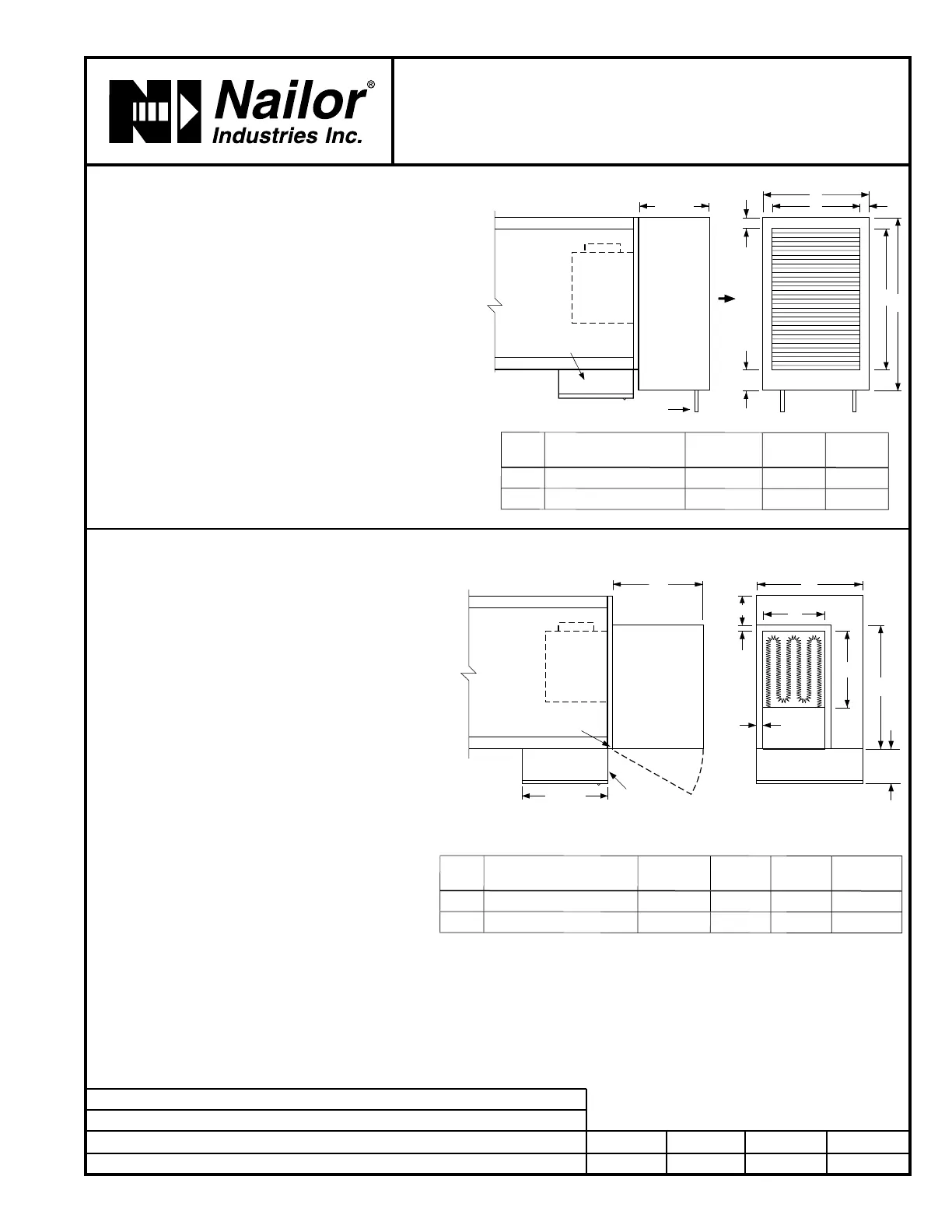

FAN POWERED PRESSURIZATION TERMINAL UNIT
EPIC ECM MOTOR • HEAT ACCESSORIES
SERIES FLOW • CONSTANT VOLUME
MODELS: 35SW-CVP AND 35SE-CVP • UNIT SIZES 3 & 5
FAN
12" (305)
3 9/16"
(90)
D
E
C
1 13/16"
(46)
J
COIL CONNECTIONS
HINGED FAN
CONTROLS
ENCLOSURE
H
q Hot Water Coil Section Model 35SW-CVP
Standard Features:
• Coil section installed on unit discharge.
• Coil (and header on multi-circuit units) is installed in
insulated casing for increased thermal efficiency.
• 1/2" (13) copper tubes.
• Aluminum ripple fins.
• Sweat Connections: Size 3 one row 1/2" (13) O.D. male
solder. All others 7/8" (22) O.D. male solder.
• Top and bottom access panels for inspection and coil
cleaning. Caulked for low leakage.
• Flanged outlet duct connection.
Coil Rows:
q
1-Row q 2-Row q 3-Row
Coil Hand Connections:
(Looking in direction of airflow).
q Right hand (illustrated). Standard.
q Left hand. Optional.
q Electric Coil Section Model 35SE-CVP
Standard Features:
• Unique hinged heater design permits easy access,
removal and replacement of heater element without
disturbing ductwork.
• Coil installed on unit discharge.
• Insulated coil element wrapper.
• Automatic reset high limit cut-outs (one per element).
• Single point electrical connection (except 600V).
• Positive pressure airflow switch.
• Flanged outlet duct connection.
• Class A 80/20 Ni/Cr wire.
• Terminal unit with coil is ETL Listed as an assembly.
• Controls mounted as standard on RH side as shown.
Terminals ordered with LH controls (optional) are inverted
and discharge duct hanging elevation will therefore
change.
Voltage:
Single phase, 60 Hz.
q 120V q 208V q 240V q 277V
Three phase, 60 Hz.
q 208V q 480V (4 wire wye).
q 600V (Dual Point Connection). q ___________ .
Options:
q
Toggle disconnect switch (includes fan).
q Door interlock disconnect switch.
q Mercury contactors.
q Power circuit fusing.
q Dust tight construction.
q Manual reset secondary thermal cut out.
q SCR Control.
Unit
Size
Outlet Duct Size
C x D
E H J
3
16 x 14 7/8 (406 x 378) 21 3/8 (543) 18 (457) 1 9/16 (40)
5
24 x 14 7/8 (610 x 378) 29 3/8 (746) 18 (457) 1 9/16 (40)
Unit
Size
Outlet Duct Size
F x G
K H M N
3
10 1/4 x 10 1/2 (260 x 267) 15 1/2 (394) 18 (457) 2 1/2 (64) 15 1/4 (387)
5
14 1/4 x 11 3/4 (362 x 298) 22 (559) 18 (457) 4 (102) 15 1/4 (387)
FAN
N
5 1/2"
(140)
G
H
K
F
1"
(25)
M
1"
(25)
14" (356)
HINGED FOR
ELEMENT REMOVAL
ELECTRIC COIL
AND HINGED FAN
CONTROLS ENCLOSURE
