Nailor 35SW - Quick Start Configuration Guide - Ezvav Sensors & Controllers

IOM-EZVAVINST
Date: 10-2016 Supersedes: 7-2016
Nailor reserves the right to change any information concerning product or specification without notice or obligation.
Page 28 of 48
Installation and Operation Manual
●
EZvav Digital Controls
CNFG The main conguraon parameters for the VAV terminal unit.
COMM Set BACnet device instance, MAC address and network baud.
BLNC Set airow balancing parameters. Only the PRI (primary) menu
is used for single duct VAV Terminal Units.
STPT Enter temperature set point and limits.
BOX Set up reheat, fan operaon and basic terminal unit funcons.
FLOW Set airow set point and limits.
ADVC Enter passwords and enable model specic features.
RSTR Restore to factory sengs.
For complete details on controller conguraon,
download IOM “IOM-EZVAVINST” from Nailor website.
* Not used for all models
** Select English (factory seng) or Metric before seng other parameters.

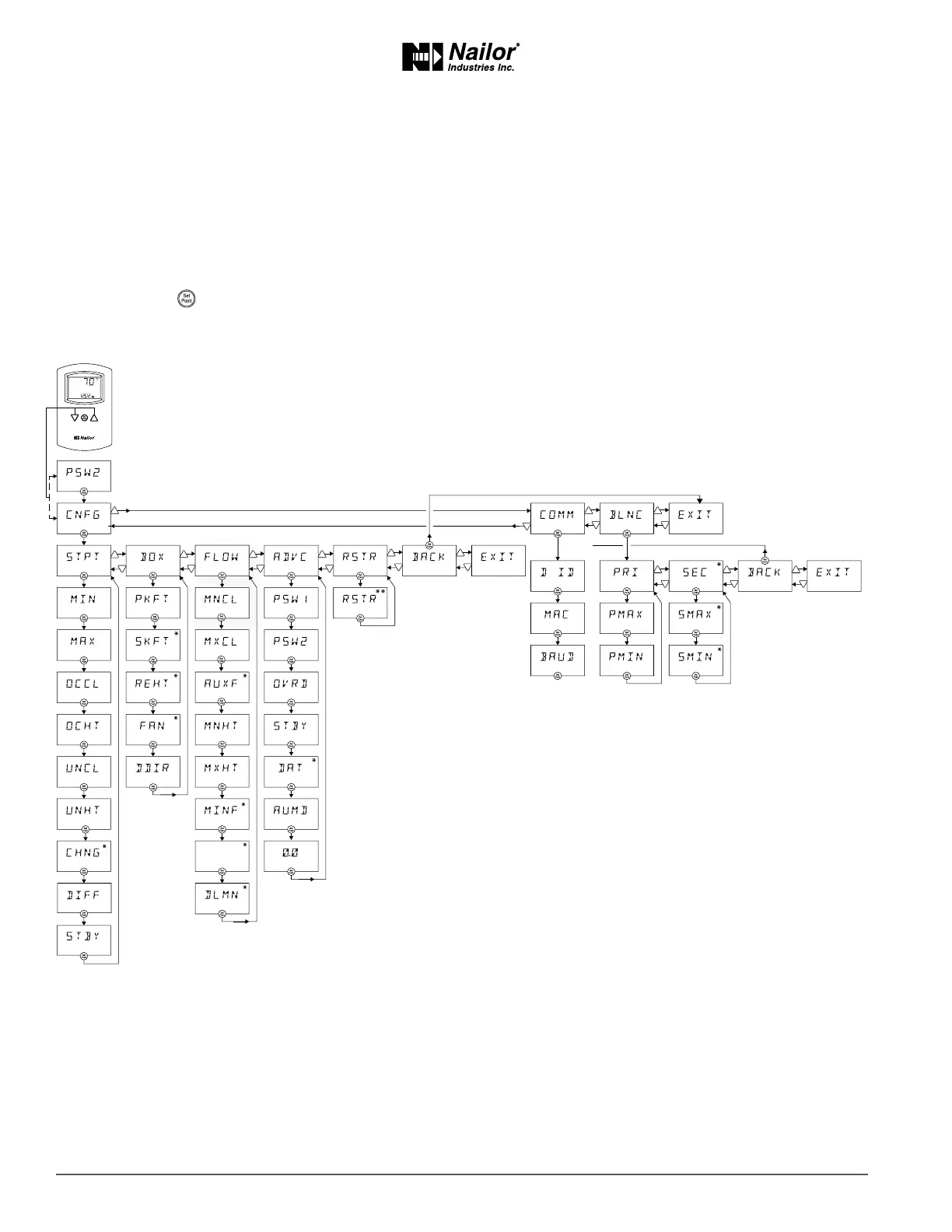

QuickStartConguraonGuide–EZvavSensors&Controllers
Use an STE-8001W36 or STE-8201W36 sensor to congure the EZvav controller. If another type of sensor is installed as the room
sensor, temporarily connect an STE-8001W36 as a service tool.
Togetstarted:
Press together the up ∆ and down buons to start conguraon or balancing.
Enter Password 2 if required. New installaons do not have a password.
Press the up ∆ or down buons to move between funcons or change values.
Press the set point
buon to choose a selecon or save a value.
Override timer
Standby timer
Discharge Air Temp
MAXF
Max. Fan Speed (%)
Calibration
Auto. Occ. Mode
Set Password 1
Set Password 2
Min, Cool Flow
Max. Cool Flow
Auxillary airflow
Max. Heat Flow
Min. Heat Flow
AdvancedSetpoints and limits
Min. Fan Speed (%)
Dual Minimum CFM
Primary K Factor
Secondary K Factor
No/Stg/Par
No/Ser/Par
CCW/CW
Unoccupied Heating
Cool Setpoint
Heat Setpoint
Occupied Cooling
Occupied Heating
Changeover
Unoccupied Cooling
Standby Differential
Temp. setpoints
Conguration
Optional
Differential
Restore
BACnet instance
BACnet MAC
Baud Rate
Primary
Measured Max. Flow
Measured Min. Flow
Secondary
End conguration
Measured Max. Flow
Measured Min. Flow
End conguration
End conguration
English/Metric
∆
∆
