Nailor 35SW - Page 78

IOM-EZVAVINST
Date: 10-2016 Supersedes: 7-2016
Nailor reserves the right to change any information concerning product or specification without notice or obligation.
Page 6 of 48
Installation and Operation Manual
●
EZvav Digital Controls
ActuatorSpecicaons
Torque 40 in-lb. (4.5 N.m)
Angular rotaon 0 to 95°
Adjustable end stops at 45° and 60° rotaon
Motor ming 90 sec./90° at 60 Hz
BAC-8001-36,BAC-8005-36, BAC-8007-36 108 sec./90° at 50 Hz
Motor ming BAC-8205-36 60 sec./90° at 60 Hz
Sha size Directly mounts on 3/8 to 5/8 inch (9.5 to 16 mm) round or 3/8 to 7/16 inch
(9.5 to 11 mm) square damper shas.
Regulatory
• UL 916 Energy Management Equipment.
• BACnet Tesng Laboratory listed as an applicaon specic controller (ASC).
• CE compliant.
• SASO PCP Registraon KSA R-103263.
• FCC Class B, Part 15, Subpart B and complies with Canadian ICES-003 Class B.
This device complies with part 15 of the FCC Rules. Operaon is subject to the following two condions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operaon.
Installaon
Supply voltage 24 volts AC, -15%, +20% 5 VA, 50/60 Hz
Weight 13.2 ounces (376 grams)
Case material Flame retardant plasc
Environmentallimits
Operang 32 to 120° F (0 to 49° C)
Shipping –40 to 140° F (–40 to 60° C)
Humidity 5 – 93% relave humidity (non condensing)

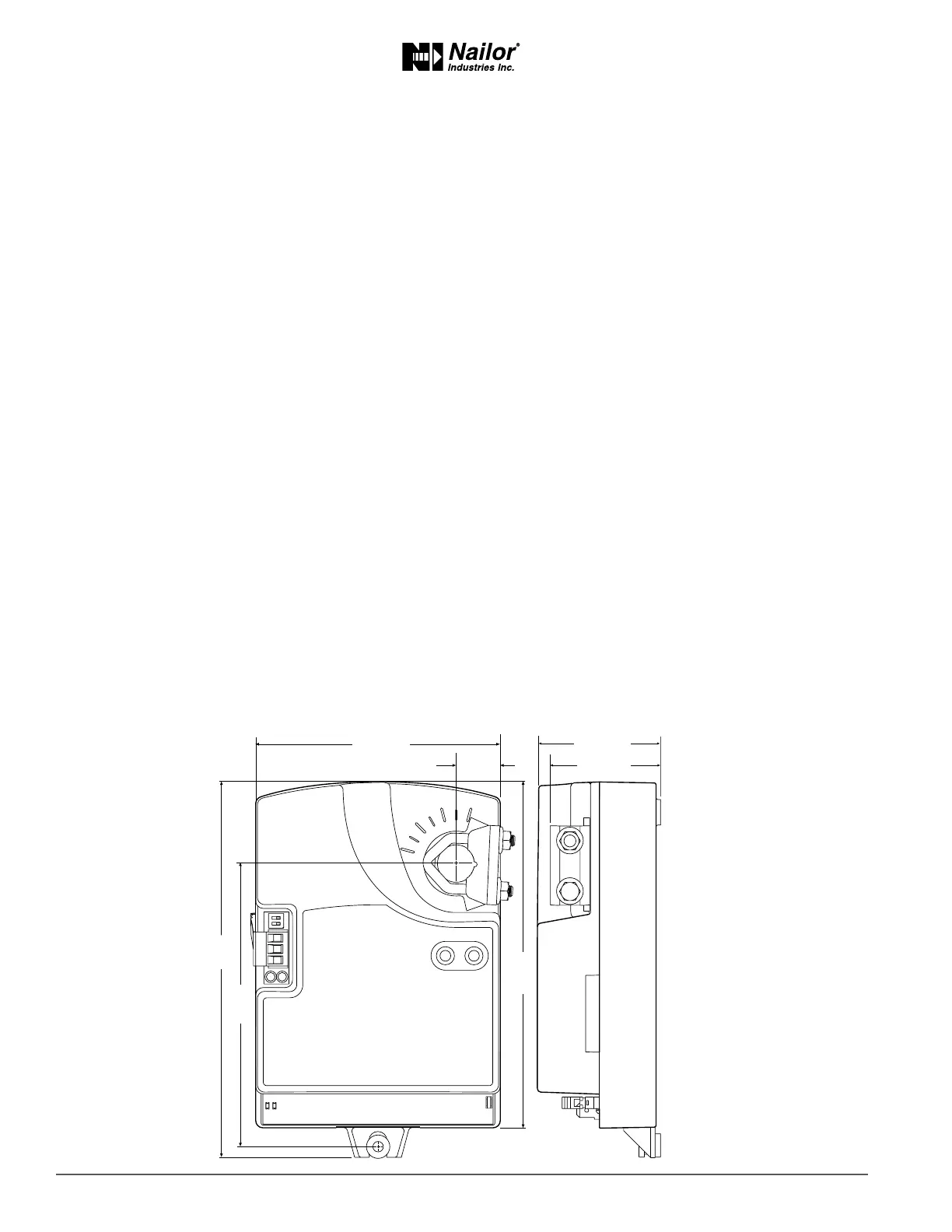

Dimensions
1.92" (49)
4.25" (108)
0.77"
(19)
6"
(152)
6.53"
(166)
4.89"
(124)
4.14" (54)
