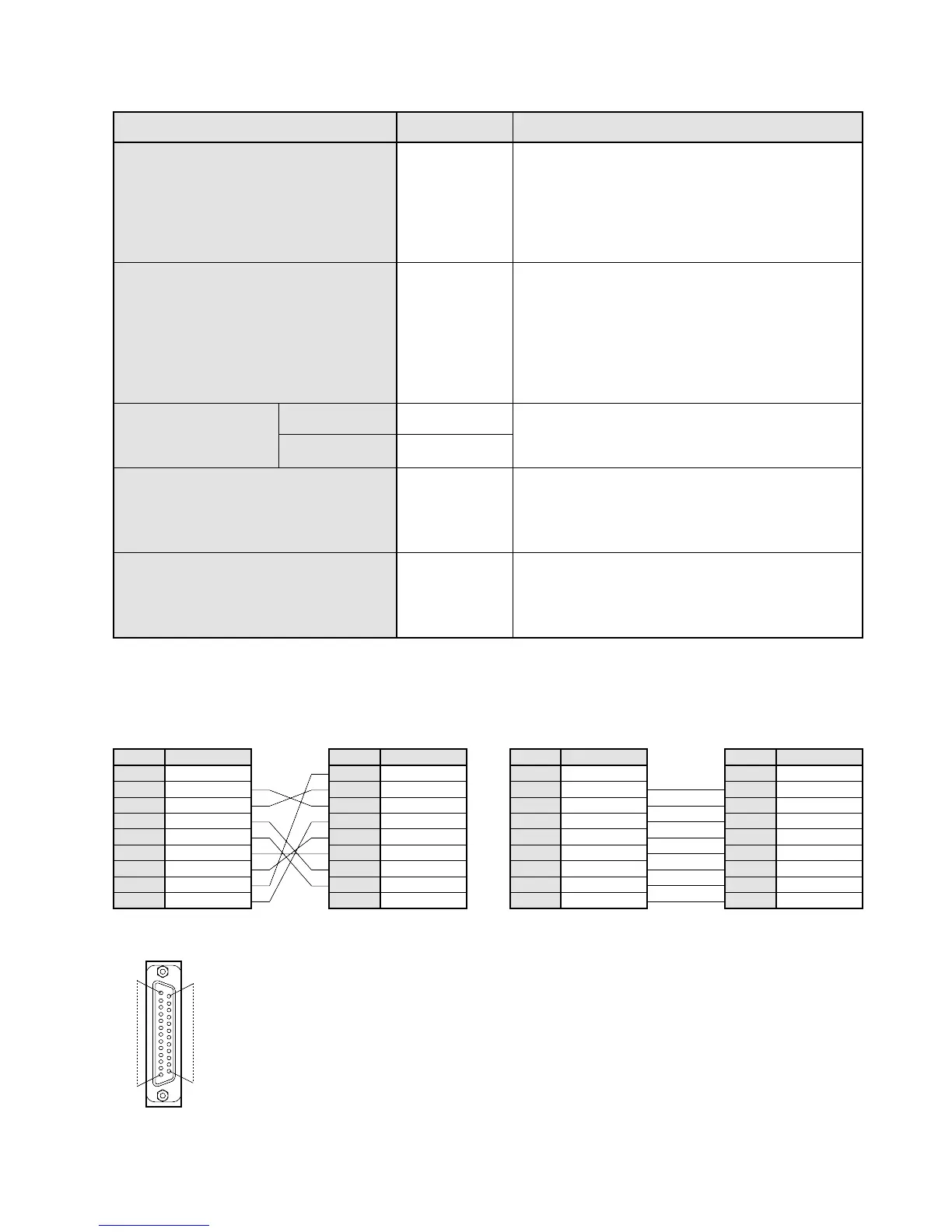

1 RS422/232C Adapter & IBM PC-AT (9 pin)
2 RS422/232C Adapter & personal computer (25 pin)
Connected to
RS422/232C Adapter
(25-pin male type)
Connected to
IBM PC-AT side
(9-pin female type)
Connected to
RS422/232C Adapter
(25-pin male type)
Connected to
personal computer side
(25-pin male type)
Pin No.
1
2
3
4
5
6
7
8
20
Abbreviation
FG
SD (TXD)
RD (RXD)
RS (RTS)
CS (CTS)
DR (DSR)
SG
CD (DCD)
ER (DTR)
Pin No.
1
2
3
4
5
6
7
8
9
Abbreviation
CD (DCD)
RD (RXD)
SD (TXD)
ER (DTR)
SG
DR (DSR)
RS (RTS)
CS (CTS)
RI (CI)
Pin No.
1
2
3
4
5
6
7
8
20
Abbreviation
FG
SD (TXD)
RD (RXD)
RS (RTS)
CS (CTS)
DR (DSR)
SG
CD (DCD)
ER (DTR)
Pin No.
1
2
3
4
5
6
7
8
20
Abbreviation
FG
SD (TXD)
RD (RXD)
RS (RTS)
CS (CTS)
DR (DSR)
SG
CD (DCD)
ER (DTR)
*RS232C interface connector pins of RS422/232C Adapter
(25-pin female type)
1
25
13
14
Type
NPST-GR Software Ver.3
NPST-GR Software Ver.2
FP1 Peripheral Cable
RS422/RS232C Adapter
RS232C Cable
Part number
AFP266538
AFP266528
AFP15205
AFP1523
AFP8550
Needs to be
made to match
your computer
Description
Program editing software for use with
commercially available computers.
(System required:
IBM PC-AT or 100%
compatible with 4MB or more EMS, 2MB or
more hard disk space, MS-DOS Ver. 5.0 or
later, and EGA or VGA display mode)
Program editing software used with
commercially available computer.
(System required:
IBM PC-AT or 100%
compatible)
Some instructions (compare instructions such
as “ST =”) cannot be programmed with
NPST-GR Ver. 2.
Cable needed for connection between the
Control Unit’s RS422 port and the RS422/232C
Adapter’s RS422 port.
RS422 ↔ RS232C signal converter.
Used for connection between the computer’s
RS232C port and the FP1 Control Unit’s RS422
port when programming with NPST-GR.
Cable needed for connection between the
RS422/232C Adapter’s RS232C port and your
computer.
Refer to the wiring example below.
0.5 m/1.640 ft.
3 m/9.843 ft.
