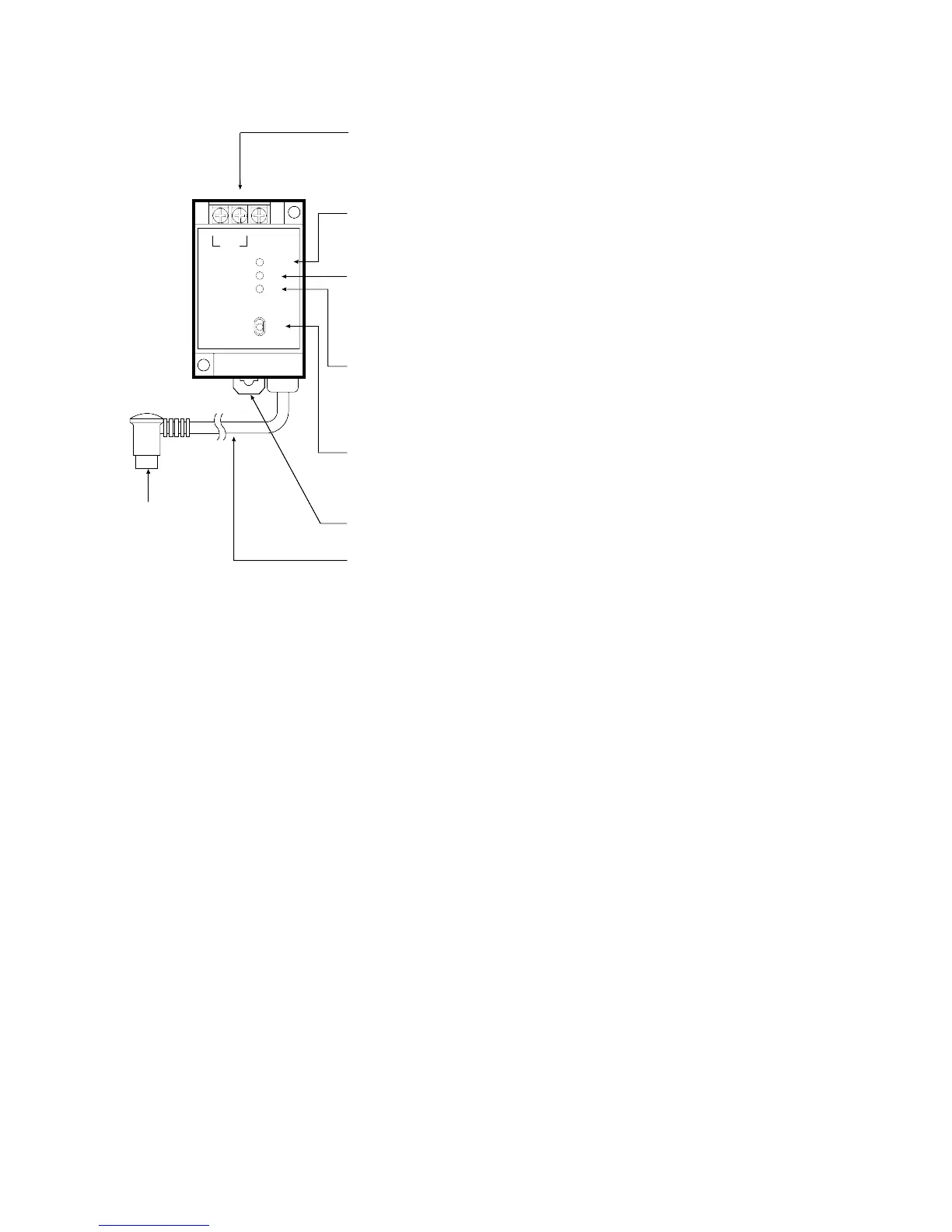

RS485 Interface
Connects to the RS485 interface on the C-NET Adapter or
other C-NET Adapter S1 Type using transmission cable
(shielded twisted pair or 2-conductor cable).
POWER LED (green)
Flashes:
OFF:
Send Data Monitor LED
(green)
Flashes:
OFF:
Receive Data Monitor LED
(green)
ON:
OFF:
TERMINATE Switch
Turn this switch ON when the adapter is installed
at terminal station.
DIN Rail Attachment Lever
Cable
Connects the cable to the programming tools
connector (RS422 port) of FP1 Control Unit.
RS422 port
when receiving power
when not receiving power
when sending
when not sending
when receiving
when not receiving
C-NET
ADAPTER
S1-TYPE
ON
OFF
RD
SD
POWER
TERMINATE
NAIS
F. G
+ -
RS485
