4-5. Memory Unit Creation and ROM Operation

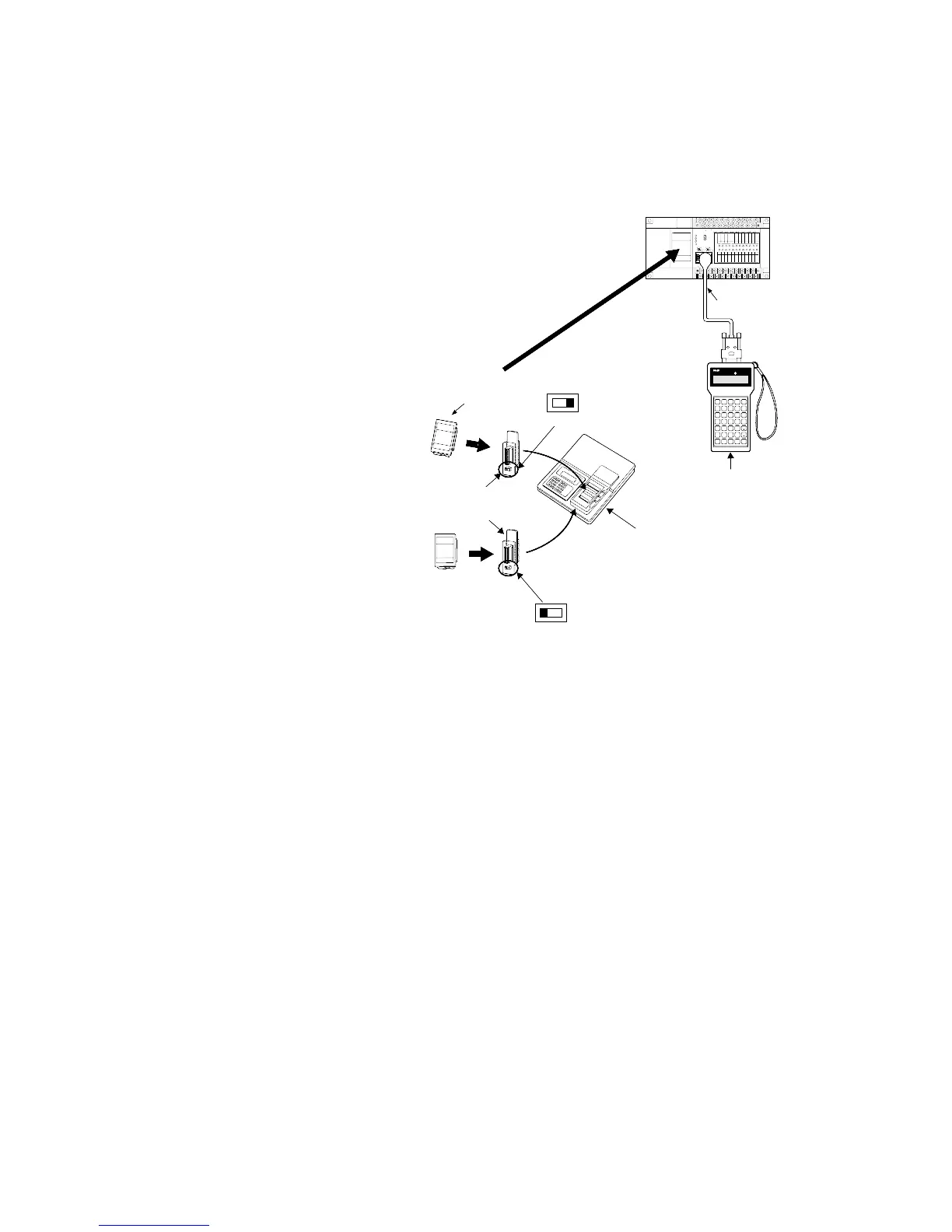

■ Writing a program to the memory (EPROM) via the master memory (EEPROM) with a
commercially available ROM programmer
[FP1’s internal RAM → master memory unit (EEPROM) → ROM programmer memory → memory (EPROM)]
Procedure:
1 Attach master memory unit
(EEPROM) to the FP1 Control
Unit. Transfer to master memory
unit (EEPROM) using FP
Programmer II in FP1’s internal
RAM. Remove master memory unit
(EEPROM) from FP1, and attach to
commercially available ROM
programmer.
2 Transfer contents of that master
memory unit (EEPROM) to the
internal memory of the ROM
programmer. Replace the ROM
programmer’s master memory
(EEPROM) with the memory
(EPROM).
3 Write the contents of the ROM
writer’s internal memory to the
memory unit (EPROM).
Necessary tools
• FP1 Peripheral Cable:
0.5 m / 1.640 ft.: AFP15205
3 m / 9.843 ft.: AFP1523
• FP Programmer II: AFP1114
• Socket adapter for FP ROM Writer: AFP1810
• Master Memory Unit (EEPROM): AFP1202 (for C24 and C40 series)
AFP1203 (for C56 and C72 series)
• Memory Unit (EPROM): AFP1201
• Commercially available ROM programmer: We recommend Aval Data Corporation’s PECKER 11.
