When the result type is selected in the measurement settings, the result type displayed
in the graphical display also switches over automatically.
Detector Selection via mea-
surement settings
Main field Supplementary
field
Top Bottom
RMS
(no
HF probes)
ACTUAL ACTUAL X Y Z MAX, AVG
MAXIMUM MAX ACTUAL
AVERAGE AVG ACTUAL
Peak
(BFD-400-1
only)
ACTUAL ACTUAL X Y Z MAX
MAXIMUM MAX ACTUAL
The display in detail

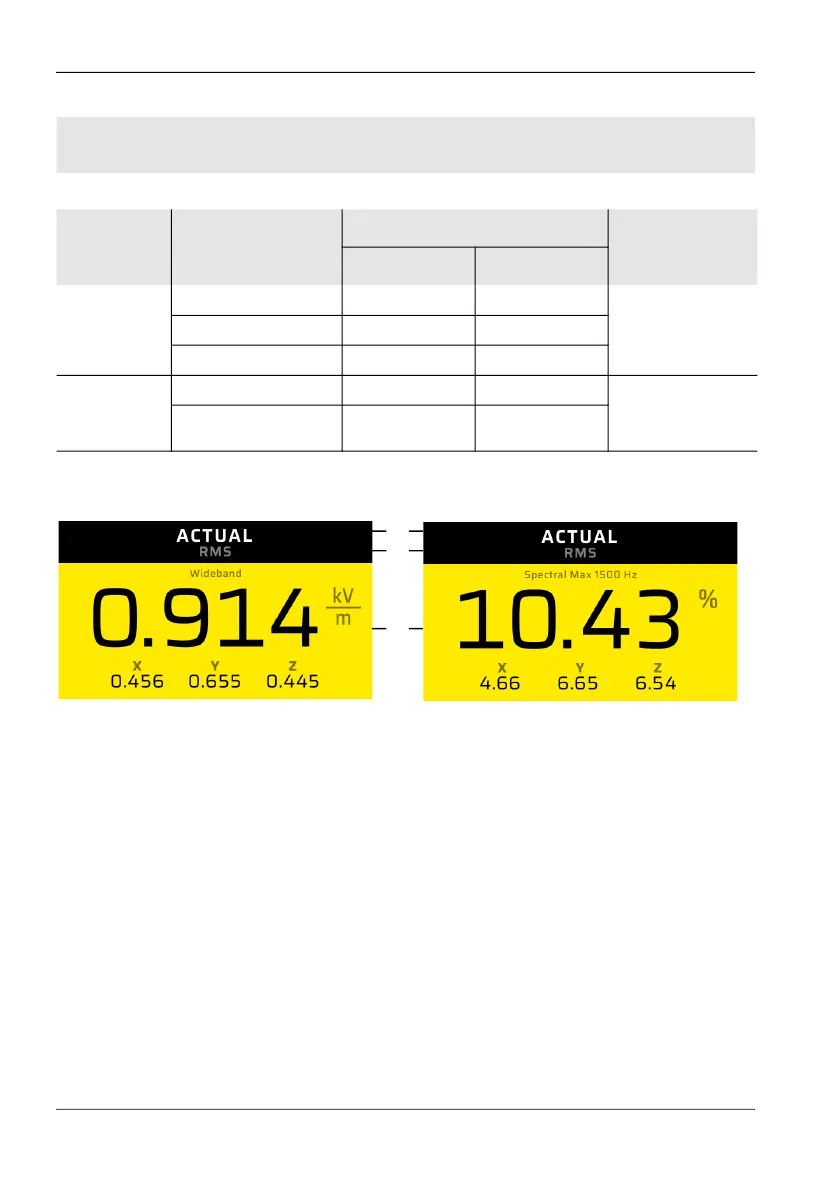

Fig. 11: SPECTRUM operating mode: Numerical display of the broadband values (left) and the
highest spectral line in % of the selected standard (right).
1 Selected result type (selection in MEASUREMENT SETTINGS)
2 Selected detector (selection in MEASUREMENT SETTINGS)
3 Main field: Result type ACTUAL
– Left: Current isotropic value and the three axes
– Right: Current isotropic value and the three axes for the highest line of the
normalized spectrum with frequency indicated
Reset the measured values:
⇒ MEASUREMENT SETTINGS > Reset Results > ● key.
↳ The measured values are reset and the menu is closed.
