VS1 Operations and Maintenance Manual Operating the transmitter
Page 2-74 Issue 3.1 2013-10-01

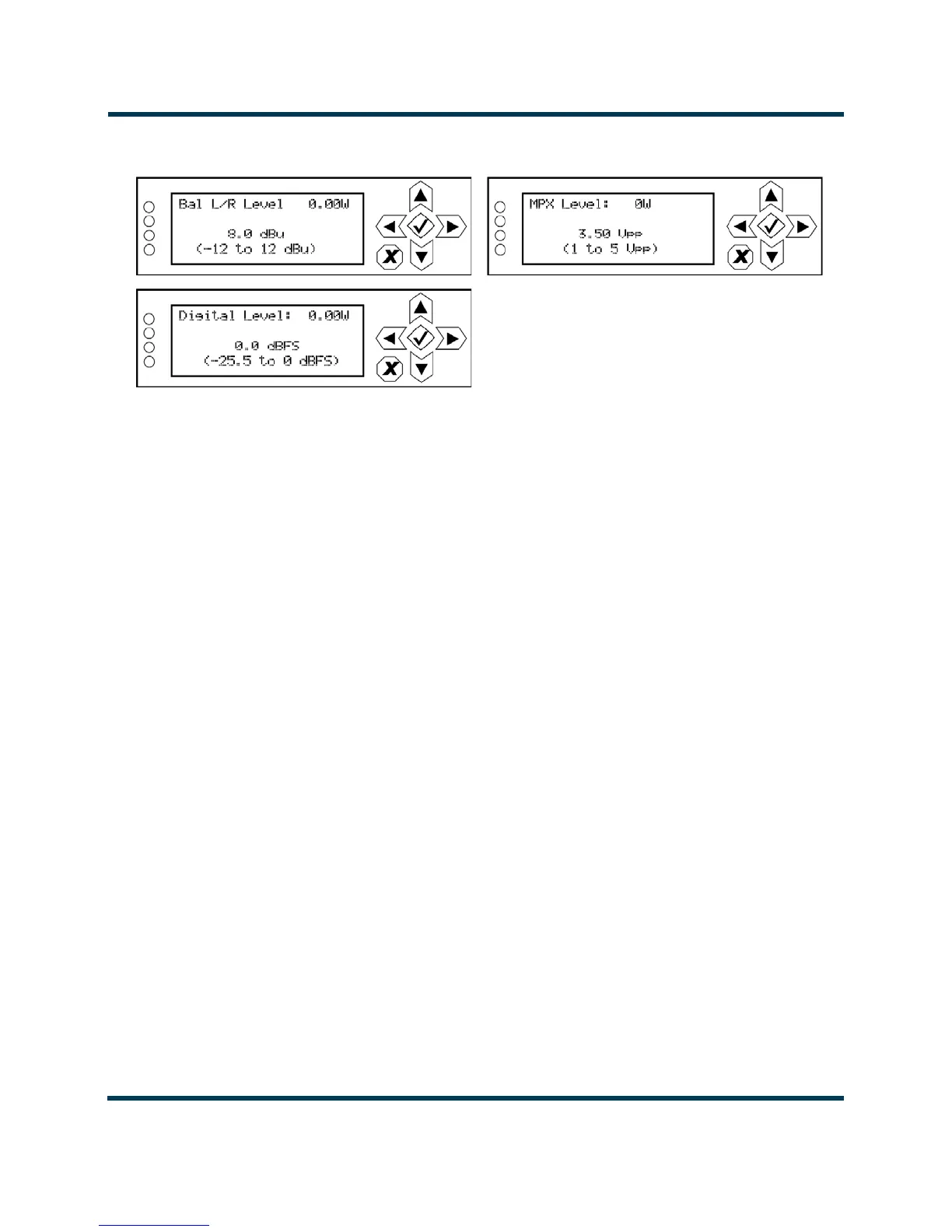

Figure 2.57: Input Levels editing screens
• Bal L/R Level: Select a level between -12 and 12 dBu.
• MPX Level: Select a level between 1 and 5 V peak-to-peak.
• Digital Level: Select a level between -25.5 and 0 dBFS.
