Pilot Settings. When you select Pilot Settings from the Preset editing options screen, you can edit
the settings of the pilot signal (see Figure 2.58).

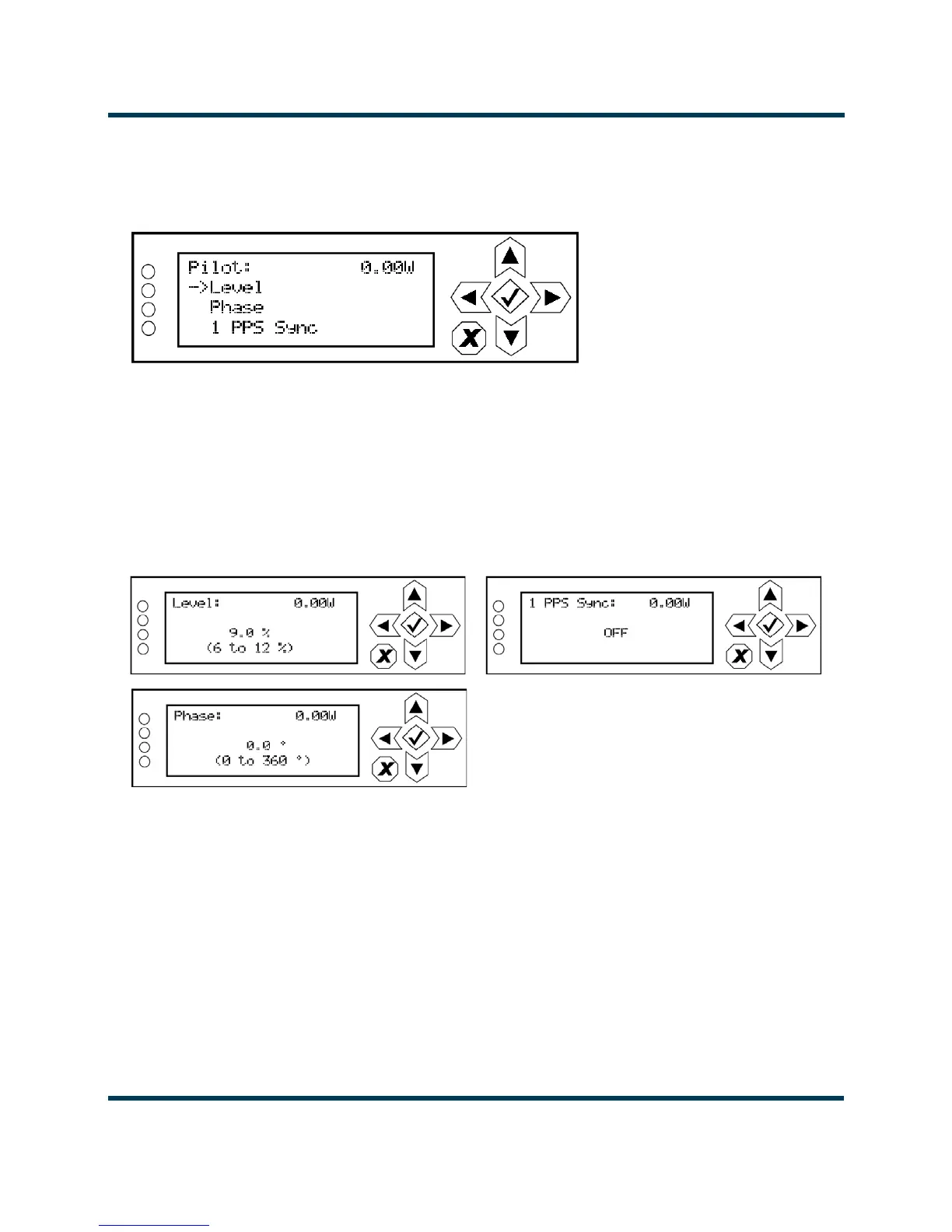

Figure 2.58: Pilot Settings menu
Use the up and down buttons to move the cursor to the desired pilot setting and then press the right
button to enable editing of the parameter. Figure 2.59 shows all the editing screens for the
Pilot
Settings
menu. Within any of the editing screens, use the up and down buttons to edit or toggle a
parameter value, noting the minimum and maximum limitations indicated at the bottom of the
display. When complete, press the accept (checkmark) button to save the change. Press the cancel (X)
button to discard changes and return to the previous menu.
Figure 2.59: Pilot Settings editing screens
• Level: Select a level between 6 and 12%.
•
Phase: Select a phase angle between 0 and 360 degrees.
•
1 PPS Sync: Select ON or OFF.
