VS1 Operations and Maintenance Manual Operating the transmitter
Page 2-48 Issue 3.1 2013-10-01

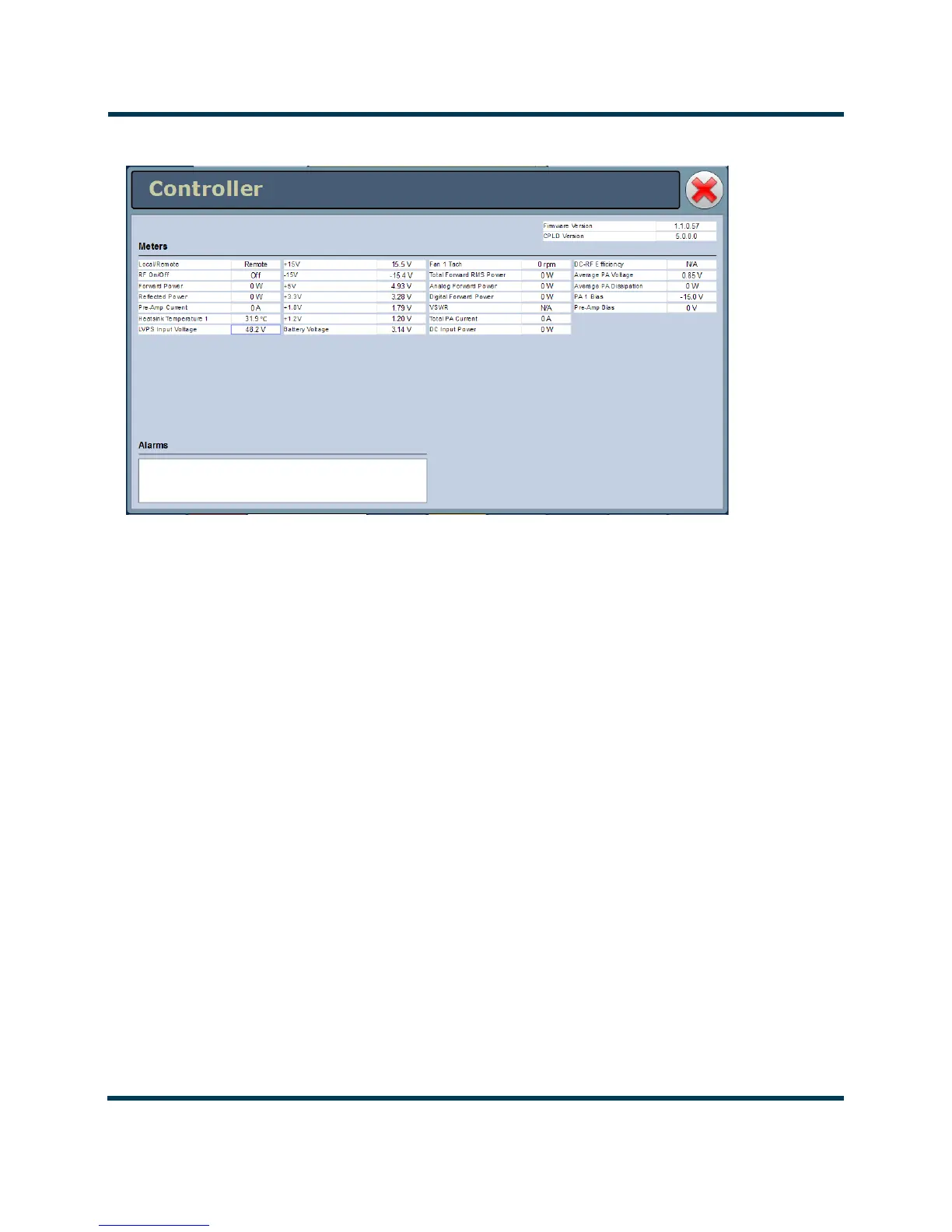

Figure 2.34: Detailed Sub-System Information (Controller shown)
Figure 2.34 displays the status of the selected sub-system, as well as real-time meter values. The
Alarms section shows any active alarms pertaining to the sub-system.
