Frequency. See Figure 2.51. Use the up and down buttons to edit the output power (in 0.01 MHz
increments, then press the accept (checkmark) button to save the change. Press the cancel (X) button
to return to the previous menu.

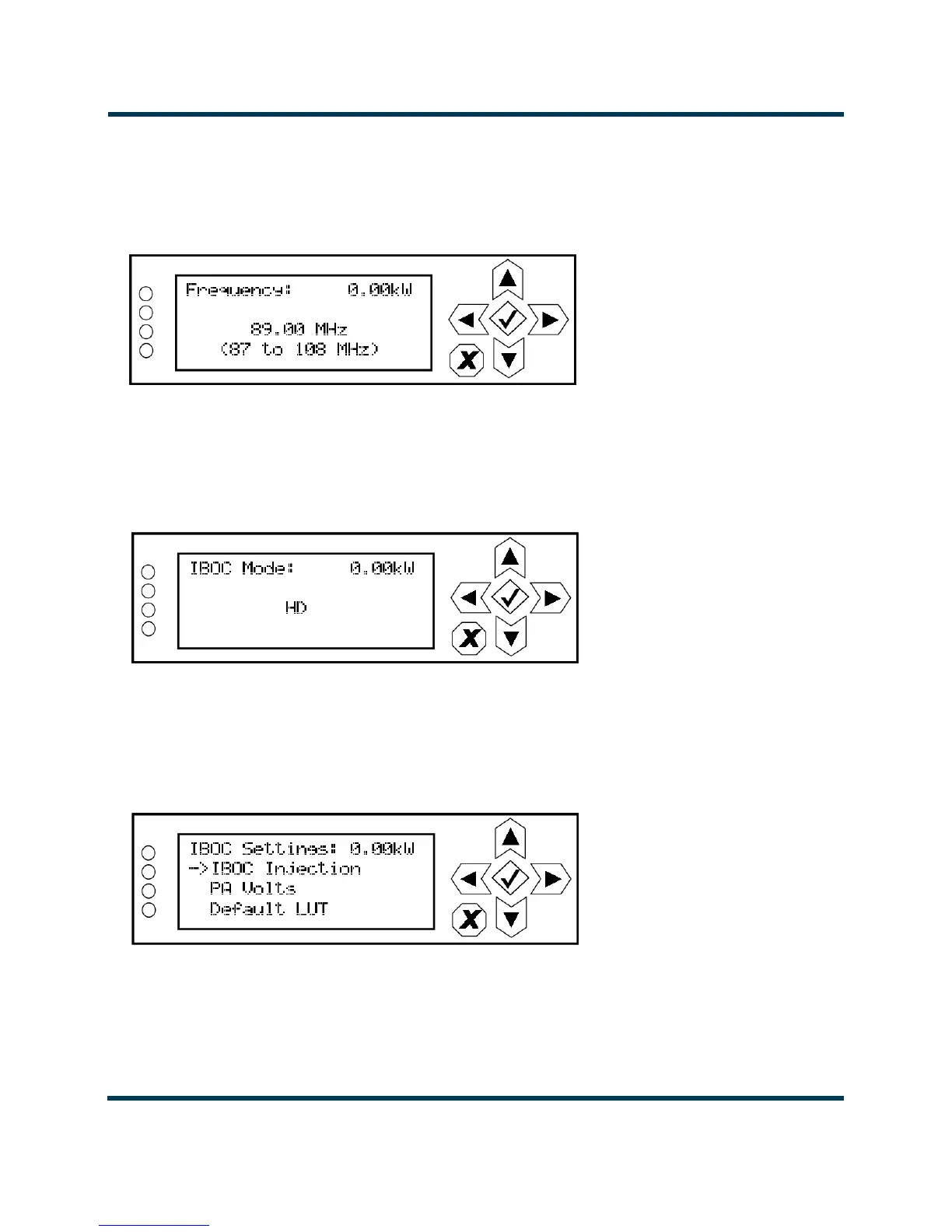

Figure 2.51: Frequency screen
IBOC Mode. See Figure 2.52. Use the up and down buttons to locate the desired mode of
operation - FM, FM+HD or HD, then press the 'accept' (checkmark) button to save the change. Press
the cancel (X) button to discard changes and return to the previous menu.
Figure 2.52: IBOC Mode screen
IBOC Settings. When you select IBOC Settings from the Preset editing options screen (viewable
only when IBOC Mode is set to HD or FM+HD), you can edit various IBOC parameters (see
Figure 2.53).
Figure 2.53: IBOC Settings menu
Use the up and down buttons to scroll through the main audio menu options, then press the accept
(checkmark) or right arrow button to enter the selected editing screen. Figure 2.54 shows the editing
screens for the
IBOC Settings menu. Press the cancel (X) button to discard changes and return to the
previous menu.
