1. Bundled Software for the Server
Express5800/R320c-E4, R320c-M4, R320d-E4, R320d-M4 Installation Guide (Windows Server 2008)
139
Chapter 2 Installing Bundled Software

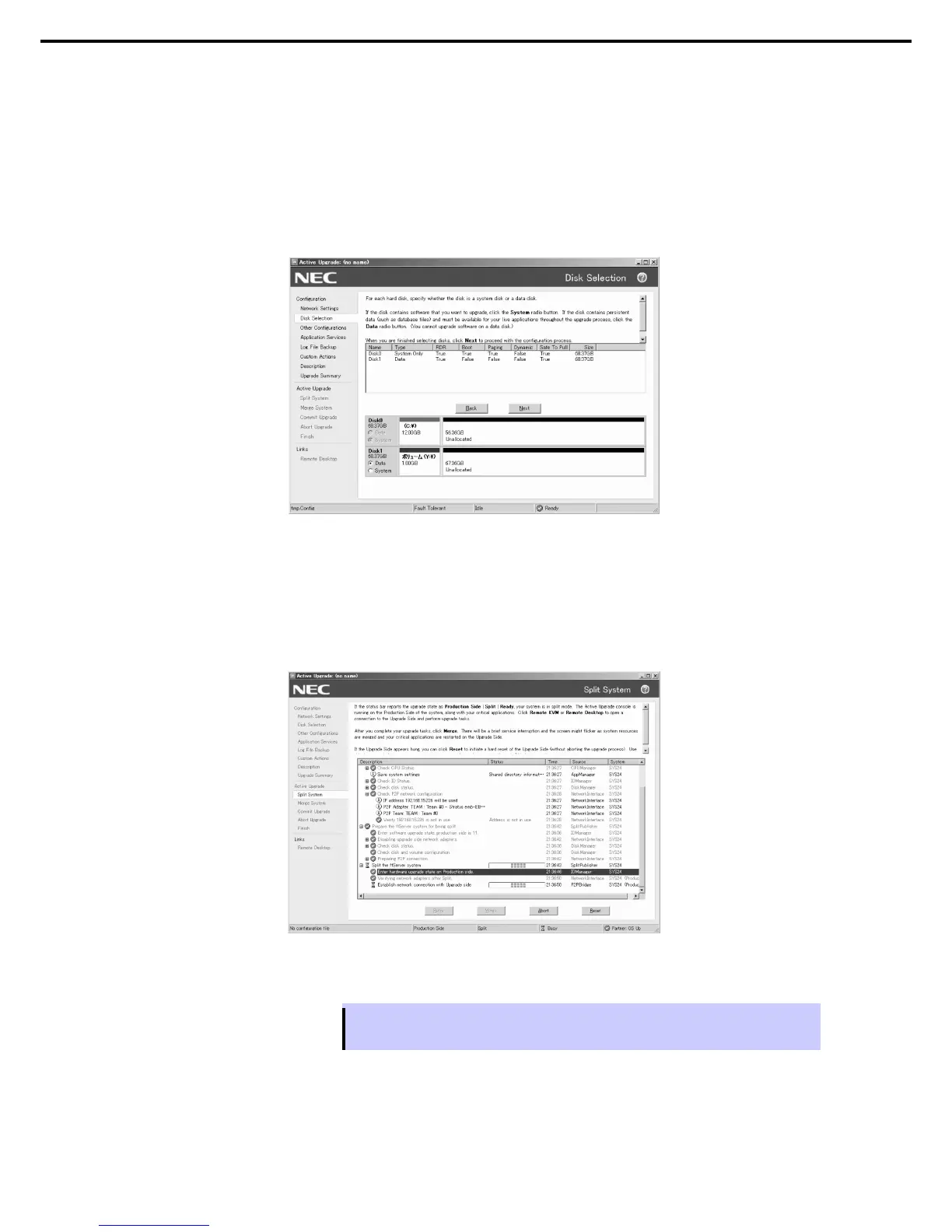

(c) Main Window
The main window allows you to configure and run the Active Upgrade process.
• Main Window: Configuring the Active Upgrade Process
During the configuration phase, main window allows you to specify settings for your system (see the figure
below),
The settings you have made can be saved in configuration file.
Main Window: Configuring the Active Upgrade Process
• Main Window: Activity Log
When you perform a readiness test and begin the upgrade process, the configuration settings in the main
window are replaced with an activity log (see the figure below) that allows you to track the progress and
success of the Active Upgrade process.
Main Window: Activity Log
Tips
For more information on viewing and interpreting items in the activity log, see Chapter 2
(1.5.4 (9) Viewing Active Upgrade Process Status).
