3. Setting Up Windows Server 2008 R2
Express5800/R320c-E4, R320c-M4, R320d-E4, R320d-M4 Installation Guide (Windows Server 2008)
3.1.2
Preparation
The following steps are required to prepare for re-installing an OS (setup with EXPRESSBUILDER or
Winodws standard installer):
1. If the POWER LED on CPU/IO module is on, shutdown the OS.
2. Unplug the power cord from outlet while the POWER LED is blinking.
3. Perform the preparation process for the server as shown below.
– Install CPU/IO modules 0 and 1.
– Install a hard disk drive in slot 0 of CPU/IO module 0.
– Disconnect all LAN cables.
– Disconnect the cable for tape device from the connector on SAS board.
– Disconnect the cable for device from the connector on Fibre Channel board.
Important
• Install only one hard disk drive in the slot specified here.
• If the hard disk drive is not a new one, physically format it. Refer to Chapter 3 (3.
SAS Configuration Utility) in Maintenance Guide for physical formatting.
4. Prepare for setup on CPU/IO module 0.

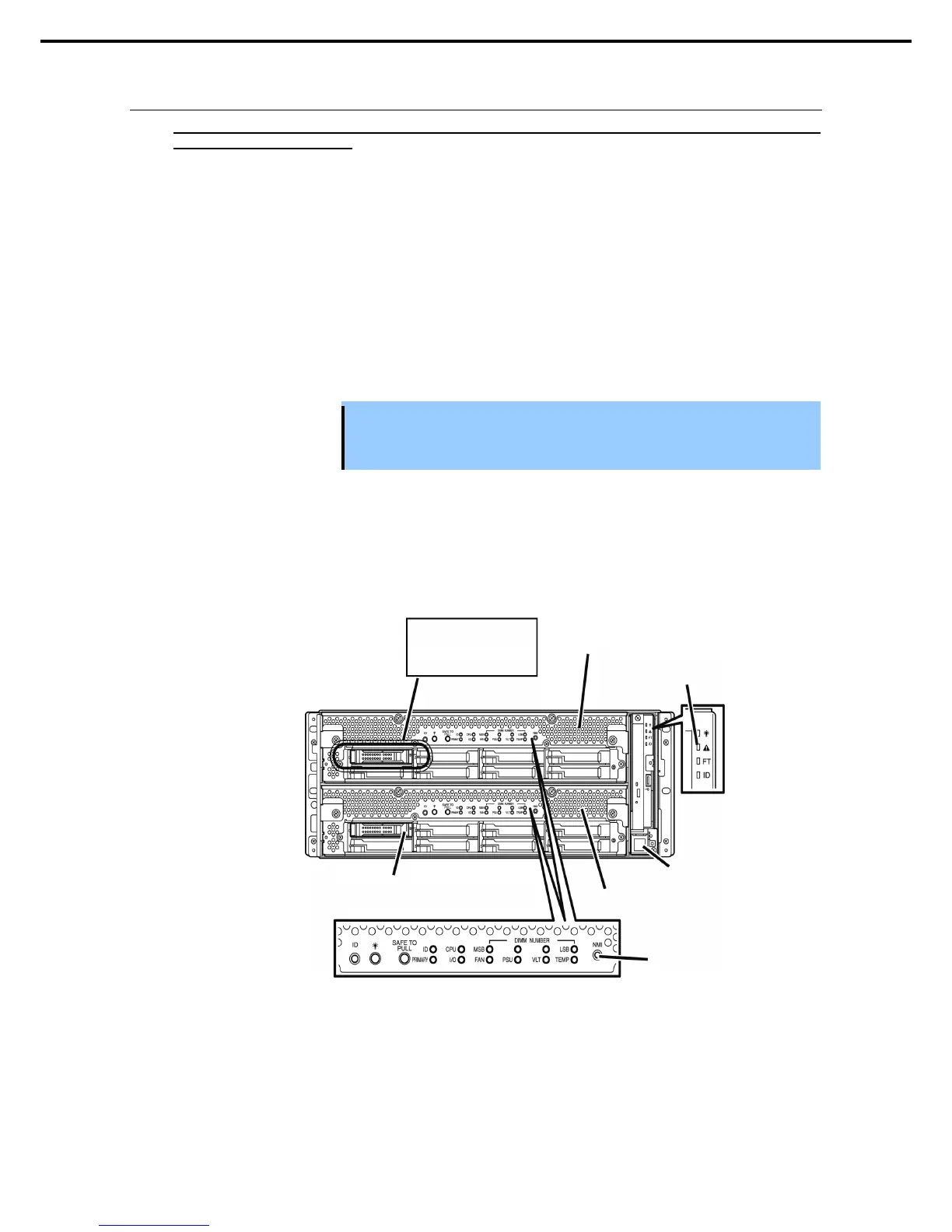

The location of components that are required for setup or confirmation is as shown in the figure below.
Install only one hard disk drive in CPU/IO module 0. Do not install any hard disk drive in CPU/IO module
1.
Install one hard disk drive
in this slot.
CPU/IO module 0
Status LED
POWER switch
CPU/IO module 1
DISK ACCESS LED
To Next Page
