3. Setting Up Windows Server 2008 R2
Express5800/R320c-E4, R320c-M4, R320d-E4, R320d-M4 Installation Guide (Windows Server 2008)

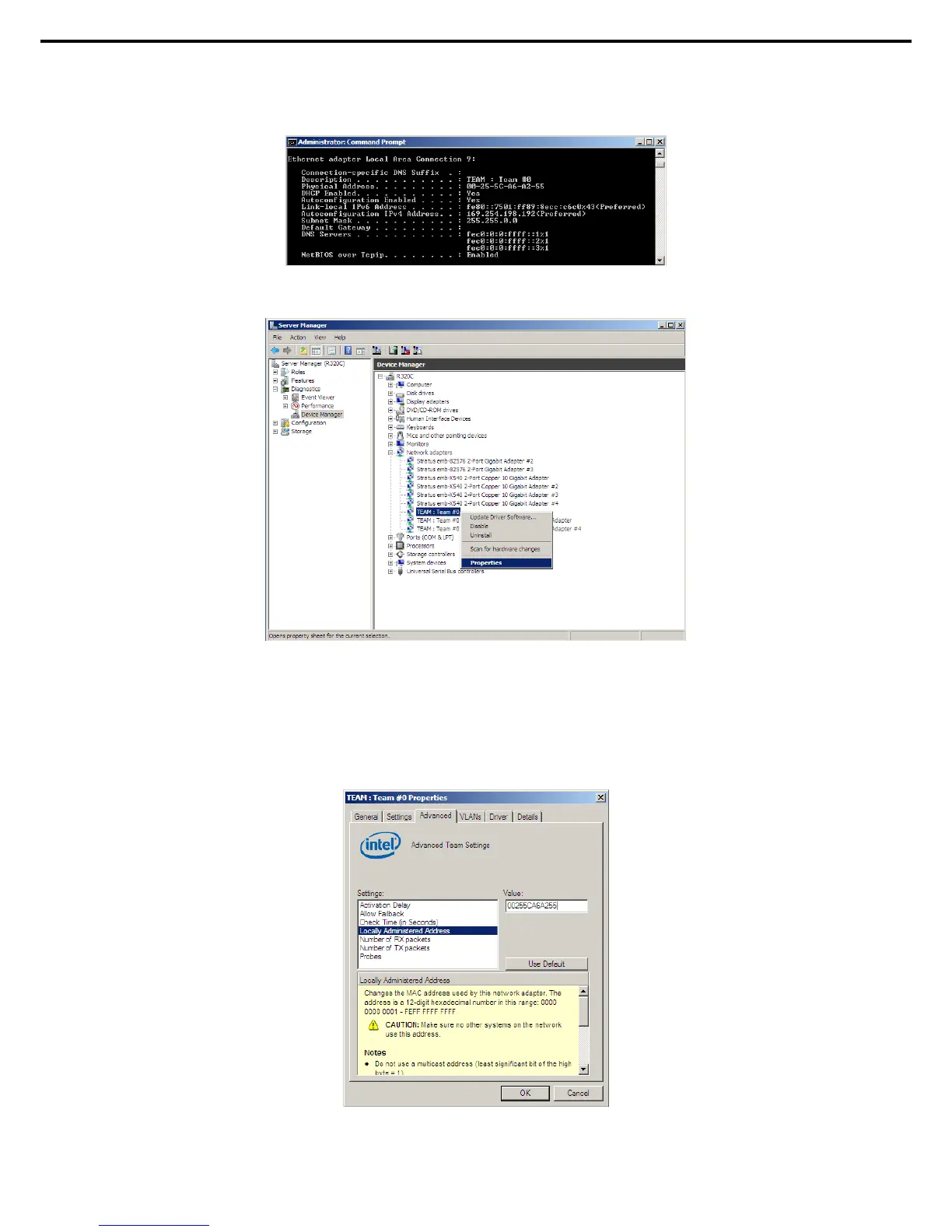

9. Start Command prompt and enter as follows to check the physical MAC address of team adapter.
> ipconfig /all
10. Select the Team Adapter you have set from Device Manager. Select Properties from the right-click
menu to open the properties dialog box.
11. Set the MAC address for Team Adapter as follows:
– Select the Advanced tab on the Properties dialog box. Select Locally Administered Address from
the Settings list box
– Enter the MAC address of a Team Adapter, which you have checked in Step 10 in the Value: text
box.
– Click OK.
To Next Page
