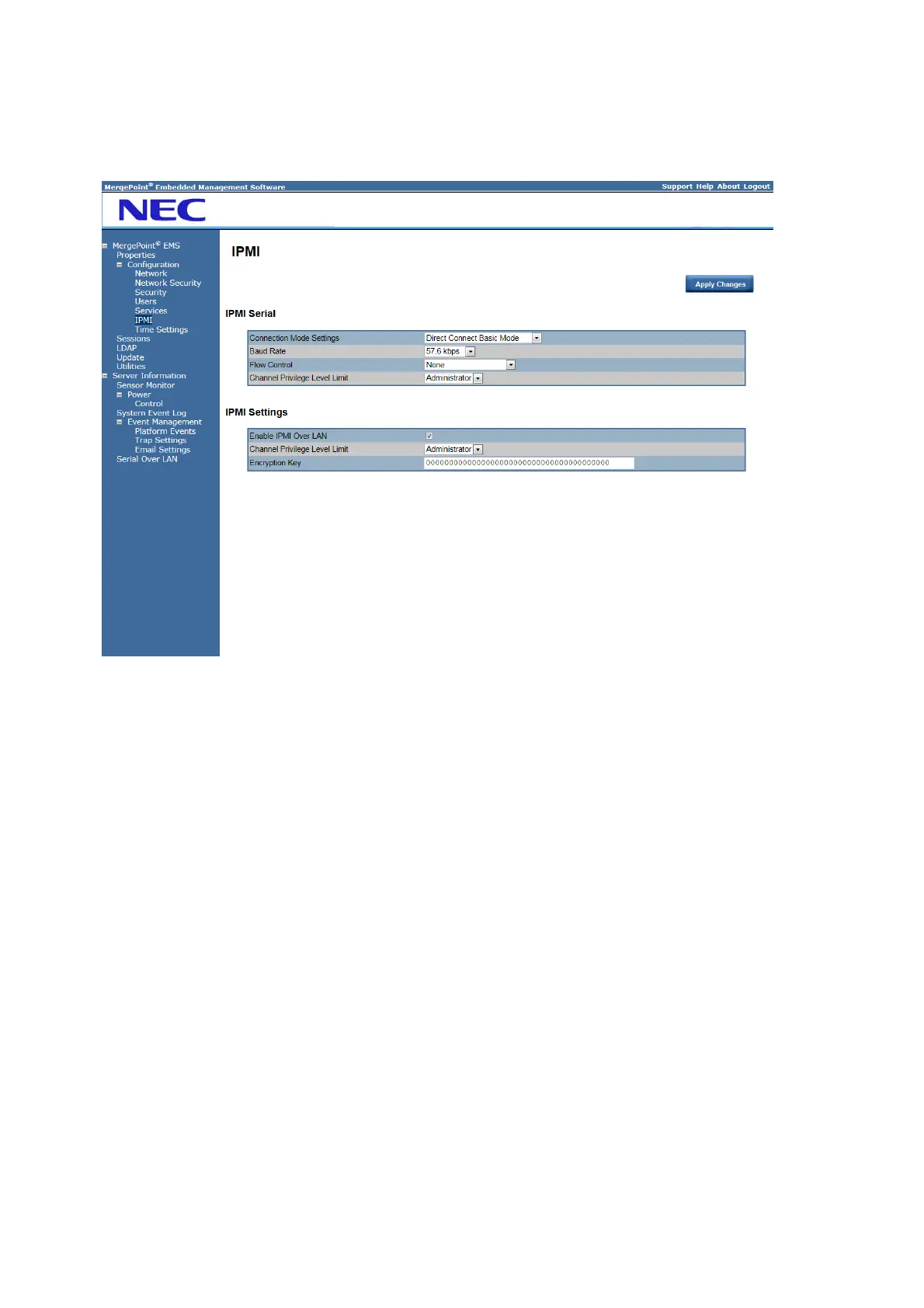

IPMI Settings

IPMI Settings provides remote configuration over LAN. To activate IPMI remote configuration by

LAN, check Enable IPMI Over LAN option, define the Channel Privilege Level Limit, and enter the

Encryption Key.

When you finish the configuration, click Apply Changes.
