SYSTEM CONFIGURATION GUIDE – NEC Express5800/R120h-2M
NEC Corporation Revision 5.0 – January 2018 25
7 PCI Riser Card /PCI Card
Up to three PCI riser cards can be installed in the system and 1st riser card is installed as standard. Up to three PCI cards can be
mounted on the 1st riser card, to be install four or more PCI cards, 2nd and 3rd PCI riser card is required. HDD cage is required for
HDD installation
Please refer to “Support PCI Cards and Installable Slots” with regards to the position of PCI slot

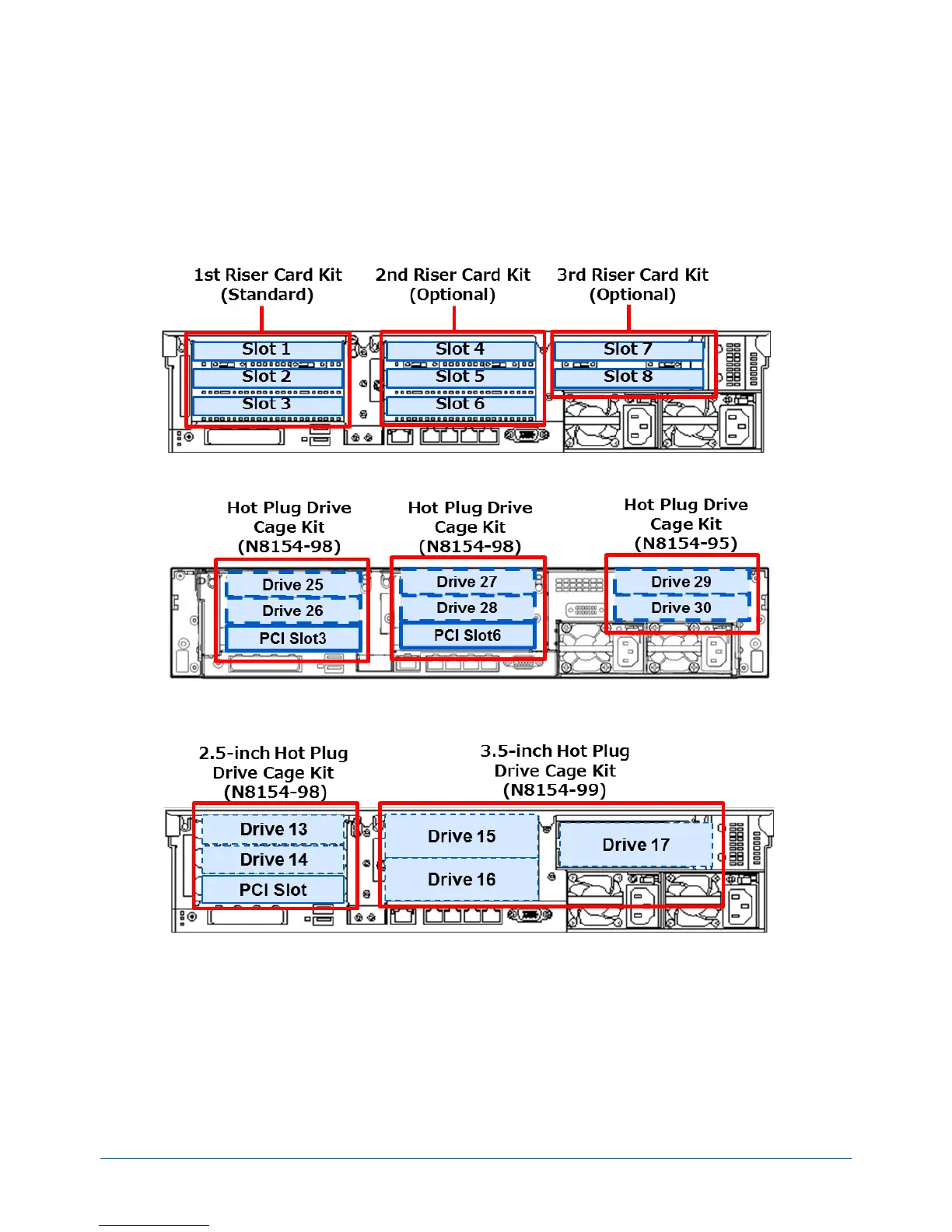

Rear Image (with PCI Riser only)
Rear Image (with 3x2.5”drive cage)
Rear Image (with 1x2.5”drive cage and 1x3.5” drive cage)
