SYSTEM CONFIGURATION GUIDE NEC Express5800/R120h-2M
NEC Corporation Revision 5.0 January 2018 41

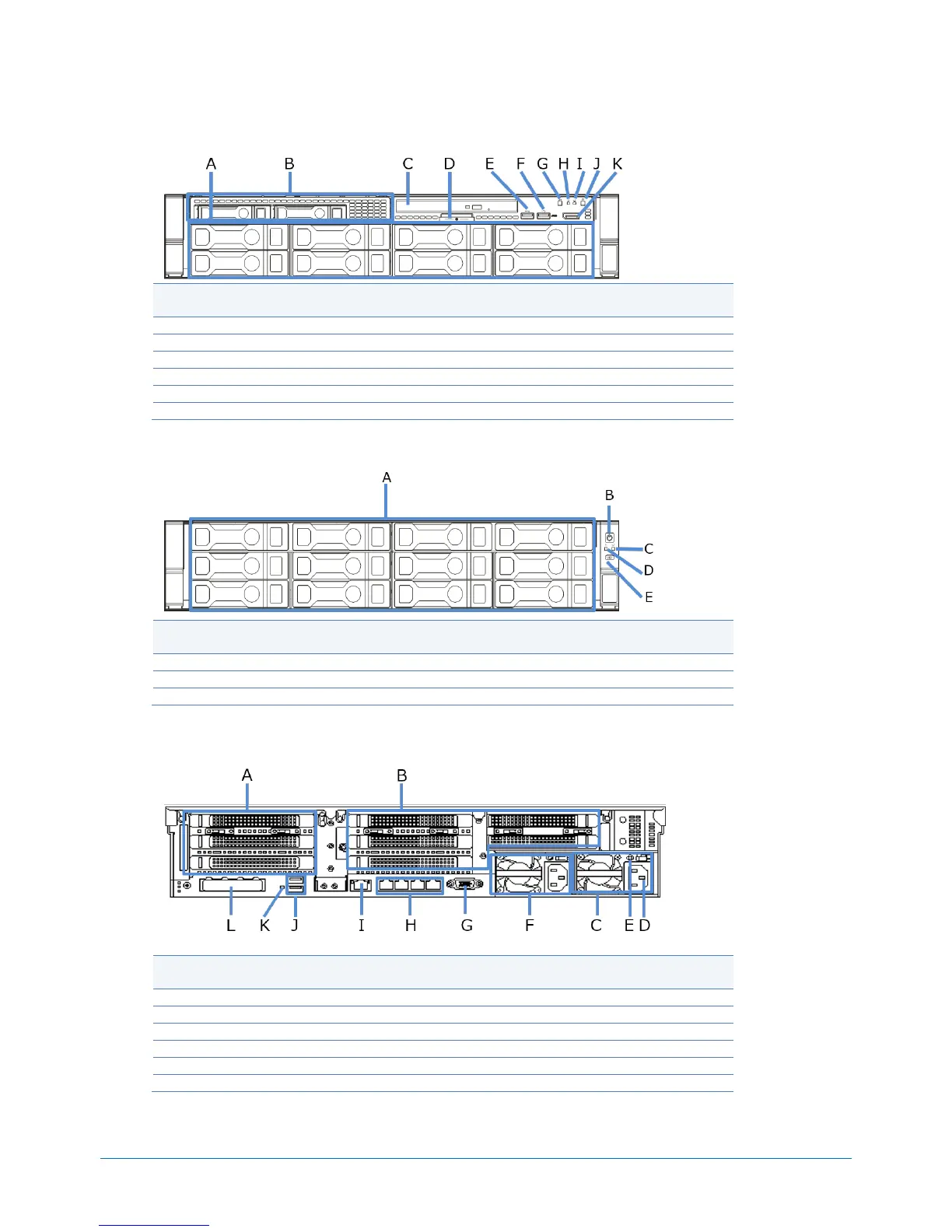

Front View for 8x 3.5-inch Drive Model
Legend
A.
3.5-inch Drive Bays
G.
UID button LED
B.
2.5-inch Drive Cage Bay
H.
Health LED
C.
Optical Drive Bay
I.
Network Link/Activity LED
D.
Pull-out Tab
J.
Power On/standby button/LED
E.
USB 3.0 Connector
K.
DisplayPort Connector
F.
iLO Service Connector
Front View for 12x 3.5-inch Drive Model
Legend
A.
3.5-inch Drive Bays
D.
Health LED
B.
Power On/standby button/LED
E.
UID LED Button
C.
Network Link/Activity LED
Rear View
Legend
A.
PCI Slots (Standard)
G.
VGA Connector
B.
PCI Slots (option)
H.
NIC Connectors 1-4 (1Gb)
C.
Power Supply
I.
Management Port
D.
AC Inlet
J.
USB 3.0 Connectors
E.
AC Power LED
K.
Rear UID LED
F.
Power Supply (optional)
L.
Flexible LOM (optional)
