SYSTEM CONFIGURATION GUIDE – NEC Express5800/R120h-2M
NEC Corporation Revision 5.0 – January 2018 9

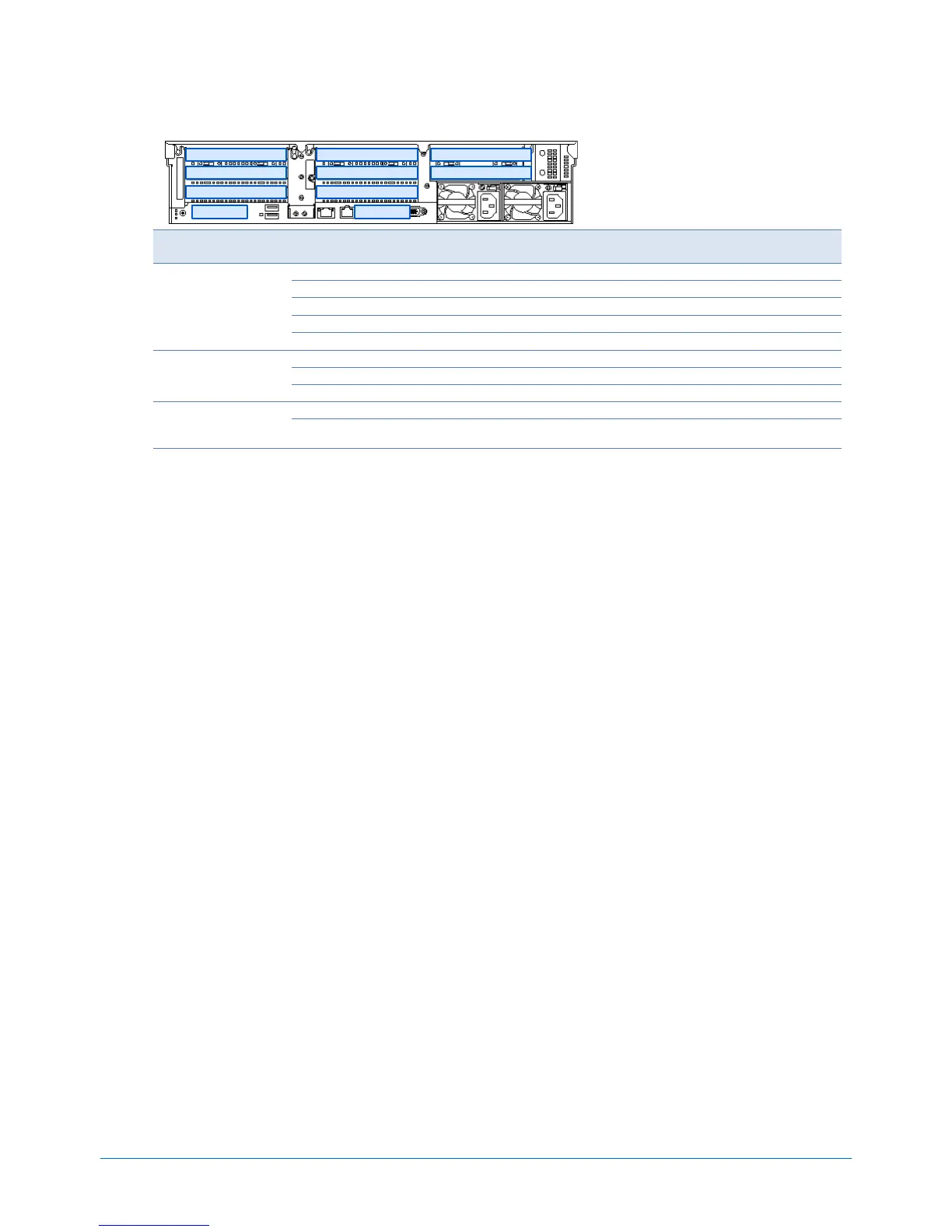

Expansion slot Map
Legend
Remarks
Standard Riser
LOM
PCIe 3.0 x8, x8 connector, for a dedicated LOM controller
RAID
PCIe 3.0 x8, x8 connector, for a dedicated internal RAID card
Slot 1
PCIe 3.0 x8, x8 connector, Full-height, Half-length
Slot 2
PCIe 3.0 x16, x16 connector, Full-height, Half-length
Slot 3
PCIe 3.0 x8, x8 connector, Full-height, Half-length
(Option)
Add N8116-62
2nd Riser Card
Slot 4
PCIe 3.0 x8, x8 connector, Full-height, Full-length
2CPU required
Slot 5
PCIe 3.0 x16, x16 connector, Full-height, Full-length
2CPU required
Slot 6
PCIe 3.0 x8, x8 connector, Full-height, Half-length
2CPU required
(Option)
Add N8116-81
3rd Riser Card
Slot 7
PCIe 3.0 x8, x8 connector, Full-height, Full-length
2CPU required
Slot 8
PCIe 3.0 x8, x8 connector, Full-height, Half-length
2CPU required
NOTE:
 By selecting PCI Riser Card, standard Riser can be exchanged and 2nd / 3rd Riser can be expanded. Refer to “7.1PCI Riser
Card” for available Riser Card and detailed specifications
Slot 1
Slot 2
Slot 3
Slot 4
Slot 5
Slot 6
Slot 7
Slot 8
LOM RAID
