References
External Views

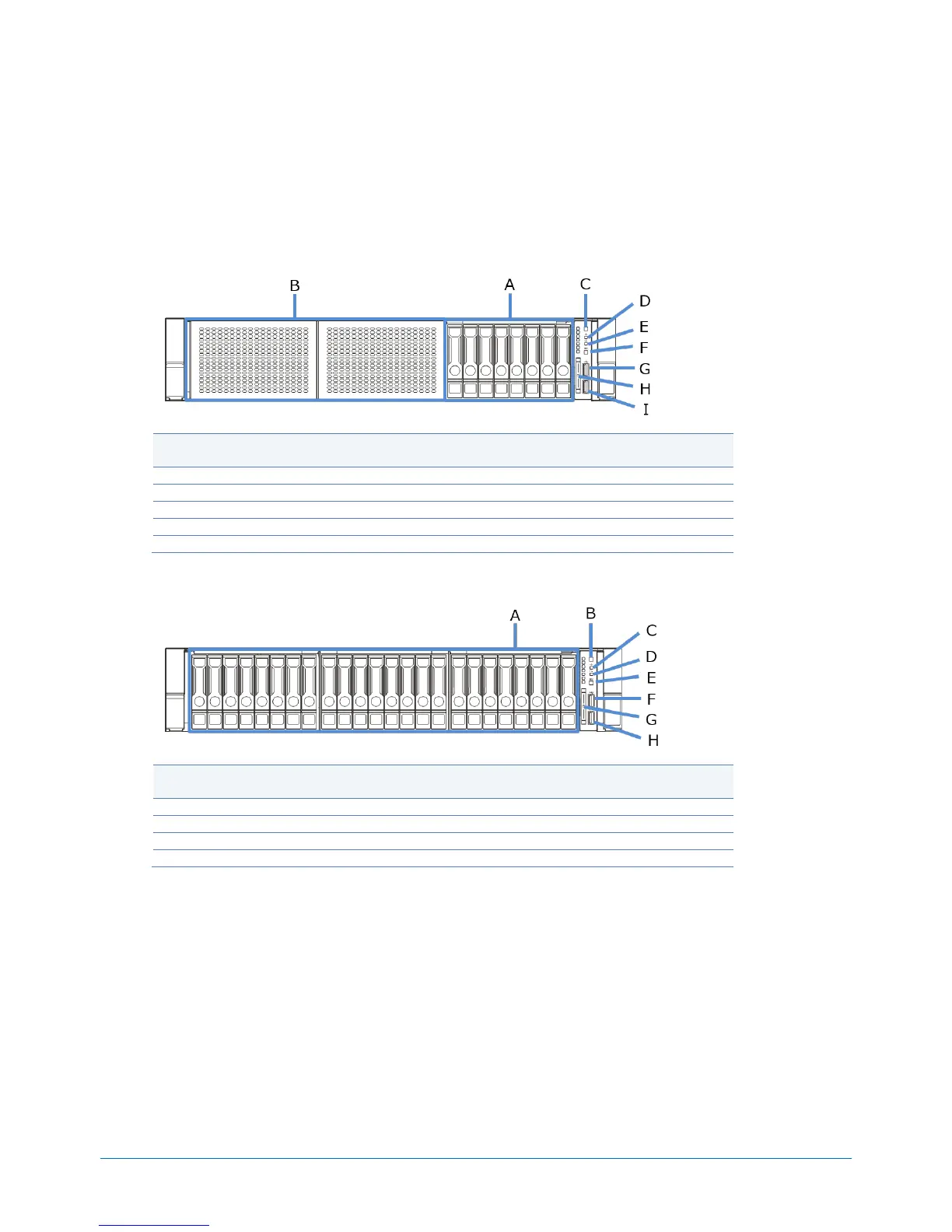

Front and Rear Views
Front View for 8x 2.5-inch Drive Model
Legend
A.
2.5-inch Drive Bays
F.
UID button/LED
B.
Drives or optical/video /USB (optional)
G.
iLO Service Connector
C.
Power On/standby button/LED
H.
Pull-out Tab
D.
Health LED
I.
USB 3.0 Connector
E.
Network Link/Activity LED
Front View for 24x 2.5-inch Drive Model
Legend
A.
2.5-inch Drive Bays
E.
UID button/LED
B.
Power On/standby button/LED
F.
iLO Service Connector
C.
Health LED
G.
Pull-out Tab
D.
Network Link/Activity LED
H.
USB 3.0 Connector
