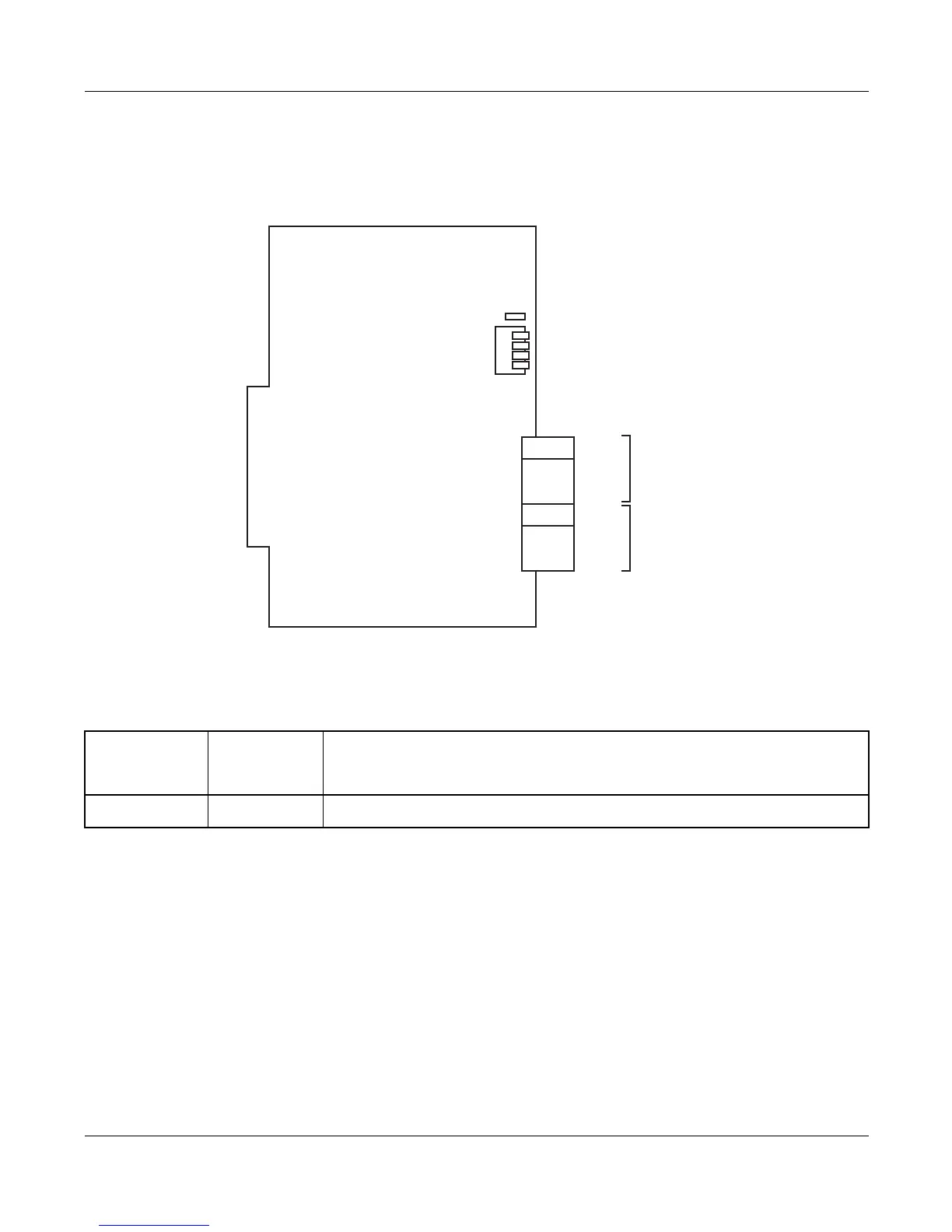

– 580 –
NWA-008841-001 Rev.5.
0
90ch3004.f
m
PN-16VCT
A/PN-1
6VCT
A-A (16VCT)
Locations of Lamps,
Switches, and Connectors
Lamp Indications
LAMP
NAME
COLOR
FUNCTION
BL0
Red
Remains lit when 0-15 chan
nels are busy
.
SW1
BL0
VCT1B
VCT1B/VCT0B:
To VCT1A/VCT0A Connector on
Another 16VCT Card
VCT0B
VCT1A
VCT0A
VCT1A/VCT0A:
To IP-PAD Card VCTB/VCTA Connecto
r
or
To VCT1B/VCT0B Connector on
Another 16VCT Card
PN-16VCTA/PN-16VCTA-A (16VCT)
595
597
Table of Contents
Default Chapter
11
Table of Contents
11
Safety Instructions
17
Specifications
21
Introduction
22
Purpose
22
Outline of this Manual
22
Reference Manual
23
Terms in this Manual
23
General Information
25
Chapter 1 General Information
26
Trunking Diagram
26
System Configurations
28
Floor Standing Installation
28
Wall Mounting Installation
31
19-Inch Rack Mounting Installation
32
Equipment Name and Function
33
Module/Installation Hardware
33
Control Card
36
Application Processor Card
39
Line/Trunk Card
46
Line Conditions of each Terminal
58
Mounting Conditions of Circuit Cards
61
Circuit Card Mounting Slots
61
Mountable Slots According to Number of Ports
63
Control Card Mounting Conditions
64
Application Processor Card Mounting Conditions
66
Line/Trunk Card Mounting Conditions
69
Installation
77
Chapter 2 Installation
77
Precautions
78
Grounding Requirements
78
Static Electricity Guard
79
Procedure for Unplugging/Plugging Circuit Cards
81
Turning Power on
85
Turning Power off
87
System Data Backup
87
Procedure
88
Stationary Equipment (for North America, Latin America, Australia)
90
Fixed Equipment 1 (for North America, Latin America, Australia)
90
Fixed Equipment 2 (for Asia, Africa, Europe, Middle East)
90
Unpacking
91
Wiring Power Cable to Terminals
92
AC120 V/240 V Power Supply System
92
-48 V DC Power Supply System
96
Installation of Main Equipment
98
Floor Standing Installation
98
Wall Mounting Installation
116
19-Inch Rack Mounting Installation
119
BUS Cable Connection
126
Power Cable Connection
127
AC120 V/240 V Power Supply System
127
-48 V DC Power Supply System
134
Supply Voltage Check and Heat Run Test
137
AC120 V/240 V Power Supply System
137
-48 V DC Power Supply System
141
Battery Connection
145
Internal Battery Connection
147
External / BATTM Battery Connection
150
Cable Running to Mdf
153
Installation of External MDF
153
MDF Cable
154
Cable Running to External MDF
157
Termination of Cables on Mdf
160
Cable Connection to MDF
160
Location of each LEN
161
LTC Connector Pin Arrangement
166
MDF Cross Connections
183
Installation of Peripheral Equipment
189
Peripheral Equipment and Card List
189
Analog C.O. Trunk (COT)
191
Tie Line Trunk (LDT/ODT)
192
DID Trunk (DIT)
201
Digital Trunk Interface (DTI)
202
Optical Fiber Interface (M10)
209
POTS Splitter (M13)
213
In-Skin HUB
217
Single Line Telephone (LC/LLC)
219
D Term /DSS Console (DLC)
221
Sn716 Deskcon (Dlc)
223
Sn708/709/712/741 Attcon (Dlc)
253
Day/Night Mode Change by External Key (DK/MP)
261
External TAS Indicator (DK)
262
Paging Equipment (COT and DK/MP)
265
External Tone Source/Announcement Machine (DK/TNT/MP)
268
External BGM Source (COT/TNT)
273
Power Failure Transfer (PFT)
275
Alarm Display Panel (MP)
280
Built-In SMDR/MCI on RS-232C (MP)
281
Built-In SMDR/PMS on IP (MP)
284
SMDR/PMS/MCI/CIS Printer/Hotel Printer (AP00)
285
Mounting Circuit Cards
291
System Initialization
293
All Clear, Except LEN000 CAT
293
Resident System Program
293
Chapter 3 Cat
294
Mat
295
Confirming Lamp Indication
295
System Data Entry
294
Operation Test
296
System Data Save
297
Cleaning and Visual Check
297
Cleaning
297
Visual Check
297
Mounting Front Cover
298
Backup Cpu System
299
Required Equipment
299
Service Conditions
300
Installation Procedure
301
Mounting Locations of MP Cards
302
MP System Changeover
303
Office Data Copy
304
Lamp Indications and Switch Settings
305
How to Read this Chapter
306
Control Card
307
Pn-Cp24-A/Pn-Cp24-B/Pn-Cp24-C/Pn-Cp24-D (Mp)
308
Pn-Cp27-A/Pn-Cp27-B (Mp)
314
Pn-Cp15 (Fp)
319
Pn-Pw00 (Extpwr)
321
Pz-M606-A (Ether)
323
Pz-Pw121 (Ac/DC Pwr)
325
Pz-Pw126 (Ac/DC Pwr)
328
Pz-Pw122 (DC/DC Pwr)
331
Pz-Pw135 (Pwr)
333
Application Processor Card
335
Pn-Ap00-B (Ap00)
337
Pn-Ap00-D (Ap00)
343
Pn-Ap00-B (Dbm)
349
Pn-Brta (Brt)
352
Pn-2Brtc (Brt)
357
Pn-2Brtk (Brt)
362
Pn-4Brta-A (Brt)
367
Pn-24Ccta (Cct)
375
Pn-30Ccta (Cct)
381
Pn-Cftc (Cft)
388
Pn-Cftc-A (Cft)
390
Pn-Daia-A (Daia)
392
Pn-Daib (Daib)
397
Pn-Daic (Daic)
401
Pn-Daid-A (Daid)
404
Pn-Daie (Daie)
410
Pn-Daif (Daif)
414
Pn-Dta/Pn-Dtb (Cch)
418
Pn-Dta (Cct/Dti/Prt)
423
Pn-Dtb (Cct/Dti/Prt)
430
Pn-24Dta-C (Dti)
437
Pn-30Dtc-C (Dti)
443
Pn-8Etia (Hub)
449
Pn-2Ilcc (Ilc)
451
Pn-8Ipta (Sip)
456
Pn-Iptb (Ipt)
460
Pn-24Prta (Prt)
464
Pn-30Prta (Prt)
472
Pn-4Rstb (Mfr)
479
Pn-4Rstc/Pn-4Rstc-A (Cir)
481
Pn-Sc00 (Cch)
483
Pn-Sc01 (Dch)
486
Pn-Sc03-B/Pn-Sc03-C (Csh)
489
Pn-Sc03-B (Ich)
491
Pz-M537 (Expmem)
493
Pz-M542 (Conn)
496
Pz-M557 (Conn)
498
Line/Trunk Card
500
Pn-2Ampa (Amp)
504
Pn-Cfta (Cft)
505
Pn-Cftb (Cft)
506
Pn-2Cotd (Cot)
507
Pn-2Cote (Cot)
508
Pn-4Cota-A (Cot)
509
Pn-4Cotb (Cot)
510
Pn-4Cote (Cot)
511
Pn-4Cotf (Cot)
512
Pn-4Cotg (Cot)
513
Pn-6Cotj (Cot)
514
Pn-8Coth (Cot)
515
Pn-8Cotq (Cot)
516
Pn-8Cotr (Cot)
517
Pn-8Cots (Cot)
518
Pn-8Cott (Cot)
519
Pn-8Cotu (Cot)
520
Pn-2Csia (Csi)
521
Pn-2Csia-A (Csi)
524
Pn-2Csih (Csi)
527
Pn-4Csia (Csi)
530
Pn-4Csia-A (Csi)
533
Pn-4Datc (Dat)
536
Pn-4Dida (Dit)
537
Pn-2Dita (Dit)
538
Pn-4Ditb (Dit)
539
Pn-Dk00 (Dk)
540
Pn-2Dlcn (Dlc)
541
Pn-4Dlcm (Dlc)
542
Pn-4Dlct (Dlc)
543
Pn-4Dlcq (Dlc)
544
Pn-8Dlcl (Dlc)
545
Pn-8Dlcp (Dlc)
546
Pn-2Ilca (Ilc)
547
Pn-8Ipla (Ip-Pad)
550
Pn-32Ipla (Ip-Pad)
553
Pn-32Ipla-A (Ip-Pad)
557
Pn-4Lcc (Lc)
561
Pn-4Lcd-A (Lc)
562
Pn-4Lce (Lc)
563
Pn-4Lcf (Lc)
564
Pn-4Lck (Lc)
565
Pn-4Lcl (Lc)
566
Pn-4Lcv (Lc)
567
Pn-4Lcw (Lc)
568
Pn-8Lcaa (Lc)
569
Pn-8Lcab (Lc)
570
Pn-8Lcad (Lc)
571
Pn-8Lcae (Lc)
572
Pn-8Lcaf (Lc)
573
Pn-8Lcak (Lc)
574
Pn-2Ldta (Ldt)
575
Pn-4Ldta (Ldt)
576
Pn-4Llcb (Llc)
577
Pn-M10 (M10)
579
Pn-M13 (M13)
581
Pn-2Odta (Odt)
582
Pn-2Odtb (Odt)
583
Pn-4Odta (Odt)
584
Pn-4Rstf/Pn-4Rstf-A (Sdt)
586
Pn-4Rsth (Sdt)
587
Pn-8Rstg (Pbr)
588
Pn-Rta (Rta)
589
Pn-Tnta (Tnt)
592
Pn-4Vcti (4Vct)
594
Pn-16Vcta/Pn-16Vcta-A (16Vct)
596
Pz-8Pftb (Pft)
598
Pz-M623 (Ether)
599
Pz-M649 (Dti)
600
Pz-M650 (Dti)
603
Pz-Vm00/Pz-Vm00-M (Vm00)/Pz-Vm10-M (Vm10)
606
Pz-Vm01 (Vm01)
609
Pz-Vm02 (Vm02)
610
Pz-Vm03-M (Vm03)
613
Pz-Vm04 (Vm04)
618
Pz-Vm05 (Vm05)/Pz-Vm06 (Vm06)
619
