NEC NEAX 2000 IPS Installation Manual

– 185 – NWA-008841-001 Rev.5.0
90ch2002.fm
DID Trunk (DIT)
• DID Trunk (PN-4DIT/PN-2DIT)

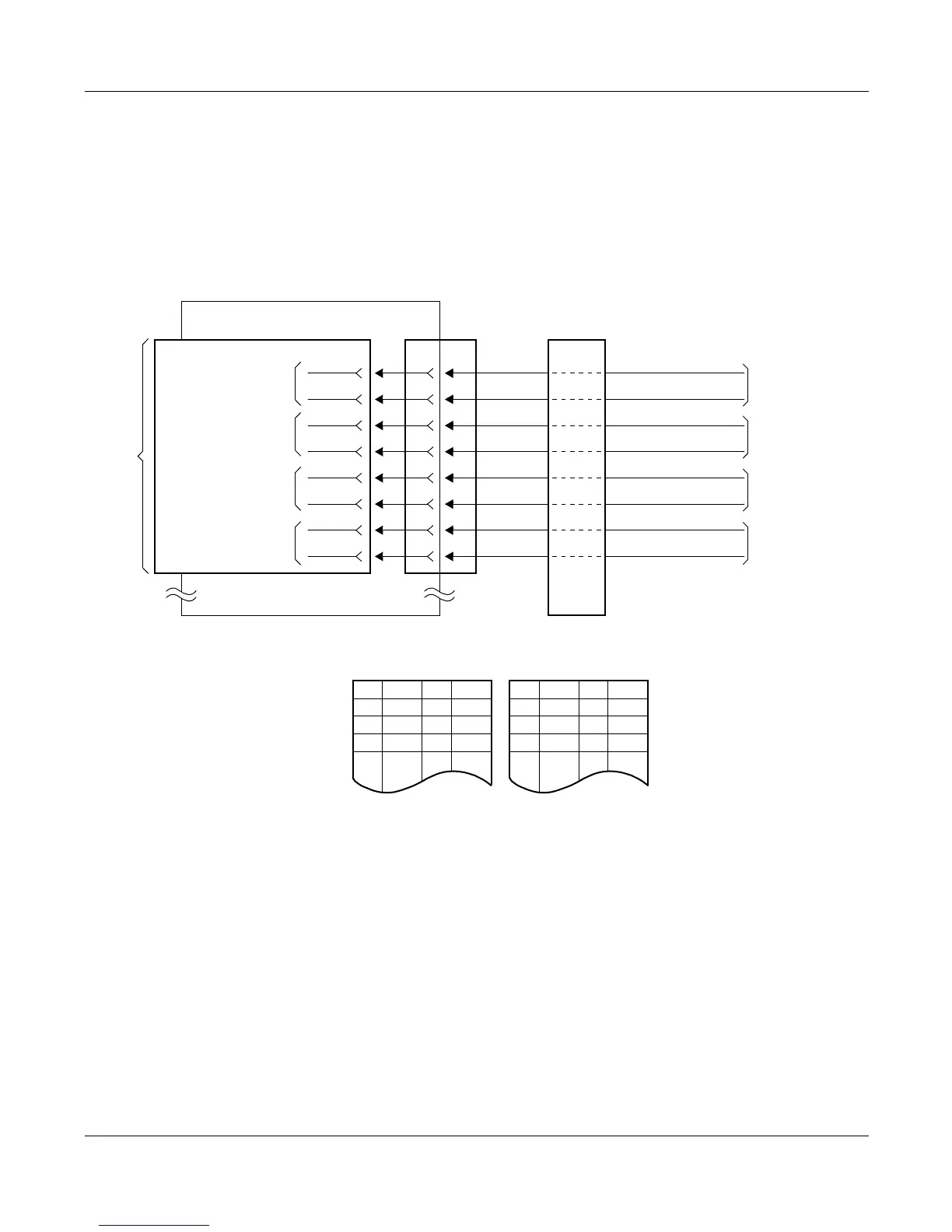

MDF Cross Connection for DID Trunk Card
29T3 29
4
R3 4
28
T2 28
3
R2 3
27
T1 27
26
T0 26
2
1
1R026T0
2R127T1
3R228T2
4R329T3
LTC0 (P)
26 T0 1 R0
27 T1 2 R1
28 T2 3 R2
29 T3 4 R3
LEN000
LEN001
LEN002
LEN003
LTC0 (J)
MDF
R0 1
R1 2
LEN000 (No. 0)
LEN001 (No. 1)
LEN002 (No. 2)
LEN003 (No. 3)
TO DID LINE
TO DID LINE
TO DID LINE
TO DID LINE
PIM0
PPN-4DIT
LT00
LTC0
J
DID Trunk (DIT)
