Built-in SMDR/MCI on RS-232C (MP)
The MP card provides two RS-232C interface ports for SMDR/MCI.
No.0/No.1 Port : Async.: 1200/2400/4800/9600/19200 bps
• Direct connection
Connect the SMDR terminal and/or the VMS to the RS0-RS1 port of the PN-CP24-A/CP24-B/CP24-
C/CP24-D card using the RS RVS-15(S) CA-A/RS RVS-4(S) CA-A/RS RVS-4(S) CA-C as shown
below.

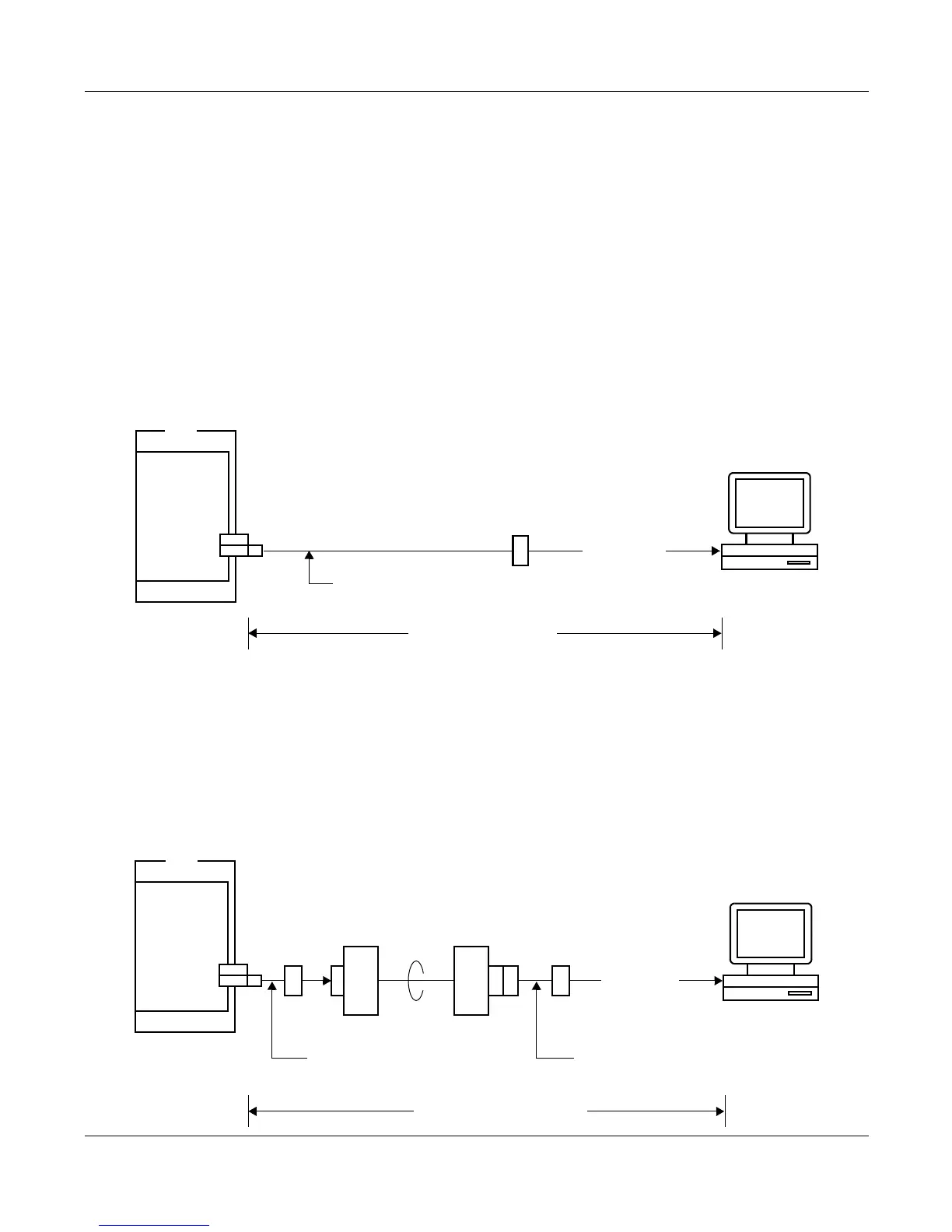

SMDR/MCI Terminal Direct Connection
• Connection via MODEM
When the cable length between the PBX and the terminal is more than 15 m (49.2 ft.), connect the
SMDR terminal and/or the VMS to the RS0-RS1 port of the PN-CP24-A/CP24-B/CP24-C/CP24-D
card through the MODEMs using the RS NORM-4(S) CA-A as shown below.
SMDR/MCI Terminal Connection via MODEMs
PN-CP24-A
RS 0
RS RVS-15(S) CA-A: 15 m (49.2 ft.)
PBX
MAXIMUM 15 m (49.2 ft.)
TO RS-232C
PORT (25pin)
SMDR0/SMDR1/
RS RVS-4(S) CA-A/RS RVS-4(S) CA-C: 4 m (13.1 ft.)
RS 1
MCI (VMS)
/CP24-B
/CP24-C
/CP24-D
PN-CP24-A
RS 0
PBX
MODEM
MODEM
2P
RS NORM-4 CA-A/
RS NORM-4S CA-A: 4 m (13.1 ft.)
MORE THAN 15 m (49.2 ft.)
MODEM INTERFACE
CABLE (STRAIGHT)
TO RS-232C
PORT
RS 1
SMDR0/SMDR1/
MCI (VMS)
/CP24-B
/CP24-C
/CP24-D
