FOX1024s Moving Light Controller. PAGE: 10
1~20 Numeric Key Totally 20 Numeric Keys, they will have different functions under different status.
Under Fixture selection status, they are Fixture Numeric Key.
Under GROUP status, they are Group Numeric Key.
Under PRESET status, they are Preset Numeric Key.
Under SCENE status, they are Scene Numeric Key.
Under “Light Show” status, they are “Light Show” Numeric Key.

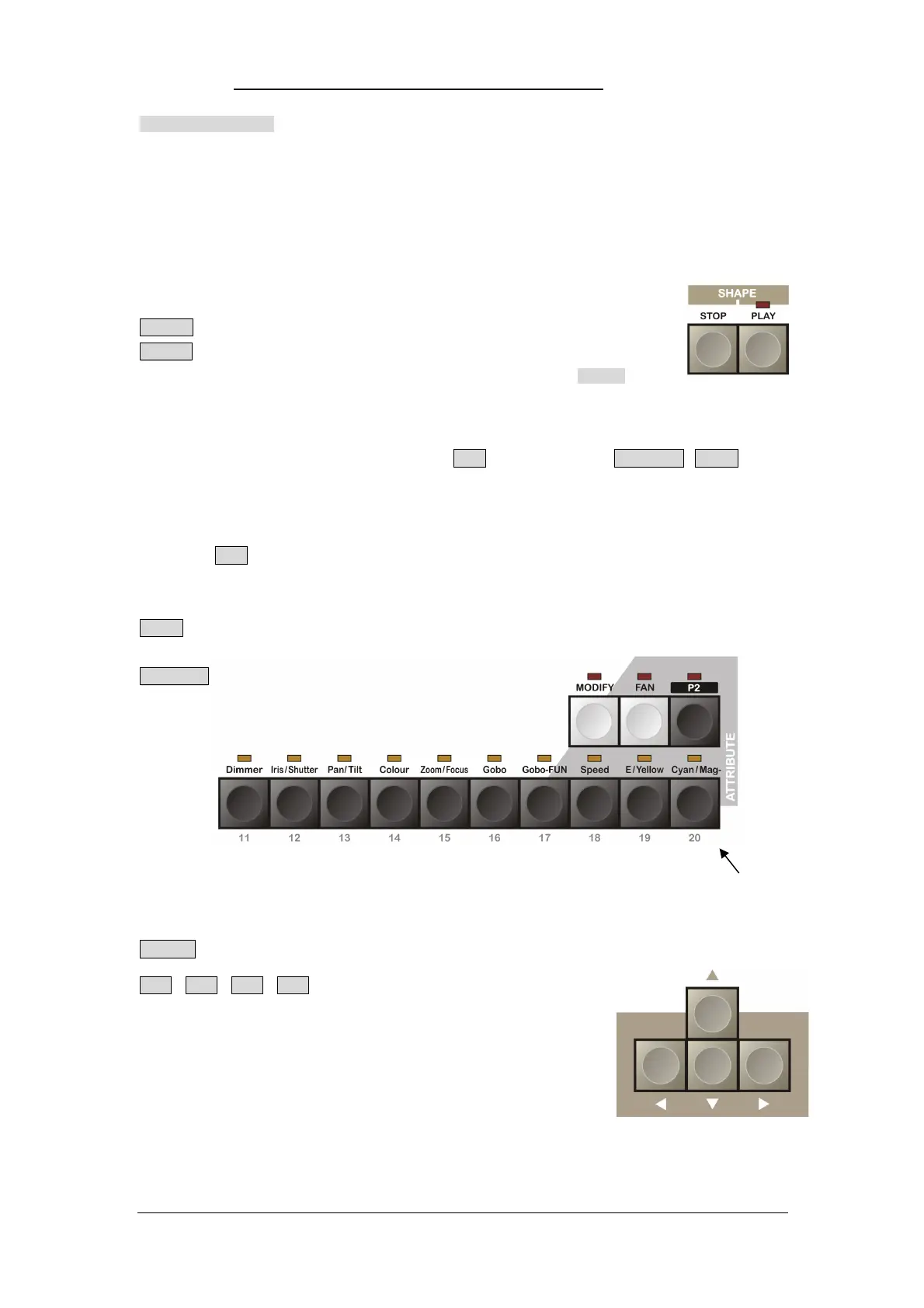

3.5 SHAPE Control Area
STOP － Suspend the current called SHAPE.
PLAY － Press once (indicator bright) to run the current called SHAPE.
Press one more time (indicator flashes) to enter SHAPE display.
3.6 Fixture Attribute Key
ATTRIBUTE area contains 10 attribute keys, P2 attribute page key, MODIFY , FAN .
Attributes---such as Dimmer, Colour, Gobo etc. Attributes can be selected by Attribute Key,
modified by Wheel A/B.
The 10 Attribute Keys correspond to the attribute names above.
Press P2 (indicator bright) to switch to Attribute Page 2, then the Attribute Keys will become
No.11~20 Attribute Keys. One Key controls 2 attributes, so the console can control totally 40 attributes.
FAN －Used to spread the attribute value of selected fixtures to gain the gradual change effect of
attribute value among fixtures.
MODIFY －Relative change function of attributes.
3.7 LCD Display, Wheel A/B, Edit Area
LCD Display Control
BACK : Used to return to previous layer menu.
F1 F2 F3 F4 Soft Keys:
The controllable contents depend on the current menu page,
different menu pages different function;
Cursor Key (shown as right)
1. Left/Right Key is used to select the items on left/right;
2. Up/Down Key is used to modify the numerical value of the selected items.
Wheel A/B: There are 2 wheels (A/B), the control contents depend on the items displayed in the menu.
If there is no corresponding display, the Wheel can modify the selected Menu Item.
Fixture Attribute Key
