Netafim NMC-JUNIOR PRO - 4.2 Output Terminals

NMC-Junior Pro Installation Manual
Page 19
ELECTRICAL INSTALLATION
4.2 Output Terminals

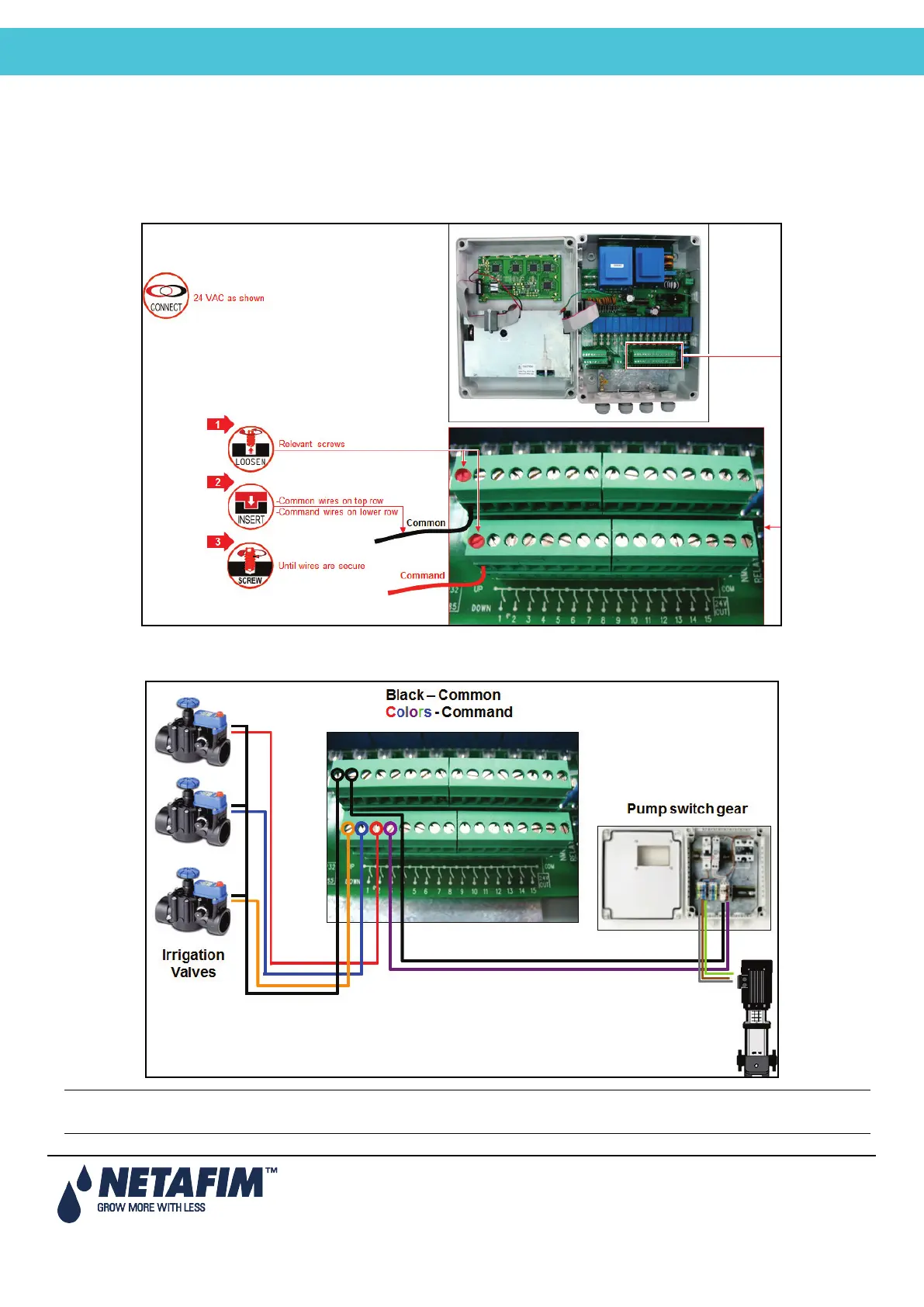

• Output Terminal Wiring
• Example of Output Wiring
4.2.1 Output Terminal Wiring
4.2.2 Example of Output Wiring

Note: Before switching the controller on, the technician should verify that there is no short circuit on each output.
(Resistance test)
