Netafim NMC-JUNIOR PRO - Digital Input Examples

NMC-Junior Pro Installation Manual
Page 21
ELECTRICAL INSTALLATION

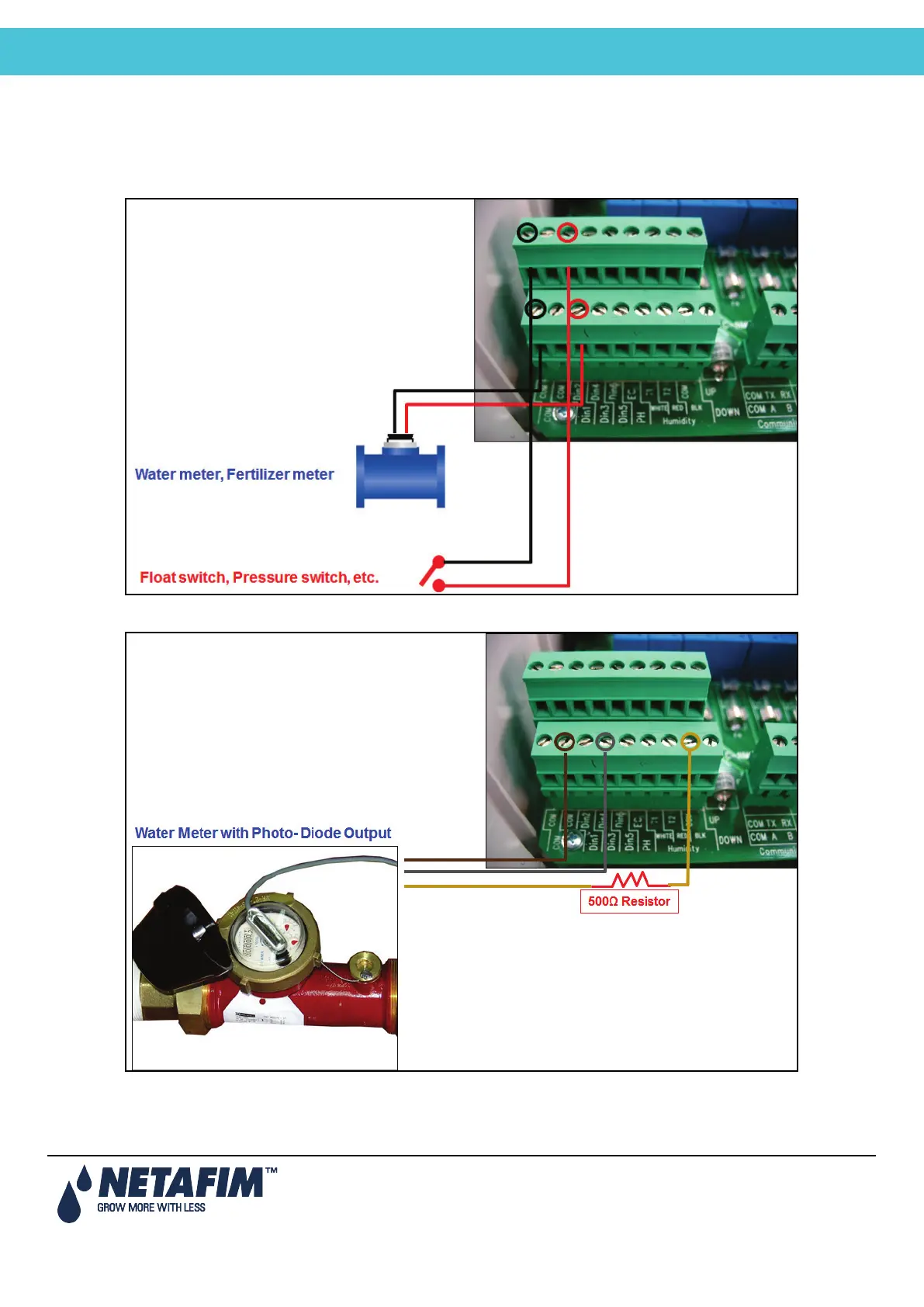

4.3.2 Digital Input Examples
• Example A

Digital input 1: Water meter, Fertilizer meter

Digital input 2: Float switch, Pressure switch

Digital Input 3: Water Meter with Photo-Diode Output
