NMC-Junior Pro Installation Manual
Page 25
ELECTRICAL INSTALLATION

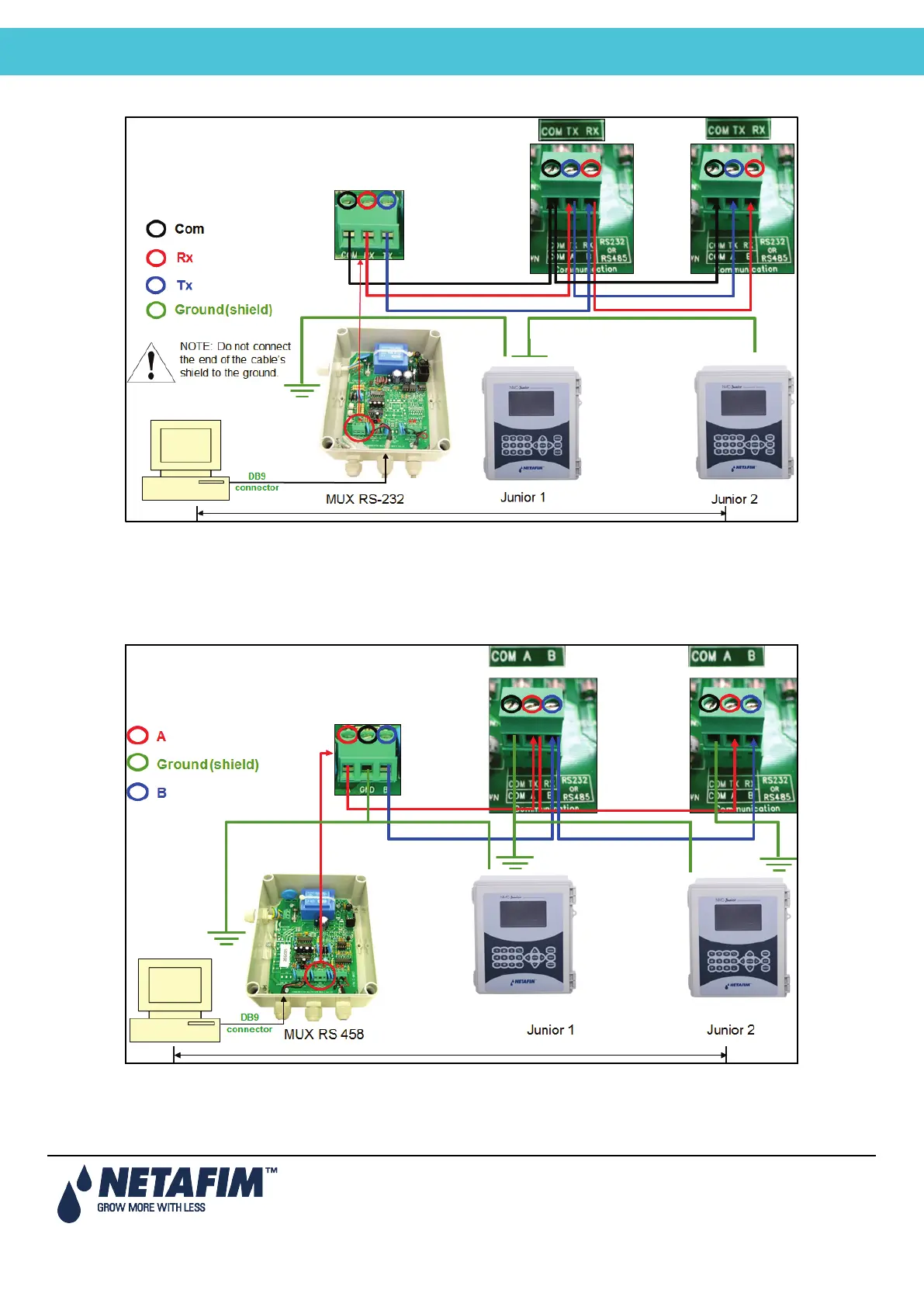

4.4.2.1 Option A: RS-232 Setup
• Use 3 wire shielded communication cable
• Do not connect the end of the cable’s shield to the ground.
• Refer to 4.4.2.3Communication Distance and Baud Rate.
4.4.2.2 Option B: RS-485 Setup
• Use 2 wire shielded communication cable.
• Do not connect the end of the cable’s shield to the ground.
• Refer to 4.4.2.3Communication Distance and Baud Rate.
