16 E2600 Controller-Drive Tray Installation Guide

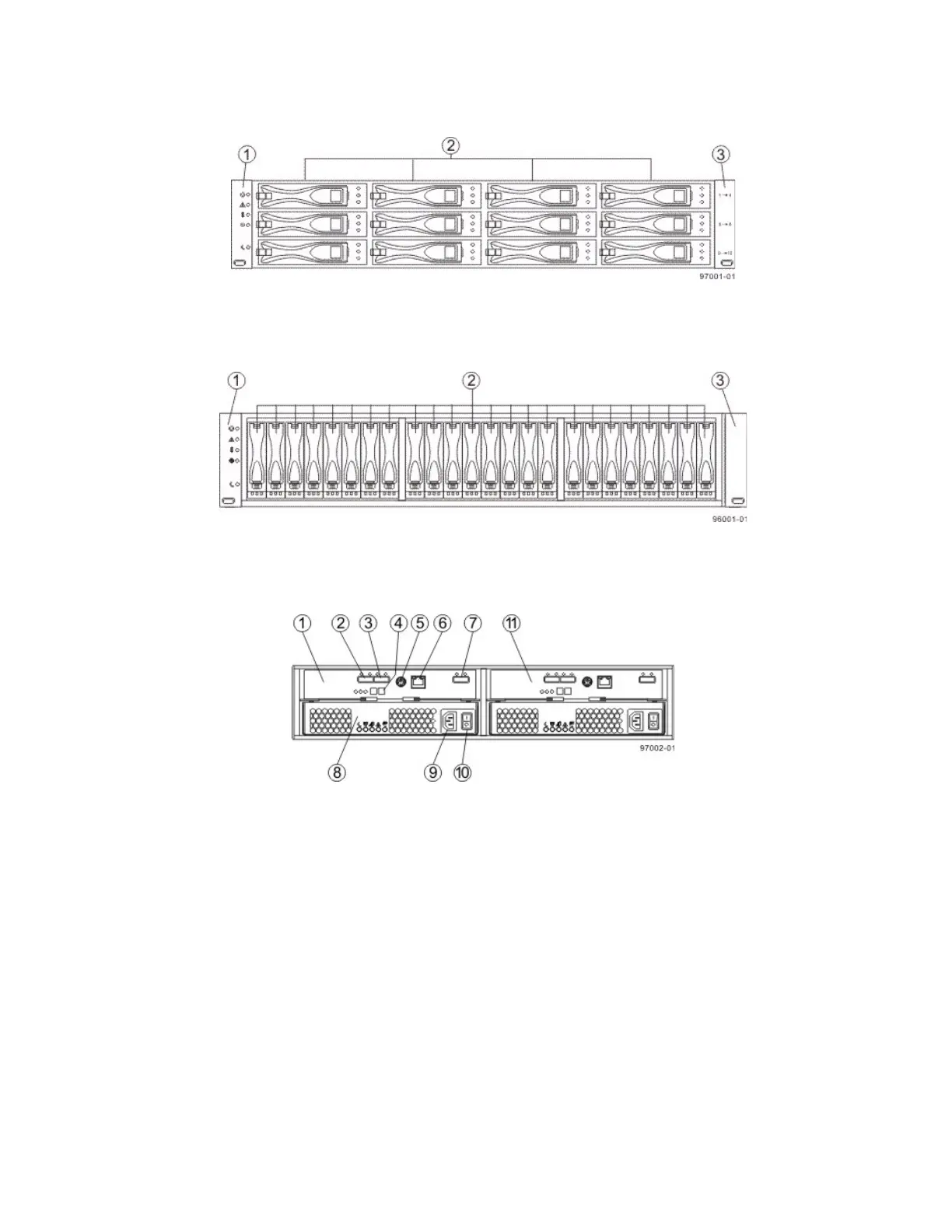

Figure 13 DE1600 Drive Tray – Front View
1. Left End Cap (Has the Drive Tray LEDs)
2. Drives
3. Right End Cap
Figure 14 DE5600 Drive Tray – Front View
1. Left End Cap (Has the Drive Tray LEDs)
2. Drives
3. Right End Cap
Figure 15 DE1600 Drive Tray or DE5600 Drive Tray with AC Power Option – Rear View
1. ESM A Canister
2. Host Connector 1
3. Host Connector 2
4. Seven-Segment Display Indicators
5. Serial Connector
6. Ethernet Connector
7. Expansion Port SFF-8088 Connector
8. Power-Fan Canister
9. Power Connector
10. Power Switch
11. ESM B Canister
